In Win R400-01N 8P 4U Rackmount Case

Case

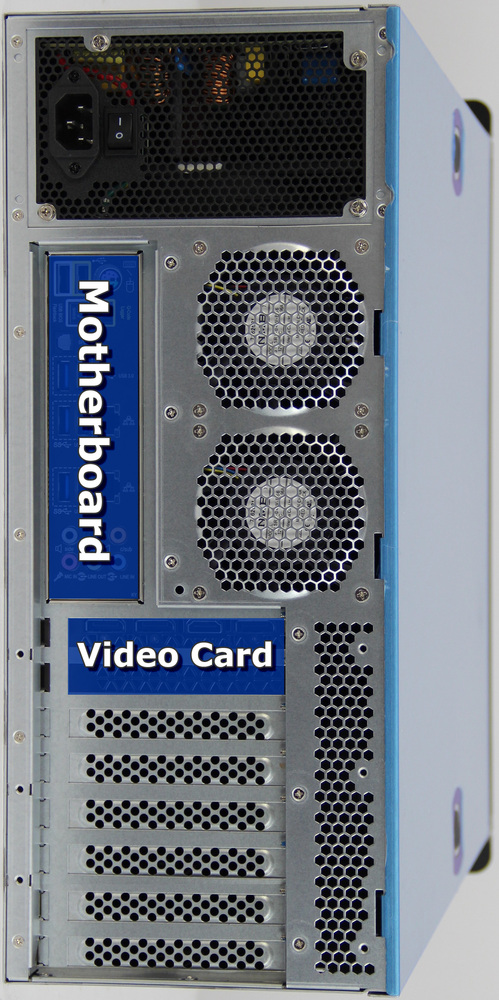

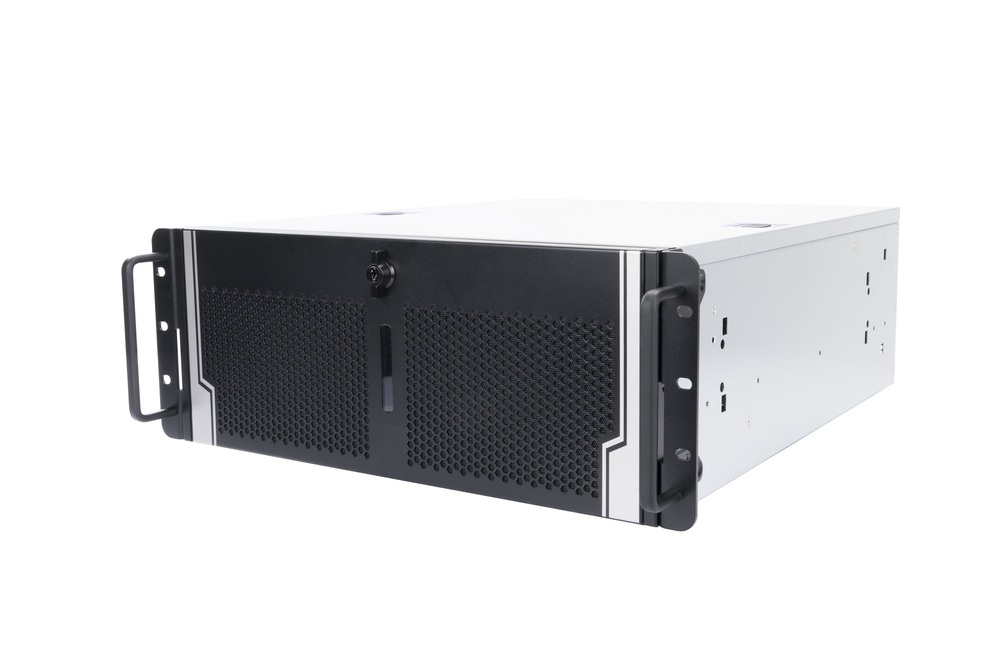

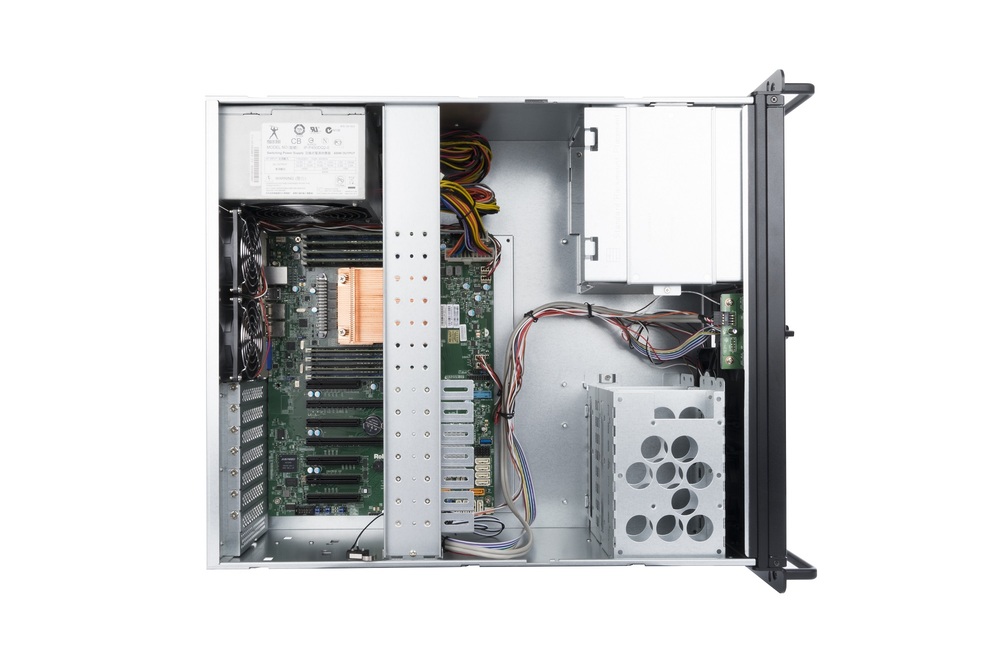

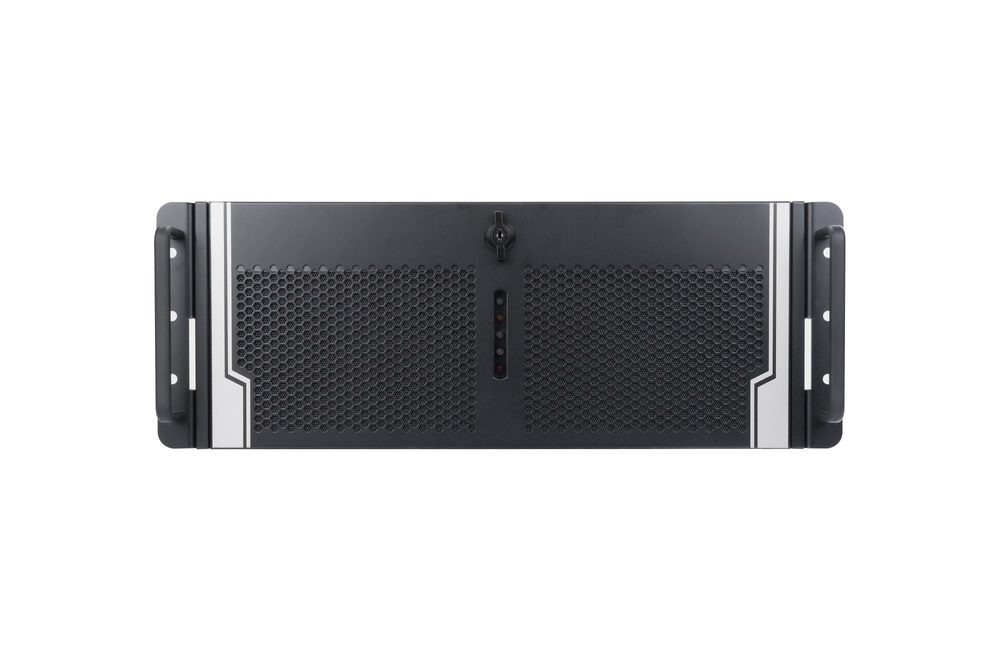

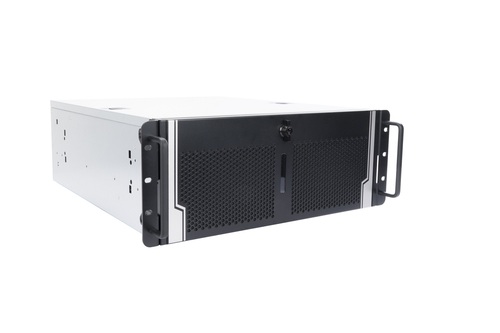

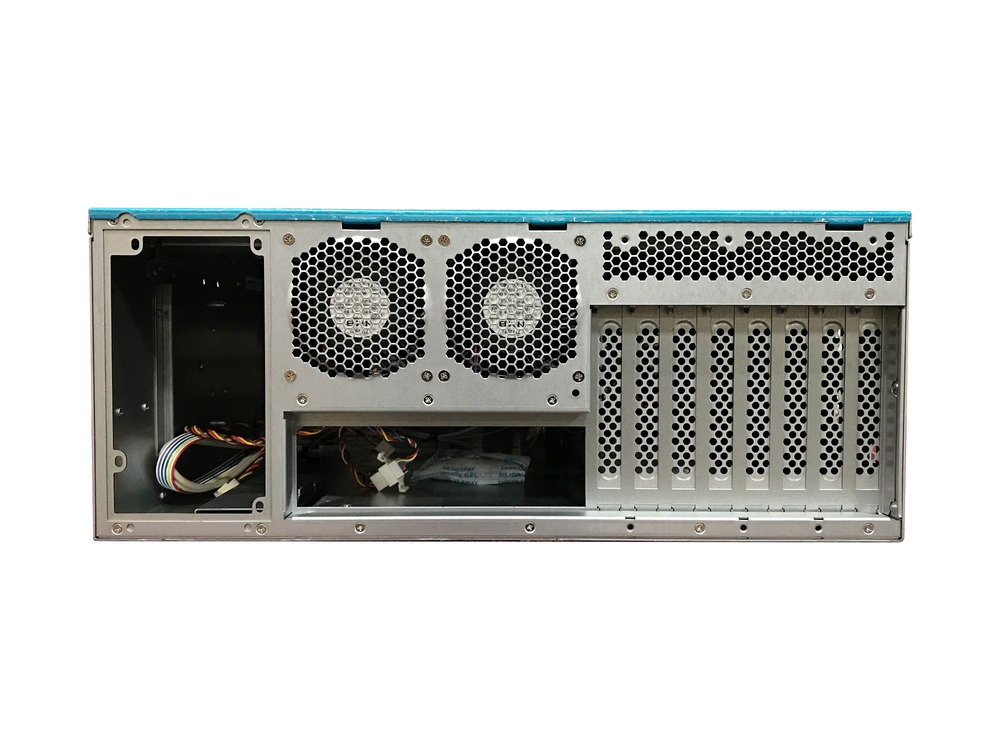

In Win R400-01N 8P 4U Rackmount Case Picture 44821In Win R400-01N 8P 4U Rackmount Case Picture 44822In Win R400-01N 8P 4U Rackmount Case Picture 44823In Win R400-01N 8P 4U Rackmount Case Picture 44824In Win R400-01N 8P 4U Rackmount Case Picture 44825In Win R400-01N 8P 4U Rackmount Case Picture 44826In Win R400-01N 8P 4U Rackmount Case Picture 44827
This 4U rackmount chassis from IN WIN can house up to EEB / Extended ATX size boards, allowing both single- and dual-CPU configurations. It offers a lot of expansion room as well, and supports up to four 80mm fans.

Model: InWin IW-R400-01N.8P

Specifications

Color Silver & Black
Material Steel
Type/Size 4U Rackmount
Maximum Motherboard Size SSI
Case Window No
Power Supply None
Dimensions
Height 178 mm (7.0 in)
Width 482.6 mm (19.0 in)
Depth 525 mm (20.7 in)
Net Weight 12.3 kg (27.1 lbs)
Drive Bays
External 5.25 inch 3
External 3.5 inch 1
Internal 3.5 inch 4
Internal 2.5 inch 1
Front Panel Connectors
USB 2.0 2
USB 3.0 0
Firewire 0
Audio In 0
Audio Out 0
eSATA 0
Cooling System
Cooling Method Air
Included Fans x4 80mm PWM Fan

Features

  • Compatible Rails:
    - SR1-23
    - SR1-23N
    - SR2-28
