Puget Systems Acrylic Enclosure for NVIDIA Jetson TX1

Case

Puget Systems Acrylic Enclosure for NVIDIA Jetson TX1 Main Picture


Puget Systems Acrylic Enclosure for NVIDIA Jetson TX1 Picture 38201Puget Systems Acrylic Enclosure for NVIDIA Jetson TX1 Picture 38202Puget Systems Acrylic Enclosure for NVIDIA Jetson TX1 Picture 38203Puget Systems Acrylic Enclosure for NVIDIA Jetson TX1 Picture 38204Puget Systems Acrylic Enclosure for NVIDIA Jetson TX1 Picture 38205

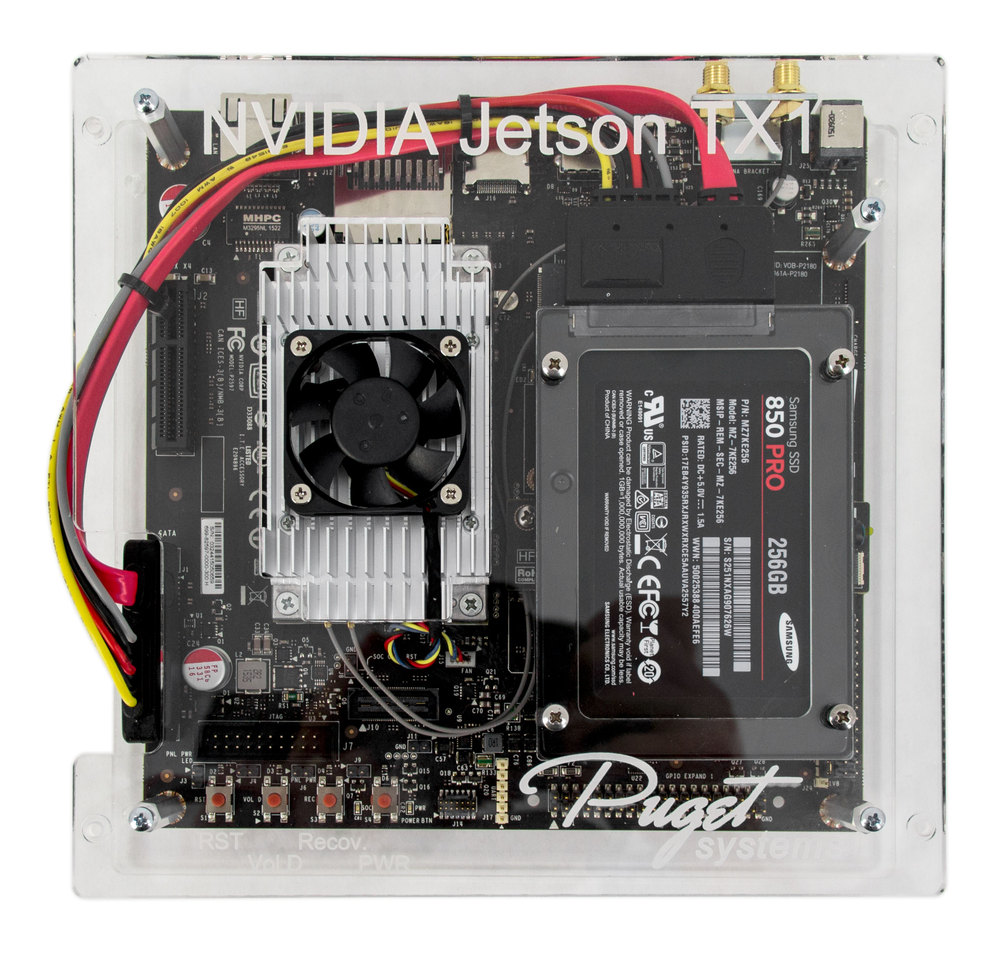

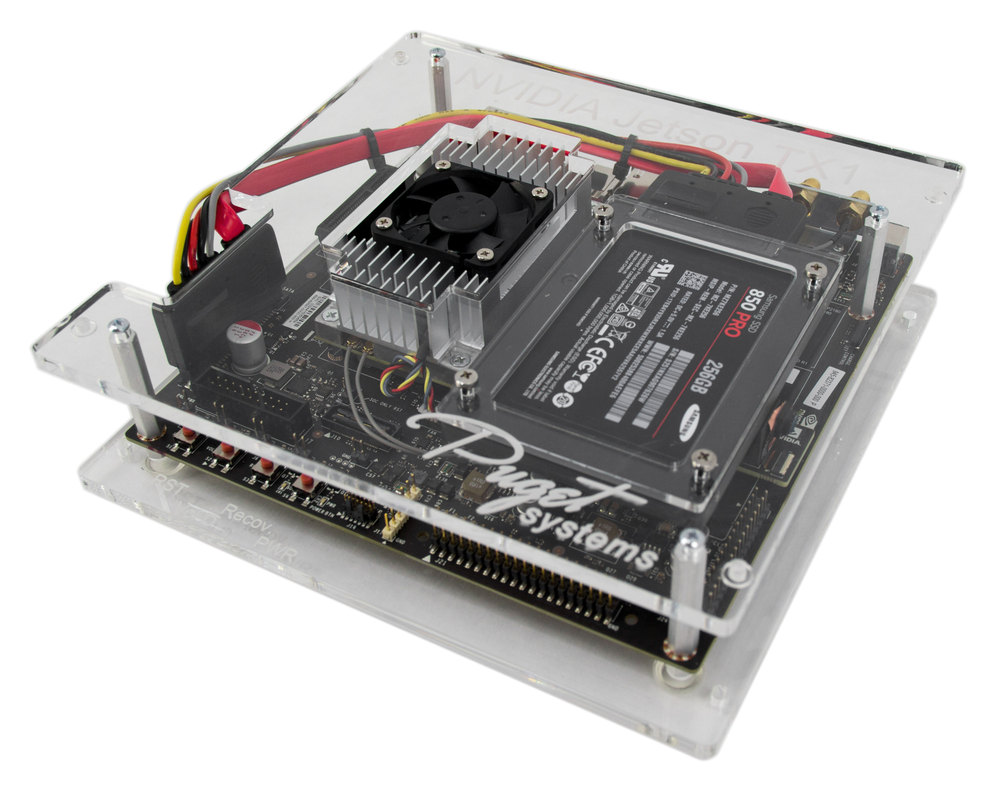

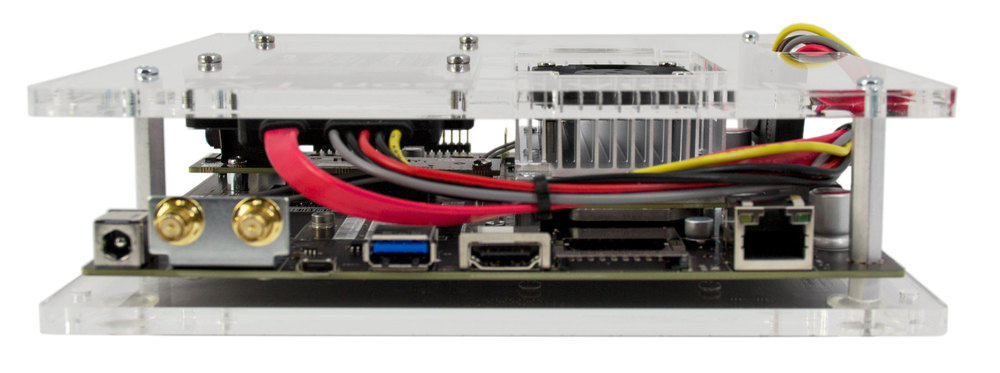

This simple case for the NVIDIA Jetson Tegra X1 board is great for providing basic protection while still allowing full access to the many i/o ports and connectors on the board. It is made from nicely laser-cut and etched acrylic, and is simple to assemble or dis-assemble.

Model: Puget Systems JetsonTX1_Enclosure

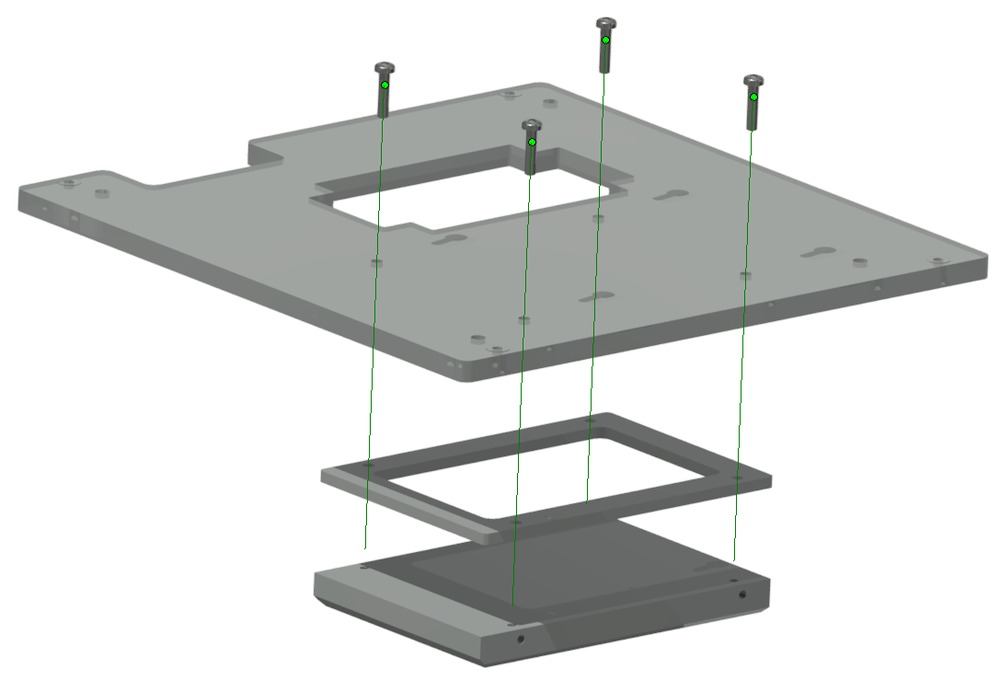

Includes mount points for a single 2.5inch 7mm hard drive on the top of the chassis using a SATA power/data extension cable.

Included components:
Bottom acrylic panel
Top acrylic panel
4x .25 inch #6-32 standoffs (for under the Jetson TX1 board)
4x 1.125 inch #6-32 standoffs (for on top of the Jetson TX1 board)
4x Thin acrylic spacer (between Jetson TX1 board and 1.25 inch standoffs)
4x .375 inch #6-32 screws (for securing the top panel to the 1.25 inch standoffs)
1x Acrylic SSD spacer
4x 12mm M3x0.5 screws (for mounting an SSD)
1x 12inch SATA power/data extension cable
4x .5 inch rubber feet

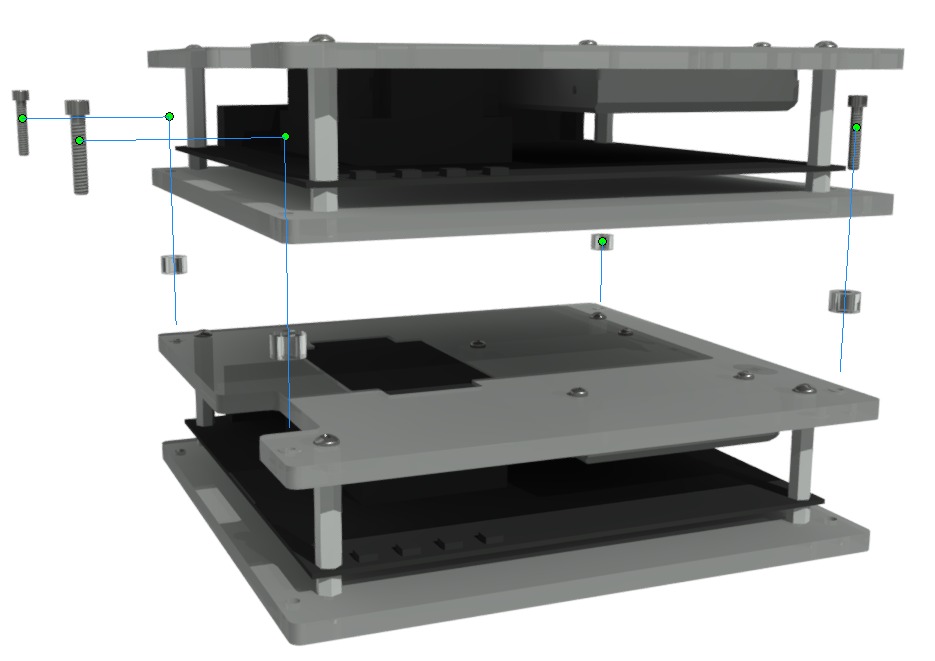

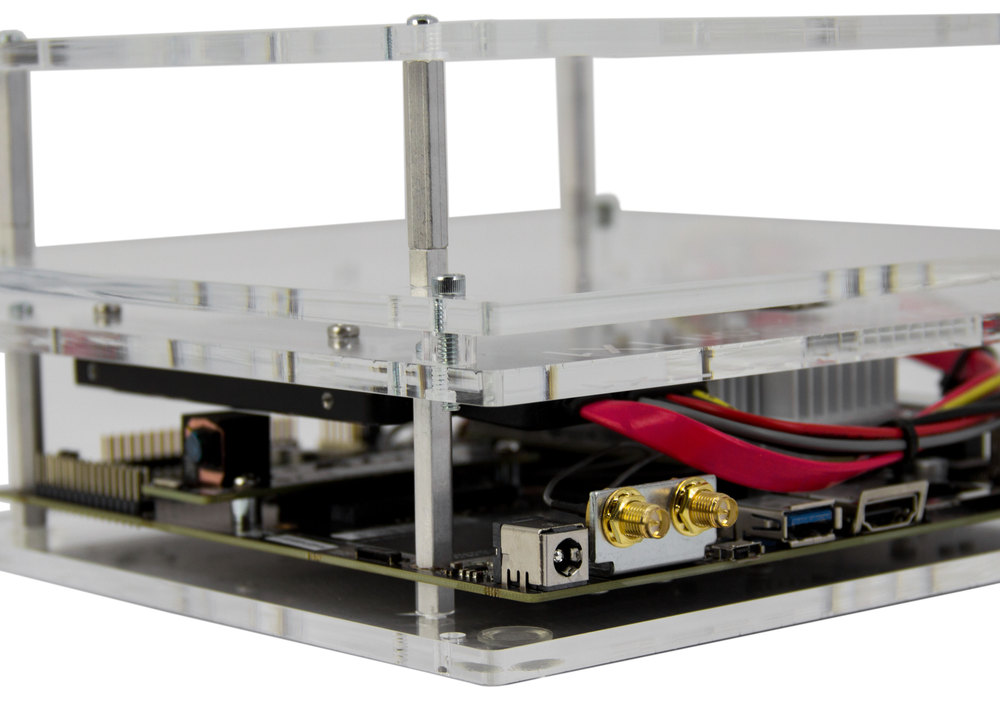

If you wish to stack multiple kits together, we have also included:
4x Thick acrylic spacers
4x .75 inch #6-32 socket cap screws
1x 7/64 inch hex key
