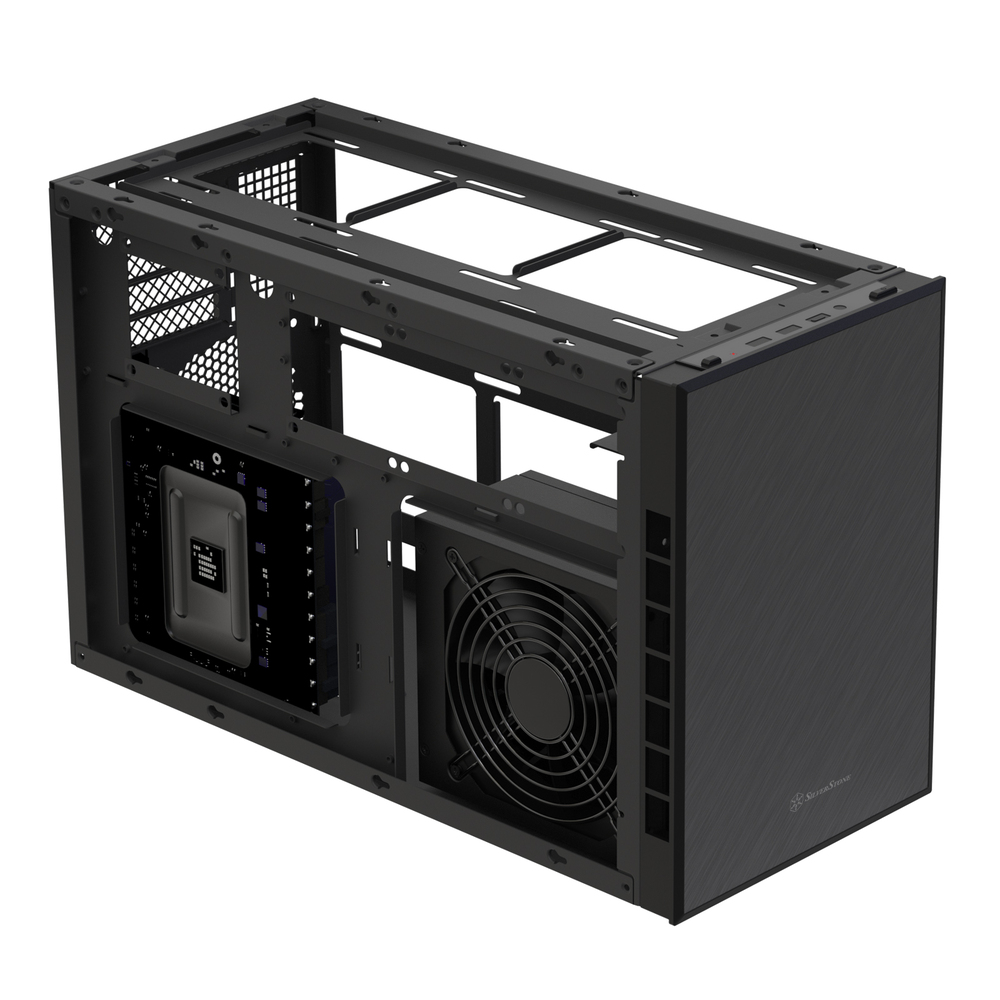

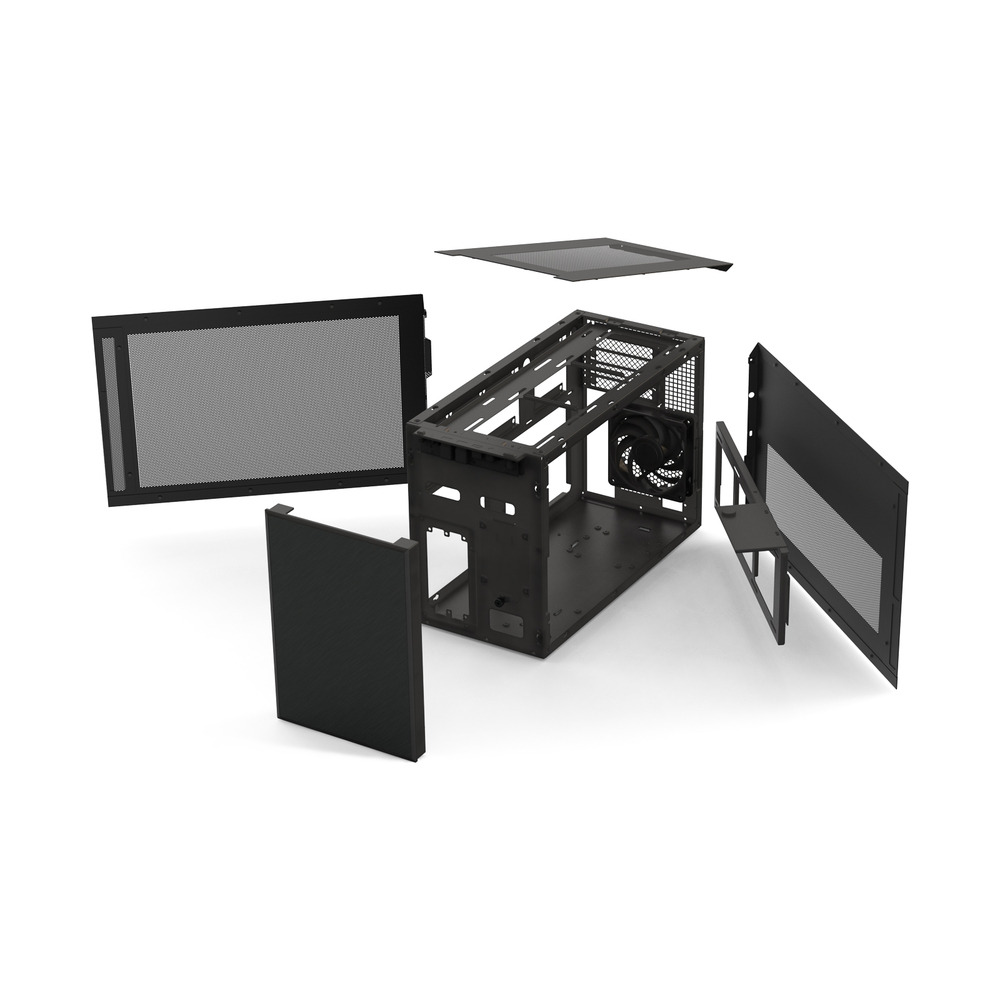

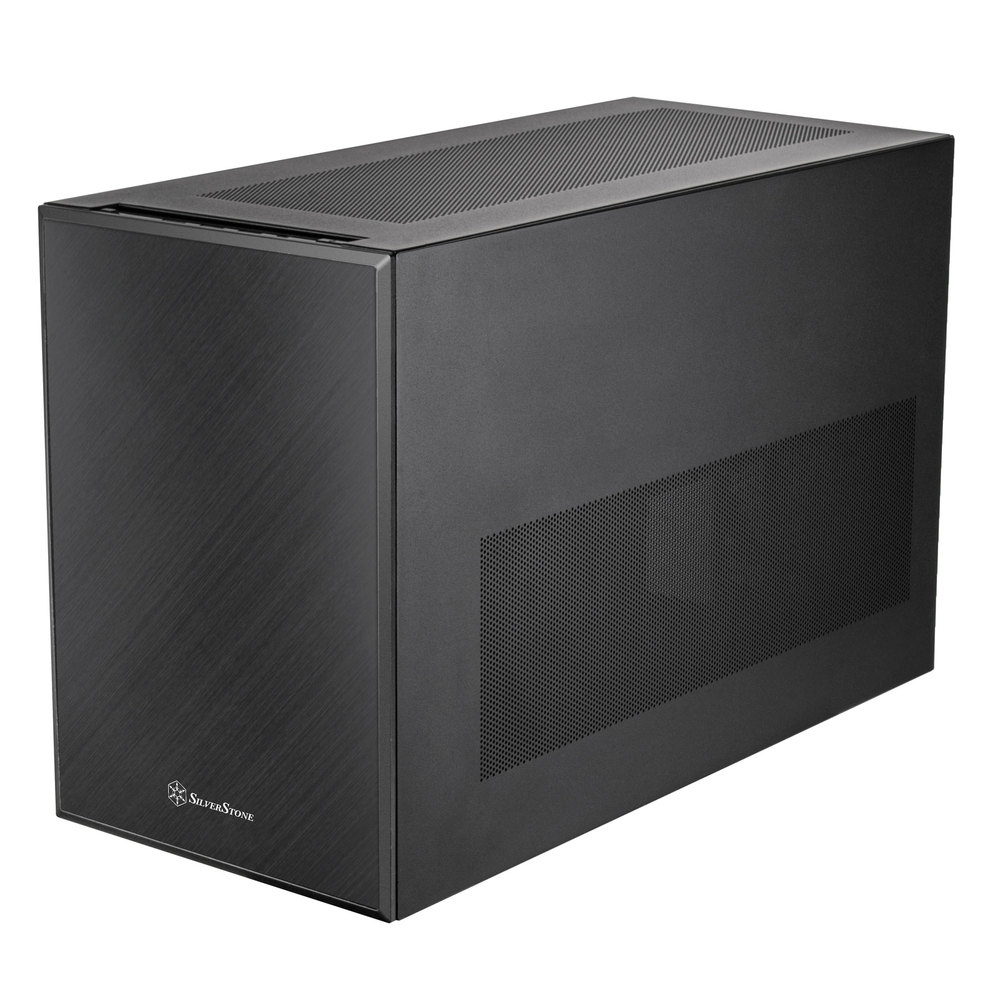

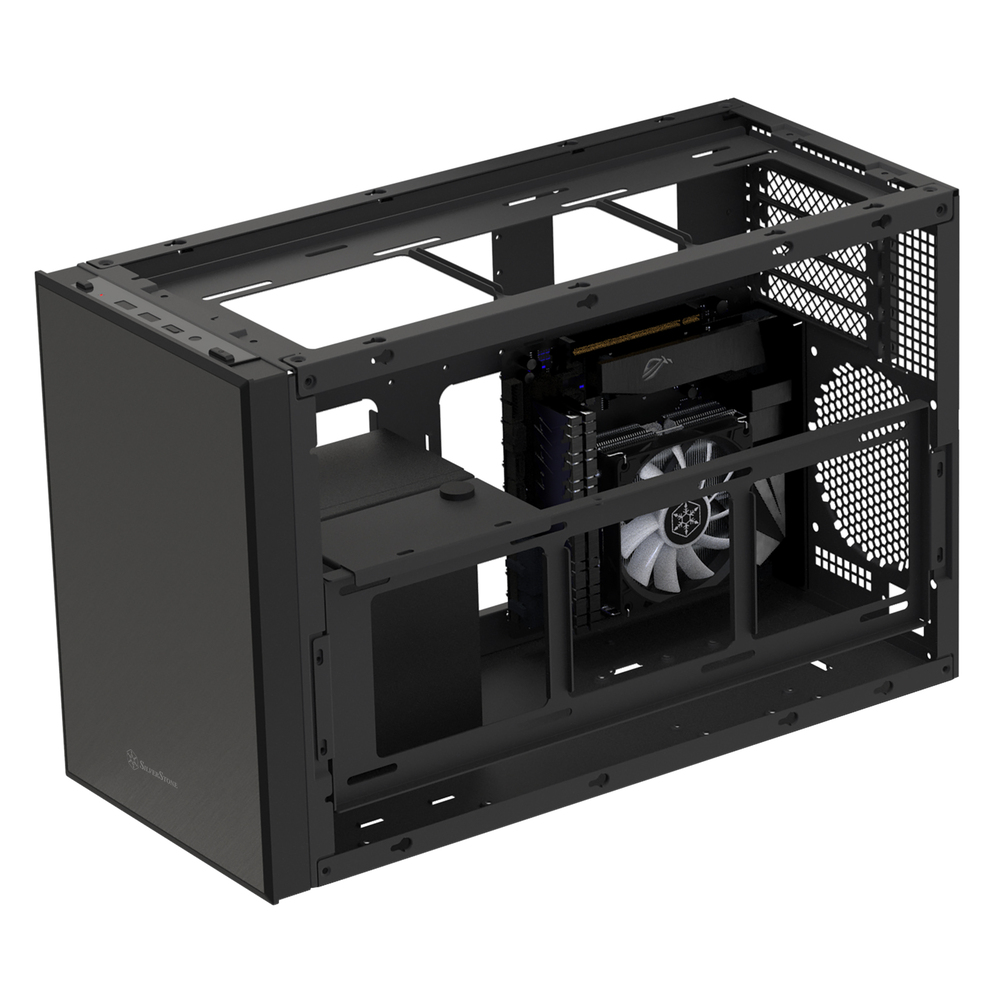

The SilverStone SUGO 17 is a marvel of compact chassis design. Close in size to small form factor cases that use ITX motherboards, the SUGO 17 manages to fit a larger microATX board instead - as well as both an AIO liquid-cooler and a high-end, multi-slot video card! This provides more expansion room than an ITX-based system, while also taking up less overall volume than mATX tower-style cases.

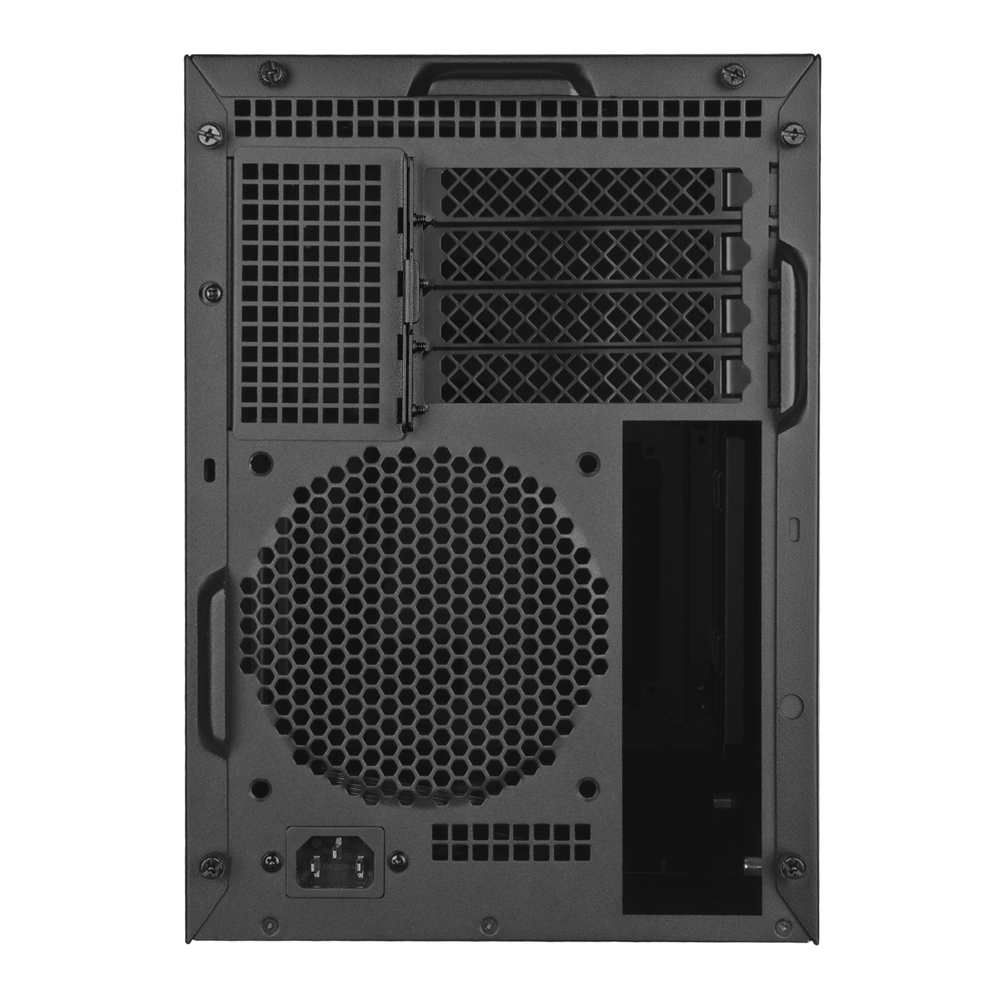

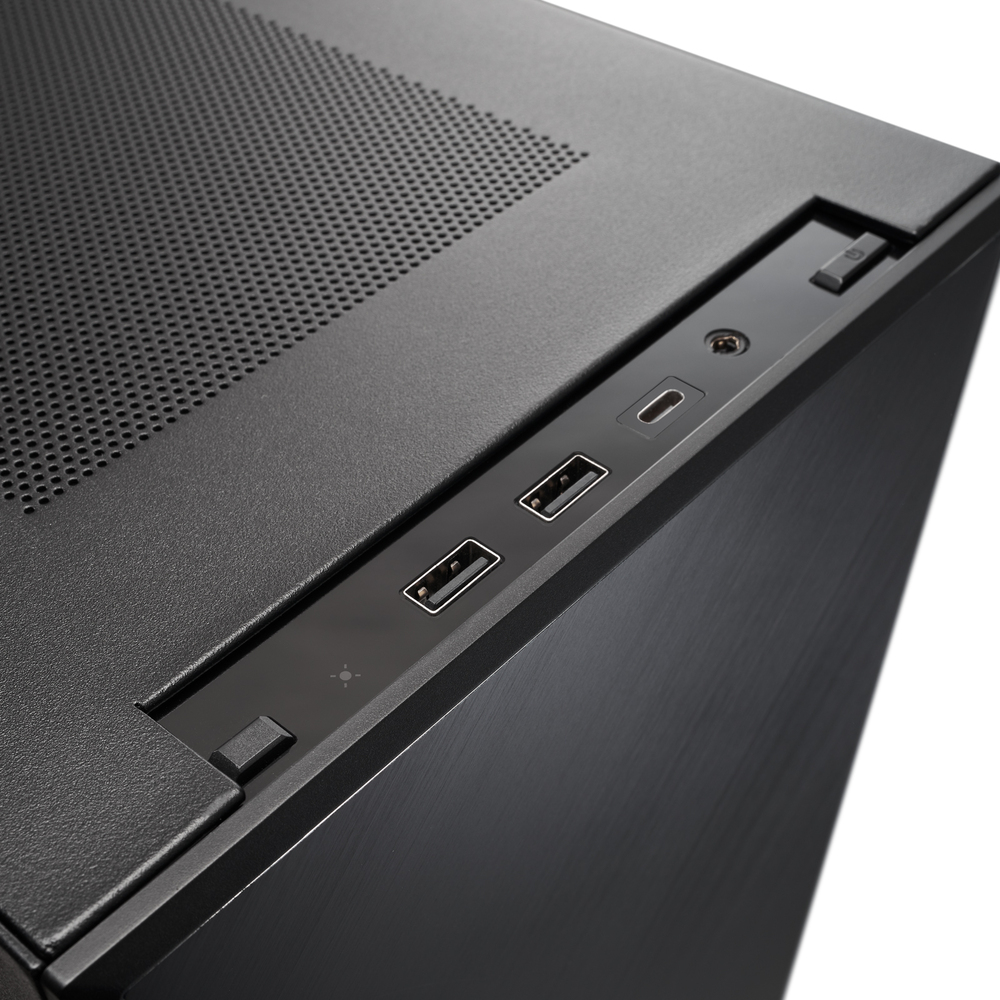

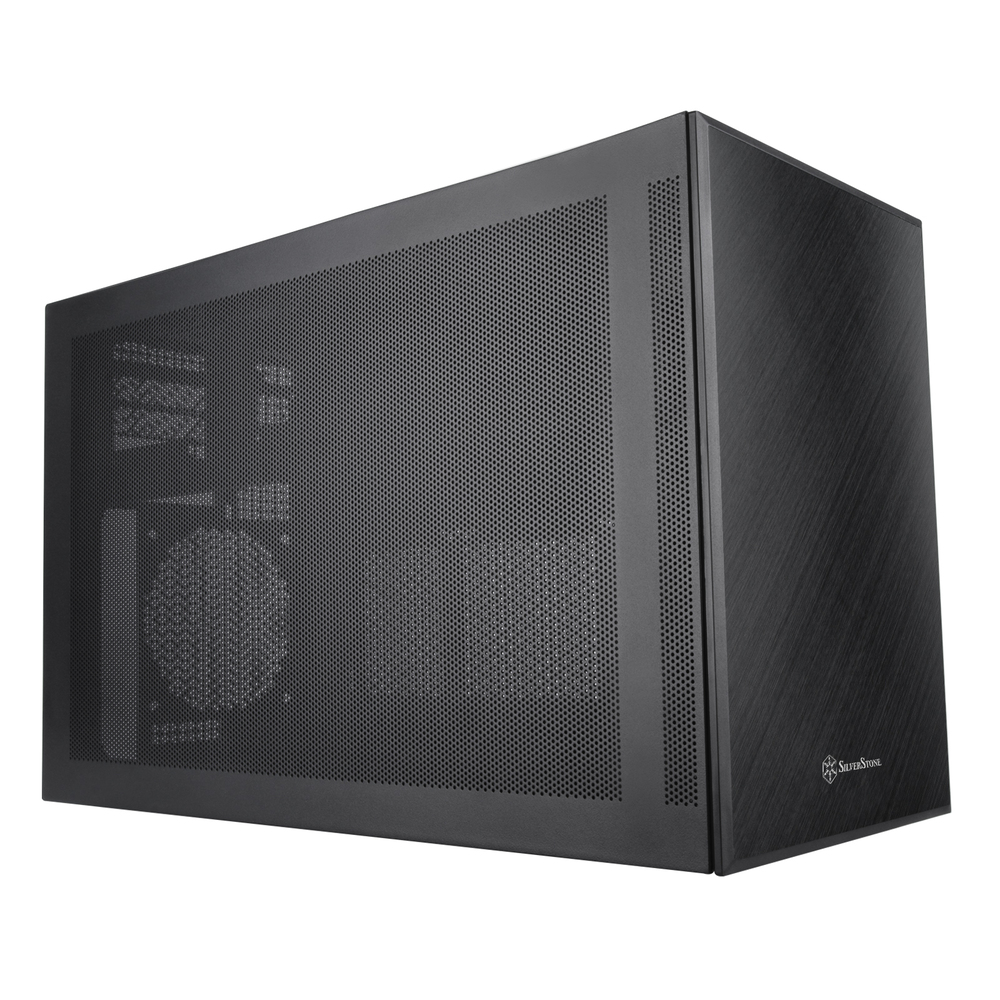

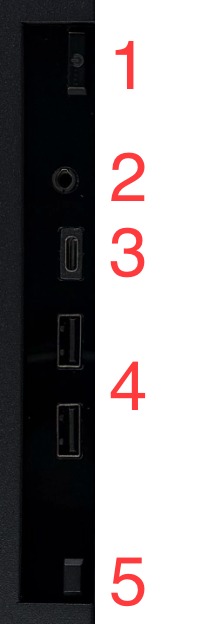

Plenty of ventilation is needed to ensure airflow for all of that hardware, so there are grills on both sides as well as the top and rear of the chassis. The front is a solid panel, which we have branded with the Puget Systems logo. Front I/O ports are located along the top edge and provide two USB-A ports, one USB-C, and headphone & mic jacks.
Plenty of ventilation is needed to ensure airflow for all of that hardware, so there are grills on both sides as well as the top and rear of the chassis. The front is a solid panel, which we have branded with the Puget Systems logo. Front I/O ports are located along the top edge and provide two USB-A ports, one USB-C, and headphone & mic jacks.
Model: Silverstone SST-SG17B
Specifications
| Color | Black |
| Maximum Motherboard Size | MicroATX |
| Case Window | No |
Dimensions | |
| Height | 286 mm (11.3 in) |
| Width | 202 mm (8.0 in) |
| Depth | 451 mm (17.8 in) |
| Net Weight | 5.98 kg (13.2 lbs) |
| Maximum CPU Cooler Height | 158mm |
| Maximum GPU Length | 400mm |
| Maximum PSU Length | 140mm |
Drive Bays | |
| Internal 2.5 inch | 2 |
| Internal 2.5/3.5 inch | 1 |
Front Panel Connectors | |
| USB 3.0 | 2 |
| Audio Out | 1 |
| USB-C | 1 |
Cooling System | |
| Total Fan Mounts | up to 7 x 120mm |
