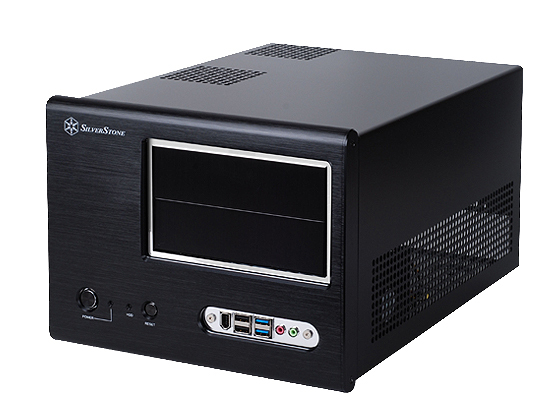

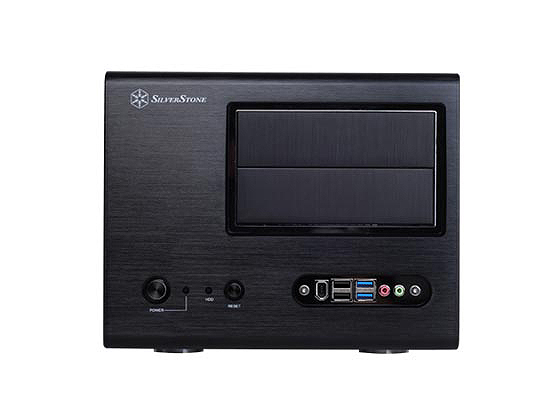

Silverstone SG01-F (Black) Micro-ATX w/ USB 3.0 Ports

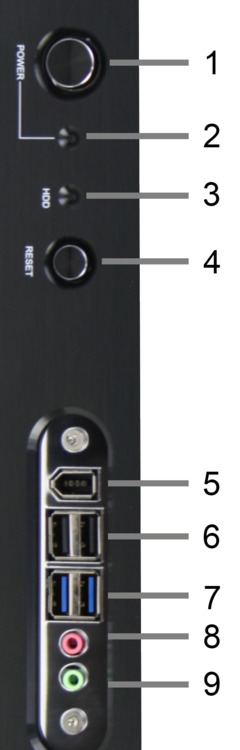

Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
HDD LED: Light that turns on when there is drive activity.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.

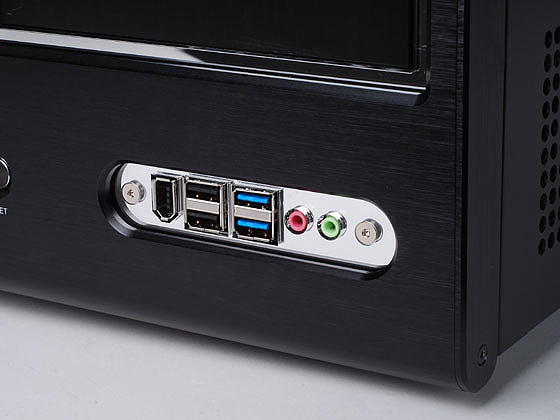

Firewire Port (IEEE 1394a): IEEE 1394a port, also known as Firewire A, is an older standard for high-speed device connectivity.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Model: Silverstone SST-SG01B-F-USB3.0
Specifications
| Color | Black |
| Material | Aluminum front panel, steel frame |
| Type/Size | Small Form Factor |
| Maximum Motherboard Size | MicroATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 212 mm (8.3 in) |
| Width | 263 mm (10.4 in) |
| Depth | 393 mm (15.5 in) |
| Net Weight | 4.9 kg (10.8 lbs) |
Drive Bays | |
| External 5.25 inch | 2 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 2 |
| Internal 2.5 inch | 0 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| Firewire | 1 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 2 x 80mm |
| Total Fan Mounts | 1 x 80mm |
Features
- Cleanly styled aluminum front panel and body
- Enhanced cooling layout for high performance
- Dual 5.25" and 3.5" drive bays
- Micro ATX motherboard & ATX PSU compatible
- Full size expansion slots
The SG01-F takes another step forward in both performance and capabilities over the original Sugo's aluminum chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the case still has the smaller dimension of its predecessor intact. The now classic Sugo styling and proportions continue to stand out from lesser SFF designs while its tried and true chassis layout still impresses with standard form factor accepting capacity. Built based on a brand new steel structure, the SG01-F is will again become the standard for builders looking to build quality SFF computers.
