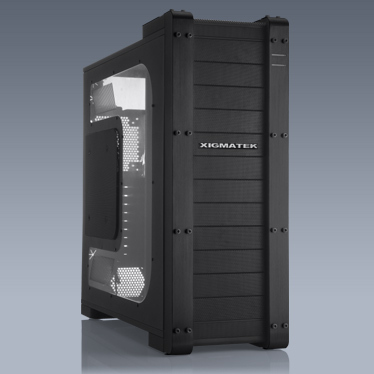

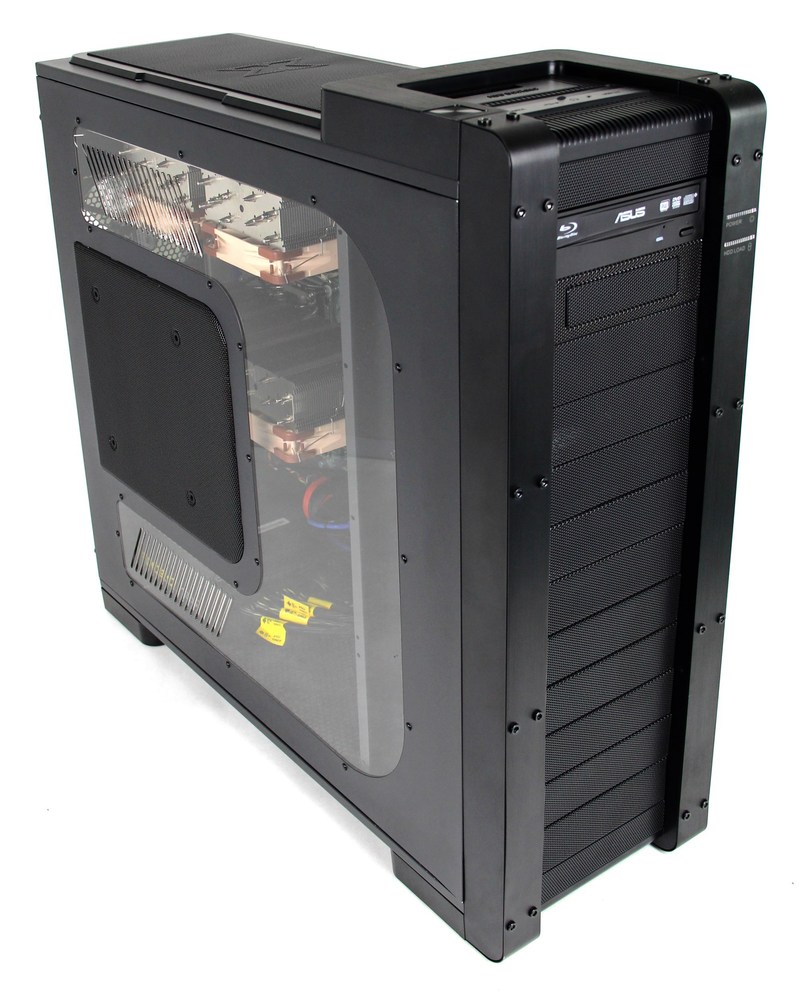

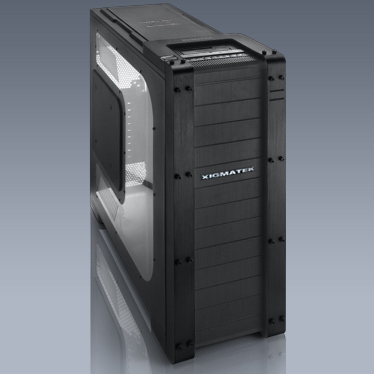

Xigmatek Elysium Black w/ Window Ports
Power Switch: On/off button for the device.

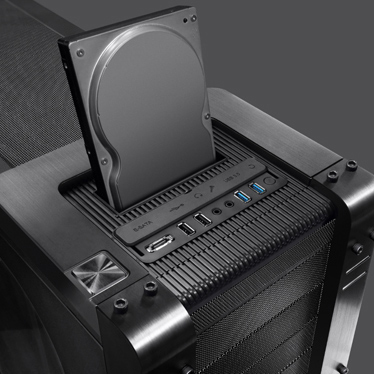

External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Model: Xigmatek CCC-HSA0DS-U01
Specifications
| Color | Black |
| Material | Plastic shell, steel frame |
| Type/Size | Full Tower |
| Maximum Motherboard Size | HPTX |
| Case Window | Yes |
| Power Supply | None |
Dimensions | |
| Height | 618 mm (24.3 in) |
| Width | 230 mm (9.1 in) |
| Depth | 663 mm (26.1 in) |
| Maximum CPU Cooler Height | 185mm |
| Maximum GPU Length | 440mm |

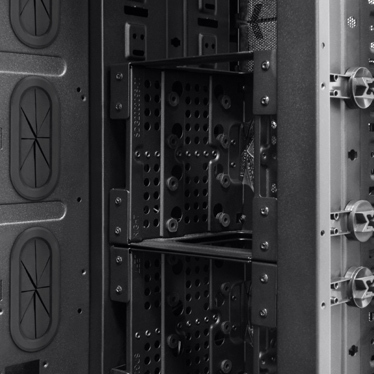

Drive Bays | |
| External 5.25 inch | 6 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 8 |
| Internal 2.5 inch | 0 |

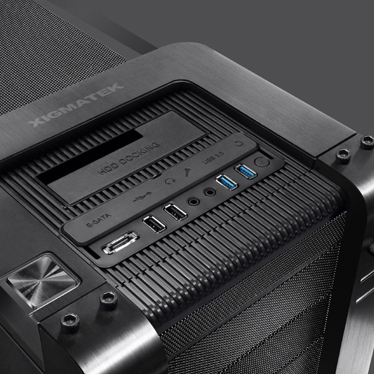

Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 1 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | 2x Front 120mm White LED, Side 200mm White LED, Rear 140mm White LED |
| Total Fan Mounts | 3x 120mm Top |
