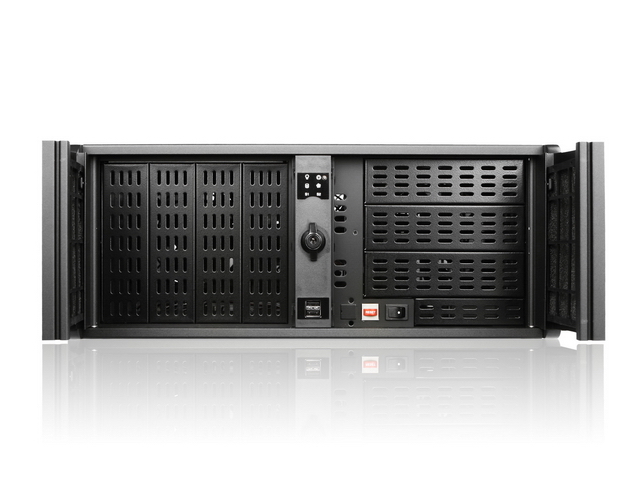

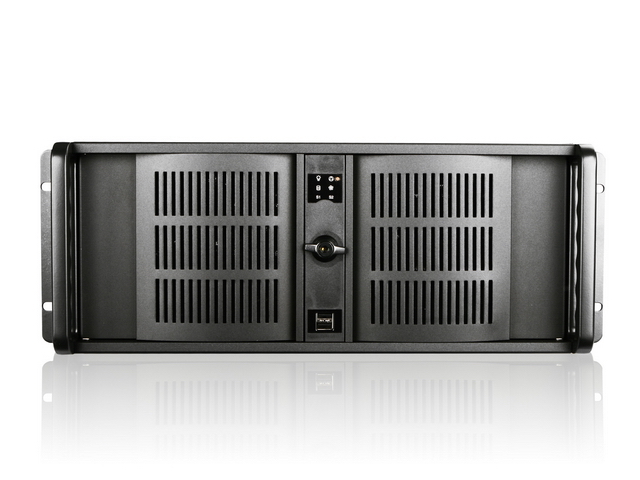

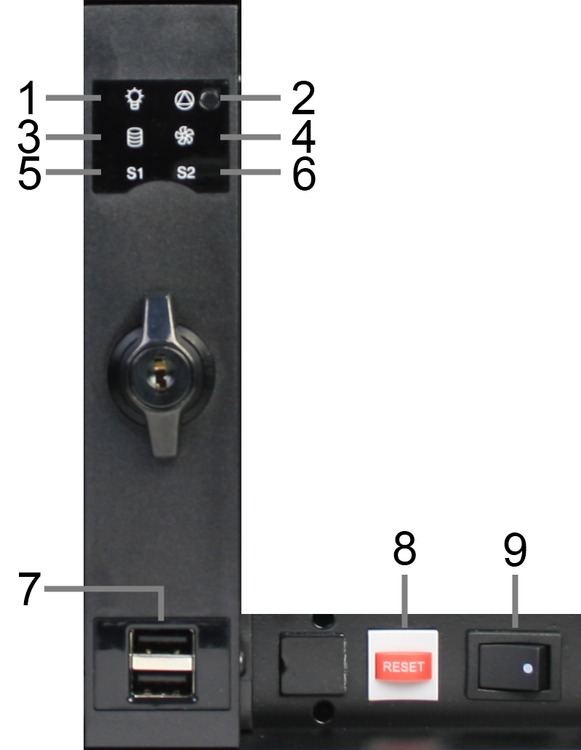

iStarUSA D-400L-7 4U Rackmount Case Ports
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
Alarm Reset: Resets the fan speed alarm, if a TC-ISF08 sensor board is installed.
HDD LED: Light that turns on when there is drive activity.
Fan LED: Activates when a problem is detected with a chassis fan, if a TC-ISF08 sensor board is installed.
Temperature Sensor LED: Activates when the a high temperature is detected, if a TC-ISF08 sensor board is installed.
Temperature Sensor LED: Activates when the a high temperature is detected, if a TC-ISF08 sensor board is installed.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Power Switch: On/off button for the device.
iStarUSA D-400L-7 4U Rackmount Case Dimensions
Model: iStarUSA D-400L-7
Specifications
| Color | Black |
| Material | Aluminum front panel, steel frame |
| Type/Size | 4U Rackmount |
| Maximum Motherboard Size | EATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 177.8 mm (7.0 in) |
| Width | 482.6 mm (19.0 in) |
| Depth | 688.3 mm (27.1 in) |
Drive Bays | |
| External 5.25 inch | 7 |
| External 3.5 inch | 1 |
| Internal 3.5 inch | 1 |
| Internal 2.5 inch | 0 |
Front Panel Connectors | |
| USB 2.0 | 2 |
| USB 3.0 | 0 |
| Firewire | 0 |
| Audio In | 0 |
| Audio Out | 0 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |

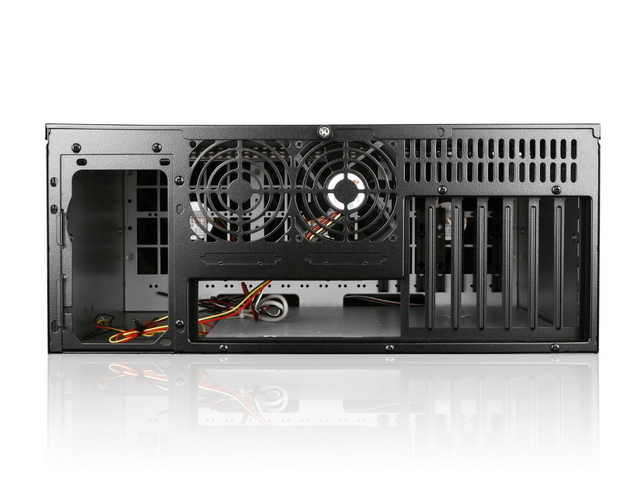

| Included Fans | Internal 3x 120mm, Rear 1x 80mm |
| Total Fan Mounts | Rear 1x 80mm |
Chassis weighs 32.8 lbs
