Note: Standby functionality is not guaranteed, as 3Ware does not officially support standby.

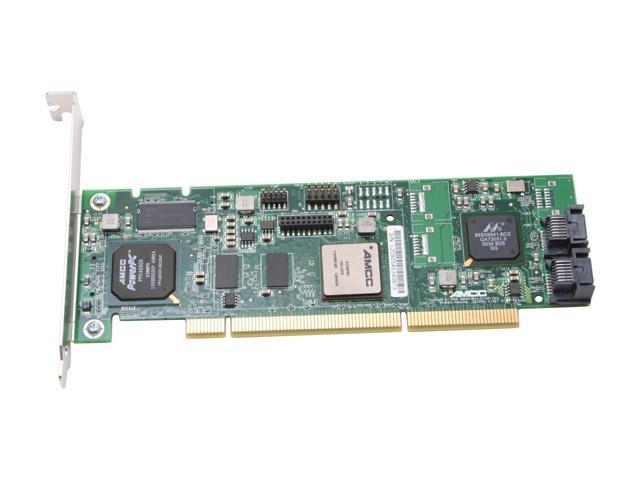

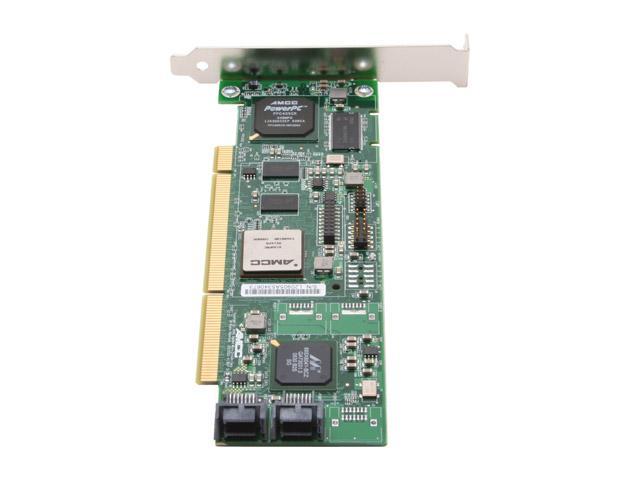

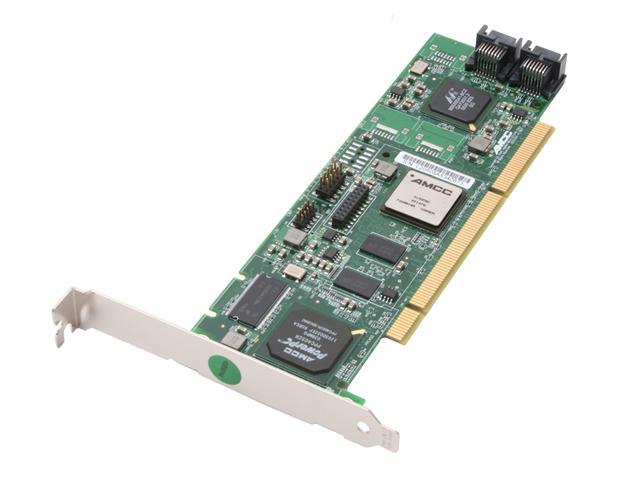

Model: 3Ware 9550SX-4LP
Specifications
Card Specifications | |
| Manufacturer | 3Ware |
| Type of Ports | SATA II |
| Number of Ports | 4 |
| RAID Modes Supported | 0/1/5/10 |
| Battery Backup Available? | Yes |
| Interface | PCI-X |
| Form Factor | Low Profile |
Controller Chip | |
| Brand | 3Ware |
| Memory Amount | 128 MB |
| Memory Expandable? | No |
Features
- 7th-generation StorSwitch point-to-point, non-blocking switched architecture
- On-board PowerPC RISC processor provides true hardware RAID - SCSI device driver model to take advantage of the benefits of SCSI using inexpensive Serial ATA drives
- Bootable array support for greater fault tolerance
- Variable stripe size for performance tuning by application
- 64-bit LBA support
- ATA pass-through mode support
- Up to 256 MB DDR2 400 memory with ECC protection
- 32 pooled DMA channels
- Complete configuration management suite - 3ware BIOS Manager 2 (3BM2) - easy to use BIOS configuration tool - 3ware Disk Manager 2 (3DM2) - browser-based management tool
- Features include: secure access via ssh or https, create unit, delete unit, remove unit, import unit, migrate unit, verify unit rebuild unit - Command Line Interface (CLI) - scriptable configuration tool
- SNMP support
- SMTP support for email/pager notification
- ATA/6 and Out of band (OOB) staggered drive spin-up support
- Auto carving allows logical units larger than 2 TB to be divided into multiple units for legacy operating systems that are limited to a maximum of 2 TB per logical unit
- StorSave platform for advanced performance tuning with the BBU
- Multiple logical unit sizes and RAID levels on one card
- Multiple card support within a system for large storage requirements
- Hot-swap and hot-spare support for data availability
- Dynamic sector repair for robust data protection
- S.M.A.R.T. disk drive monitoring for reliability
- Emergency Flash Recovery protects against failed firmware upgrade
- Drive activity LED support
- Online Capacity Expansion and RAID Level Migration
- Battery Backup Unit (BBU) ready
- Enhanced data protection with write journaling for non-redundant arrays and accidental drive removal
- Drive insertion and removal notification
Highest performance SATA II RAID
The 3ware 9550SX PCI-X to SATA II RAID controller delivers over 800MB/sec RAID 5 reads and exceeds 380MB/sec RAID 5 writes, making it 200% faster than the industry-leading 3ware 9500S RAID controller.
7th generation StorSwitch non-blocking switch fabric technology and sophisticated SATA II features including 3 Gbps transfer speed, Native Command Queuing (NCQ), and Port Multiplier support drive this unmatched performance.
Combined with an advanced RAID management feature set that includes web-based, command-based, and API software components, the 9550SX, available in 4, 8, 12, and 16-port configurations, is the most compelling RAID solution available.
