Model: Adaptec 2004000
Features
- 48 Mbyte onboard ECC SDRAM
- 64-bit/66MHz PCI
- Adaptec AIC-7930W microprocessor with hardware XOR
- Supports up to 15 SCSI devices per motherboard channel
- 0, 1, 0/1, 5, 0/5, JBOD RAID levels
- Online capacity expansion
- Background initialization (for immediate RAID availability)
- Low-profile dimensions: 2.5 in. x 6.6 in. (6.25 cm. x 16.5 cm.)
- Optional low-profile bracket included
- Hot-swap disk drive support for easy replacement
- Hot-spare disk support with automatic rebuild
- Supports bootable arrays
- Immediate RAID availability (background initialization)
- S.M.A.R.T. support SES/SAF-TE support
- Customer Needs: Ideal for Intel architecture based servers and workstations implementing Adaptec SCSI on motherboard solution.
- System Environment: Ideal for Intel-based servers and workstations implementing Adaptec Ultra320 SCSI zero-channel RAID
Specifications
Data Transfer Rate: Up to 320 MByte/sec per channel
Bus Type: 64-bit/66MHz PCI
Device Support: 15 SCSI devices per channel
RAID levels: 0, 1, 0/1, 5, 0/5, JBOD
Cache Memory: 48 MByte onboard ECC SDRAM
Board Dimensions: Low-profile - 2.5in H x 6.6in L6.25cm H x 16.5cm L
Power Consumption: 1 amp @ 3.3V
Operating Temperature: 0* C to 55* C
System Requirements
Computer: Intel PC or equivalent
Conectivity: Available PCI slot supporting Adaptec Embedded RAID Logic (EMRL) or Intel RAIDIOS logic
Package Contents
Items: Adaptec SCSI RAID 2010S Optional low-profile bracket Installation Guide booklet Bootable CD-ROM Warranty card
Affordable, low-profile RAID design -- easily upgrades onboard Ultra320 SCSI to RAID
Zero-channel, low-profile card easily upgrades onboard Ultra320 SCSI to RAID
Adaptec's family of zero-channel RAID (ZCR) cards offer the ideal solution for an affordable, flexible upgrade path to advanced RAID. This innovative approach reduces the cost of the RAID controller by eliminating the need for a SCSI chip on the controller.

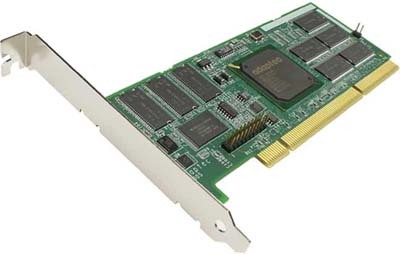

This low-profile ZCR card connects to a 3.3V 64-bit PCI connector enabled with either Adaptec Embedded RAID Logic (EMRL) or Intel RAIDIOS logic (used with Intel's new modular ROMB designs) on Ultra320 motherboards. Compatibility with multiple ZCR technologies makes the Adaptec 2010S card a logical choice for customers looking to standardize on a single RAID card.
All Adaptec low-profile RAID controllers have a full-size bracket installed on the card. The kits contain n low-profile bracket for use in 1U systems.
