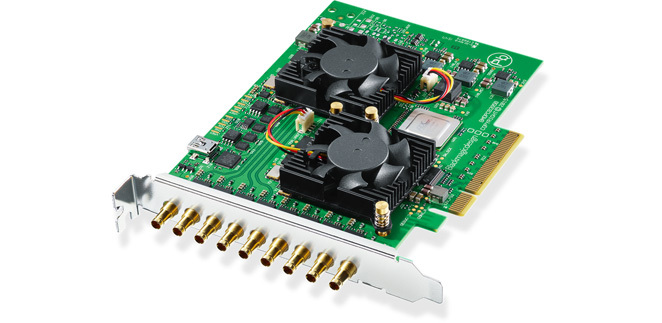

The Blackmagic Design DeckLink Quad 2 provides eight 3G-SDI mini DIN connections. Each is configurable as either input or output and supports SD and HD resolutions up to 1080p60.
Model: Blackmagic BDLKDVQD2
Specifications
Card Specifications | |
| Manufacturer | Blackmagic |
| Type of Ports | 3G-SDI mini DIN |
| Number of Ports | 8 |
| Port Location(s) | Rear |
| Motherboard Connection | PCI Express x8 |
| Interface | PCI Express 2.0 x8 |
| Form Factor | Full Height |
Dimensions | |
| Height | 106 mm (4.2 in) |
| Width | 21 mm (0.8 in) |
| Depth | 160 mm (6.3 in) |
| Net Weight | 0.102 kg (0.2 lbs) |
Features

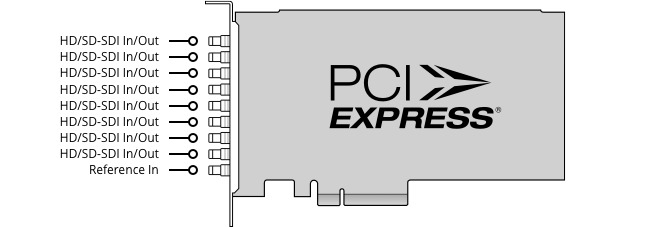

- Connections
- 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.
SDI Video Outputs
- 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.
SDI Audio Inputs
- 16 channels embedded in SD and HD.
SDI Audio Outputs
- 16 channels embedded in SD and HD.
Sync Input
- Tri-Sync or Black Burst.
Computer Interface
- PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
- Supported Codecs
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
