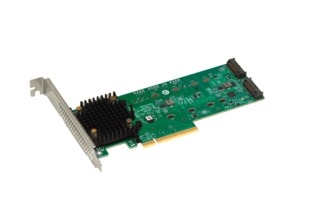

The Broadcom MegaRAID 9520-2M2 is a RAID controller supporting two M.2 solid-state drives in either RAID 0 (striping) or 1 (mirroring). However, this card only supports PCIe Gen 4, so a pair of drives striped with it will be no faster than a single Gen 5 drive would be. As such, this card only makes sense to provide hardware-based mirroring for SSDs in situations where that level of redundancy is required - for example, when the OS volume needs to be mirrored.
Model: Broadcom 05-50148-03
Specifications
Card Specifications | |
| Manufacturer | Broadcom |
| Type of Ports | M.2 Gen 4 x4 |
| Number of Ports | 2 |
| RAID Modes Supported | 0, 1 |
| Maximum Supported Disks | 2 |
| Battery Backup Available? | No |
| Motherboard Connection | PCI Express x8 |
| Interface | PCI Express 4.0 x8 |
| Form Factor | Low/Full Height |
| Max Temp. | 105 C |
Controller Chip | |
| Brand | Broadcom |
| Model | SAS3808 |
| Memory Amount | 6 MB |
| Memory Expandable? | No |
Dimensions | |
| Height | 68.77 mm (2.7 in) |
| Width | 167.51 mm (6.6 in) |
| Net Weight | 0.094 kg (0.2 lbs) |
RAID 0/1 Controller for 2x M.2 NVMe or SATA SSD for OS boot mirrors. Single slot card, M.2 SSDs up to 110mm install onto the card directly.
