LSI 9361-4i SAS/SATA RAID Controller

Controllers

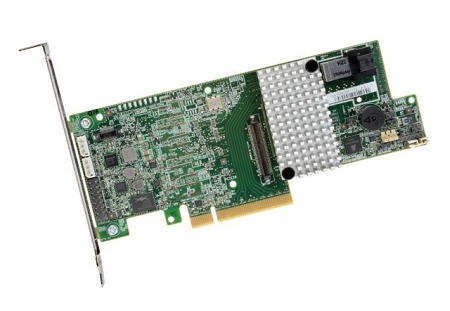

LSI 9361-4i SAS/SATA RAID Controller Picture 28862LSI 9361-4i SAS/SATA RAID Controller Picture 28863
The LSI 9361-4i RAID Controller is a 4-port, 12Gbps SAS / SATA adapter incorporating LSI MegaRAID technology. It supports all major RAID modes via a dual-core LSI hardware controller chip, and by utilizing a PCI-Express 3.0 x8 slot it can handle tremendous data bandwidth. This allows using even fast solid-state drives effectively, and LSI's FastPath software on the card adapts the controller to provide the best performance when SSDs are present.

For mission-critical work, there is also an optional hardware add-on to protect data in the card's cache during an unexpected loss of power. This upgrade, called CacheVault, helps to shield data that was in the process of being written during power loss from corruption. If you do not utilize CacheVault, or some other form of protection from outages, then it is highly recommended to disable the Write Caching feature on this card. Doing so reduces write speeds dramatically, but the alternative is to leave your data open to corruption in the case of an unexpected loss of power.
Model: LSI LSI00414

Specifications:
spacer
Card Specifications
Manufacturer  LSI
Type of Ports  Mini-SAS SFF8643
Number of Ports  1
Port Location(s)  Internal
RAID Modes Supported  0, 1, 5, 6, 10, 50, and 60
Native Supported Disks  4
Maximum Supported Disks  128
Battery Backup Available?  Yes
Slot Style  PCI-Express x8
Form Factor  Low/Full Height
Controller Chip
Brand  LSI
Model  LSISAS3108 dual core RAID on Chip (ROC)
Memory Amount  1024 MB
Memory Expandable?  No

- Includes FastPath (SSD Optimization)
- Supports CacheVault - LSICVM02
- Supports CacheCade - Either physical key LSI00290 or software license LSI00293
