M.2 to 19-pin USB 3.0 Adapter

Controllers

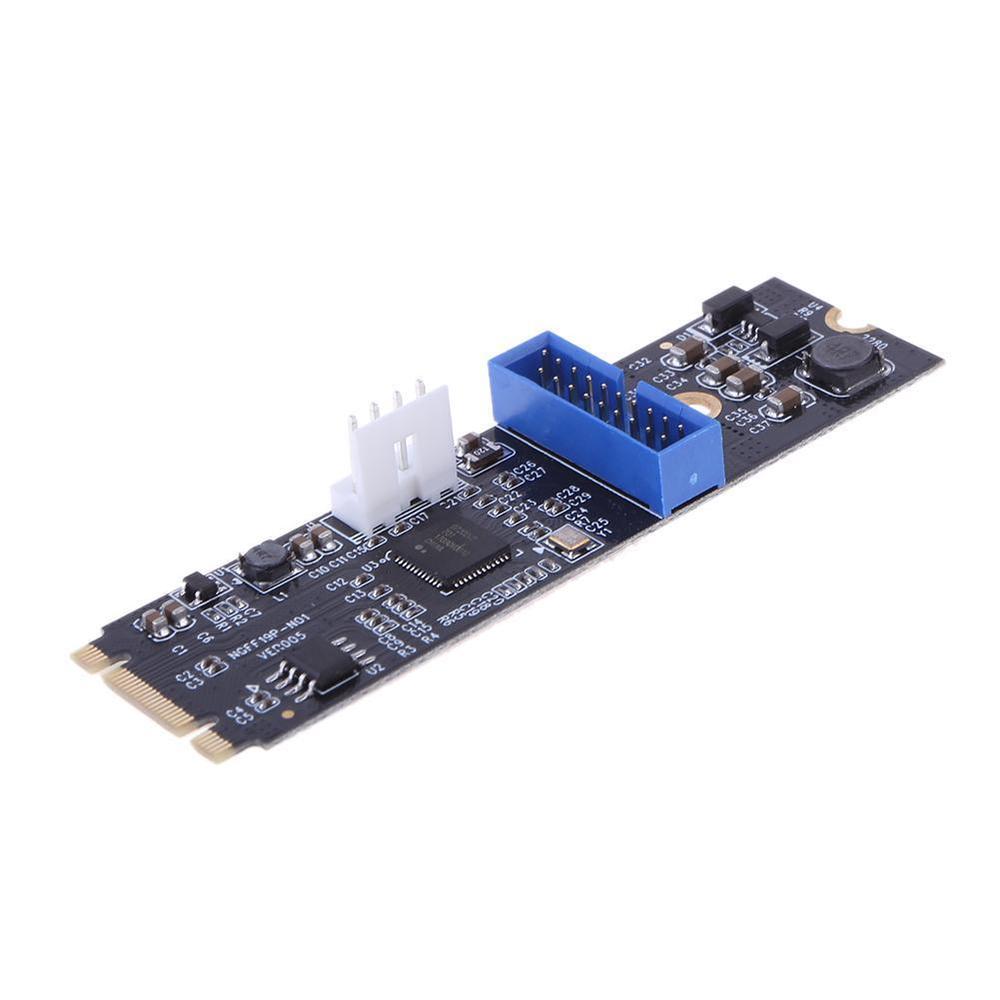

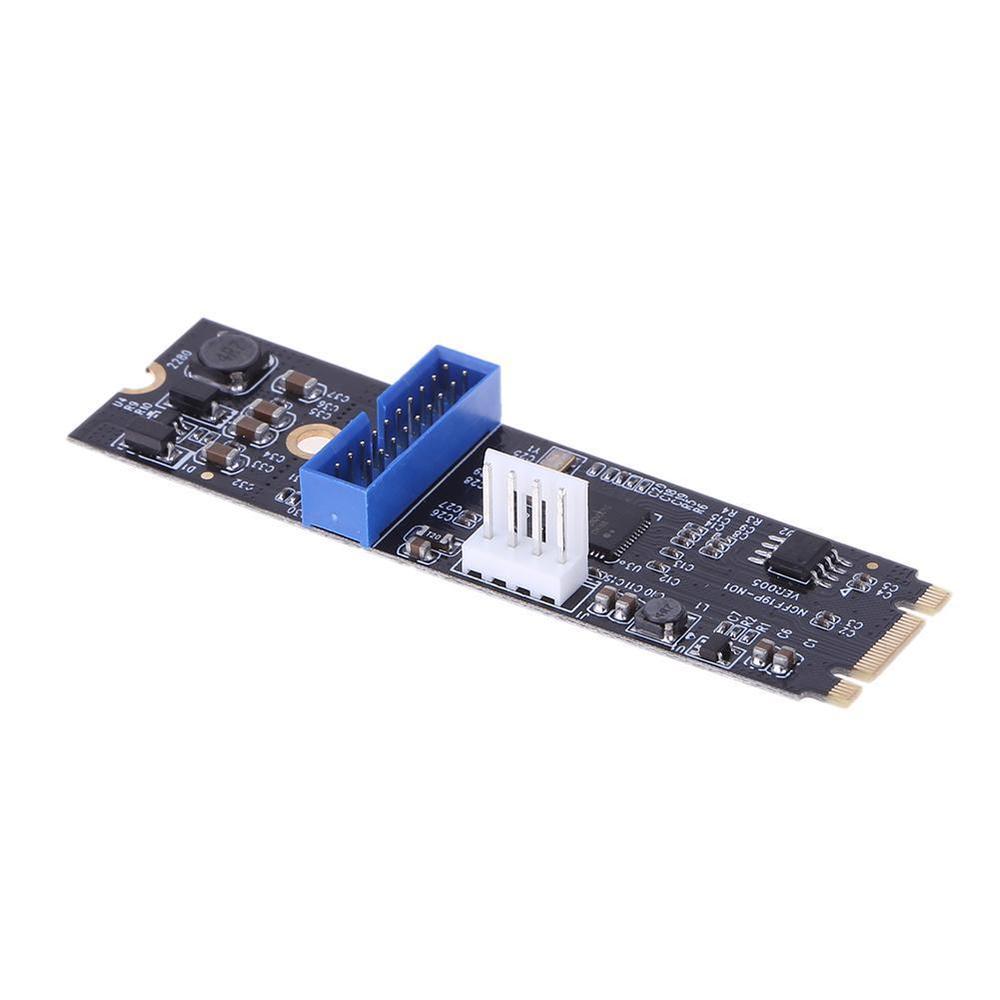

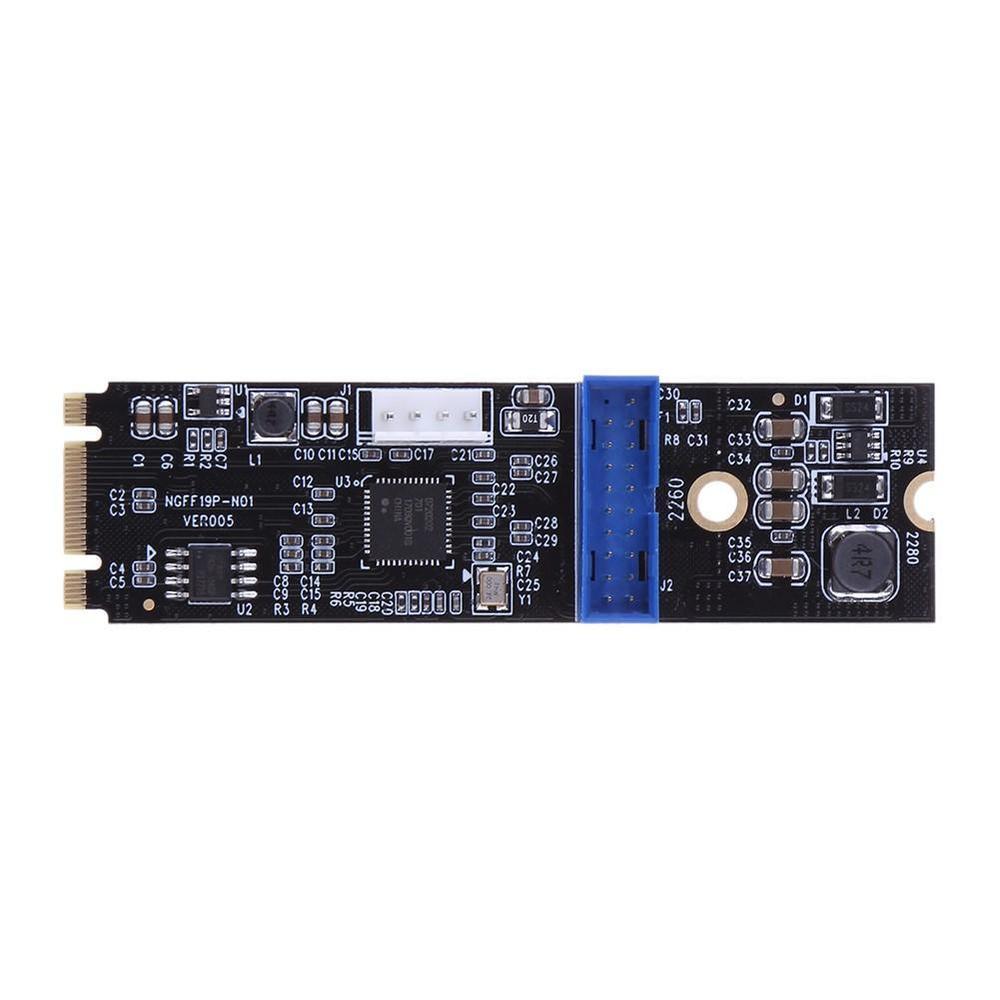

M.2 to 19-pin USB 3.0 Adapter Picture 49069M.2 to 19-pin USB 3.0 Adapter Picture 49070M.2 to 19-pin USB 3.0 Adapter Picture 49071M.2 to 19-pin USB 3.0 Adapter Picture 49072
This adapter provides an internal USB header, capable of powering two USB 3.0 or 2.0 ports on the front of a chassis. It fits into a M.2 slot, so that a full PCI-Express expansion slot is not required. That makes this device extremely useful with motherboards that have too few internal headers to run all the USB ports on the front of a chassis.

If used for USB 3.0 ports, this adapter features a supplemental power connection that needs to be hooked up in order to provide full USB 3.0 amperage - but if used for USB 2.0 ports, that extra power is not required.

Note: Provides connectivity to chassis front USB 2.0 ports.

Model: 2YN1AW1XL8HG6TD1

Features:
  • Renesas uPD720202 chipset
  • Transmission rate: 5000/480/12/1.5Mbps
  • Linux compatible
  • PCIe interface M.2 only

Configure a scientific workstation with the M.2 to 19-pin USB 3.0 Adapter.
