SYBA Dual Serial and Parallel PCI-Express card

Controllers

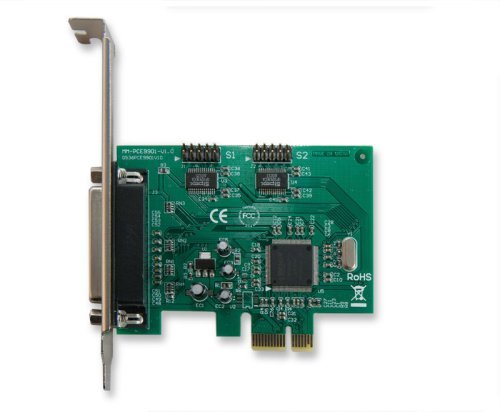

SYBA Dual Serial and Parallel PCI-Express card Picture 17098SYBA Dual Serial and Parallel PCI-Express card Picture 17099
This card from SYBA provides two externally-accessible serial ports (RS232), along with a parallel port (LPT). It connects to a PCI-Express x1 slot.
Model: Syba SD-PEX50030

Specifications:
spacer
Card Specifications
Manufacturer  Syba
Type of Ports  Parallel/Serial
Number of Ports  4
Port Location(s)  3 external
Slot Style  PCI-Express x1
Form Factor  Full Height
Controller Chip
Brand  MCS
Model  9901VC

MCS9901CV chipset
Fully compliant with PCI-Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Support PCIe Power Management

Serial Port:
16C450/550/Extended 550 compatible UARTs
Supports RS232, RS485 & RS422 modes
Bi-directional speeds from 50 bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software flow control
5, 6, 7, 8 and 9-bit Serial format Support
Even, Odd, None, Space & Mark parity supported
Custom BAUD Rates supported with external clock or by programming internal PLL
On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Supports remote wakeup and power management features
Serial Port transceiver shutdown support
Support slow IrDA on all Serial Ports

Parallel Port
Multi-mode IEEE 1284 compliant controller (SPP, PS2, EPP, ECP)
Faster data rates up to 1.5Mbps for parallel port
