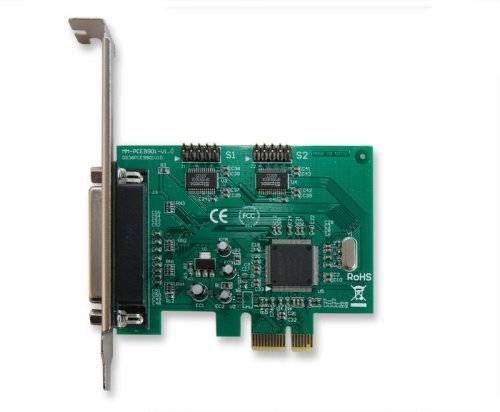

Model: Syba SY-PEX-2S1P
Specifications
Card Specifications | |
| Manufacturer | Syba |
| Interface | PCI-Express x1 |
| Form Factor | Full Height |
MCS9901CV chipset
Fully compliant with PCI-Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Support PCIe Power Management
Serial Port:
16C450/550/Extended 550 compatible UARTs
Supports RS232, RS485 & RS422 modes
Bi-directional speeds from 50 bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software flow control
5, 6, 7, 8 and 9-bit Serial format Support
Even, Odd, None, Space & Mark parity supported
Custom BAUD Rates supported with external clock or by programming internal PLL
On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Supports remote wakeup and power management features
Serial Port transceiver shutdown support
Support slow IrDA on all Serial Ports
Parallel Port
Multi-mode IEEE 1284 compliant controller (SPP, PS2, EPP, ECP)
Faster data rates up to 1.5Mbps for parallel port
