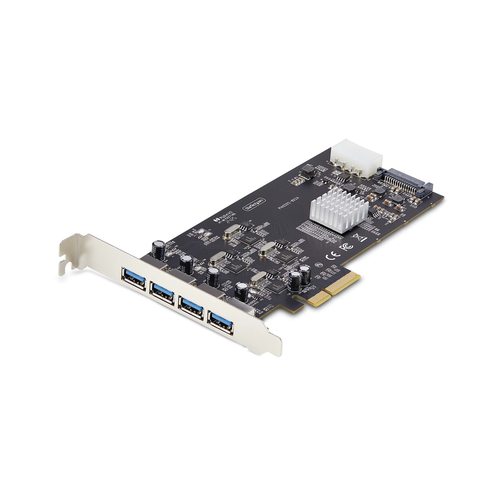

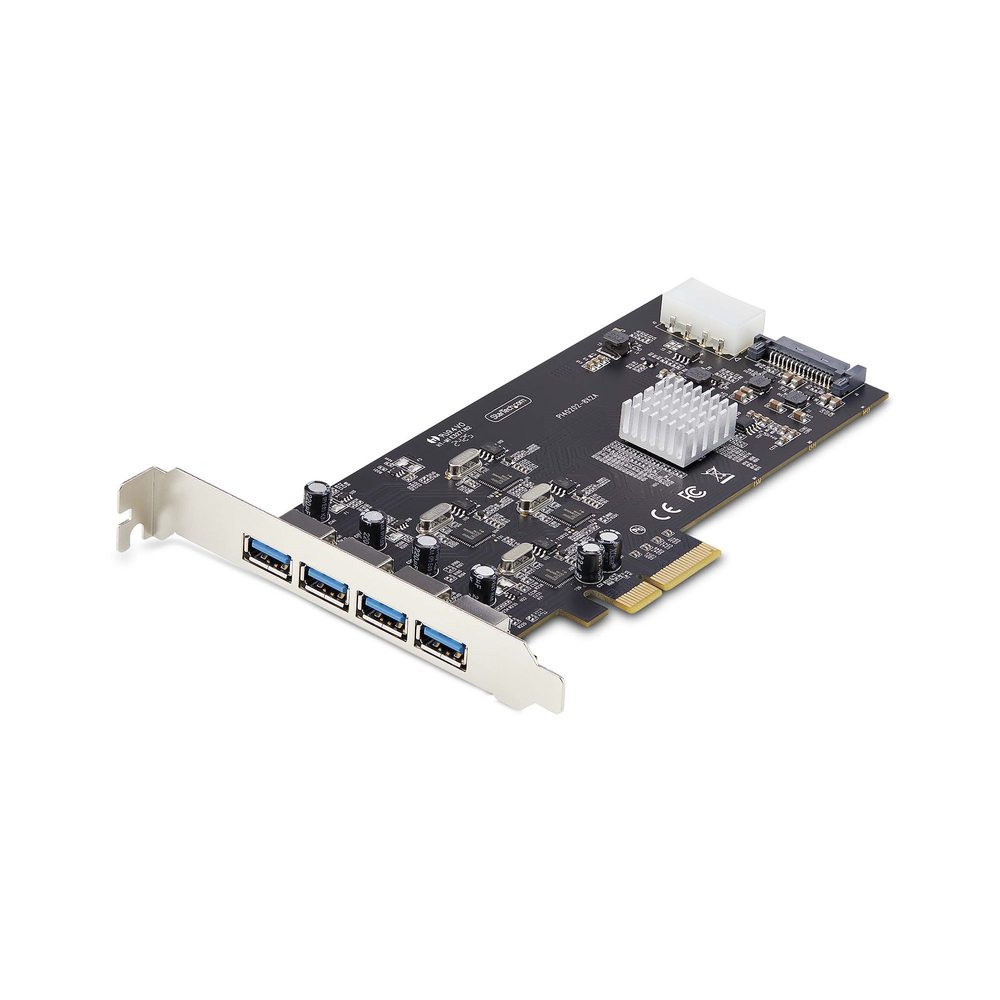

This StarTech brand card provides four USB 3.0 Type A ports on the rear of a computer, each supporting up to 5Gbps. Internally, this card requires a PCI-Express x4 (or larger) slot on the motherboard and either a SATA or Molex power connection in order to ensure plenty of power delivery to connected devices.
Model: StarTech P5Q4A-USB-CARD
Specifications
Card Specifications | |
| Manufacturer | Startech |
| Type of Ports | USB 3.2 (5Gbps) |
| Number of Ports | 4 |
| Motherboard Connection | PCI Express x4 |
| Interface | PCI Express 2.0 x4 |
| Form Factor | Full Height |
| Power Connector(s) | SATA |
Dimensions | |
| Height | 19 mm (0.7 in) |
| Width | 71 mm (2.8 in) |
| Depth | 169 mm (6.7 in) |
| Net Weight | 0.1 kg (0.2 lbs) |
