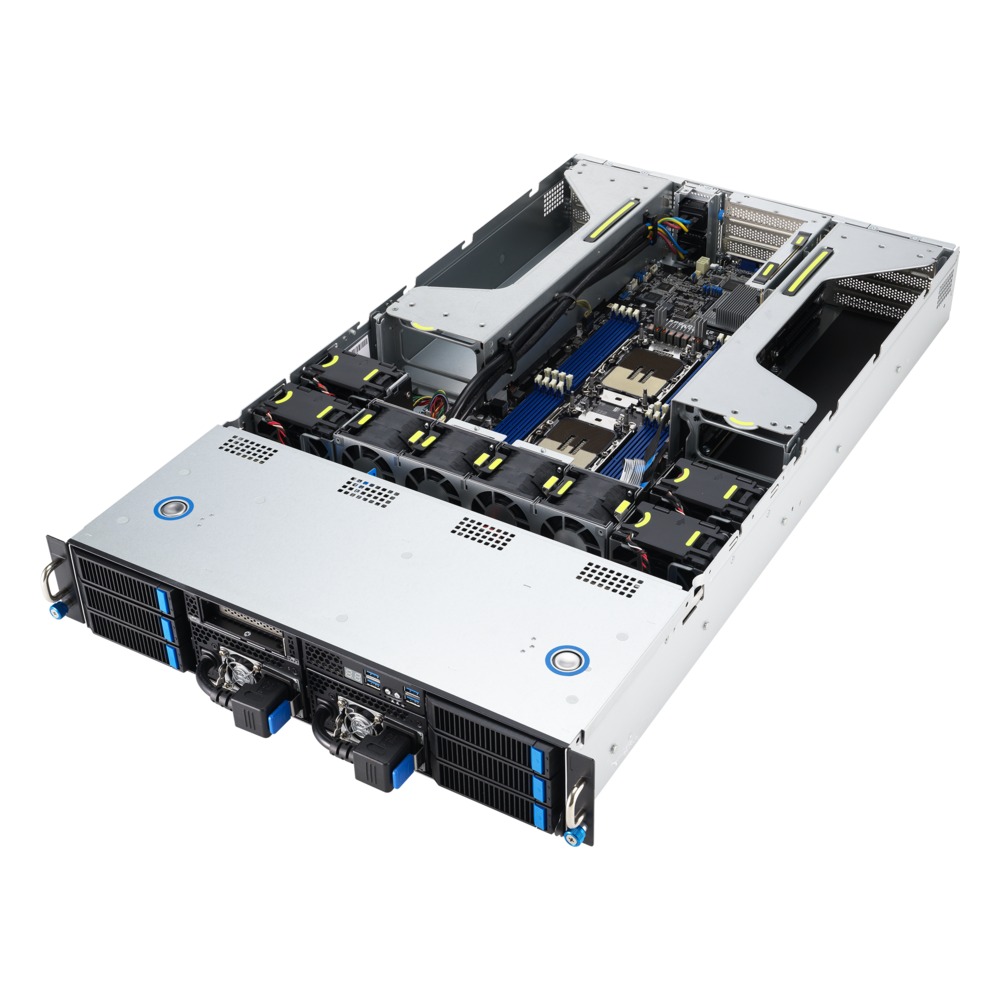

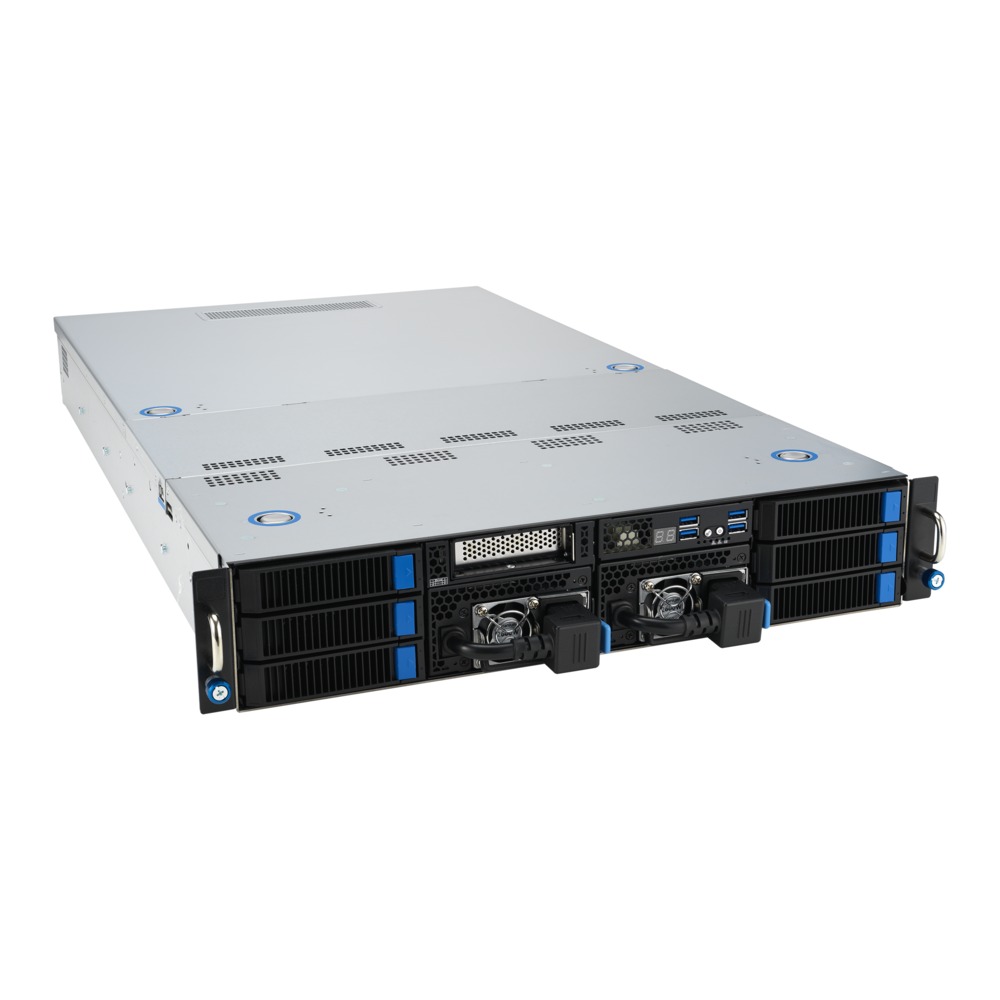

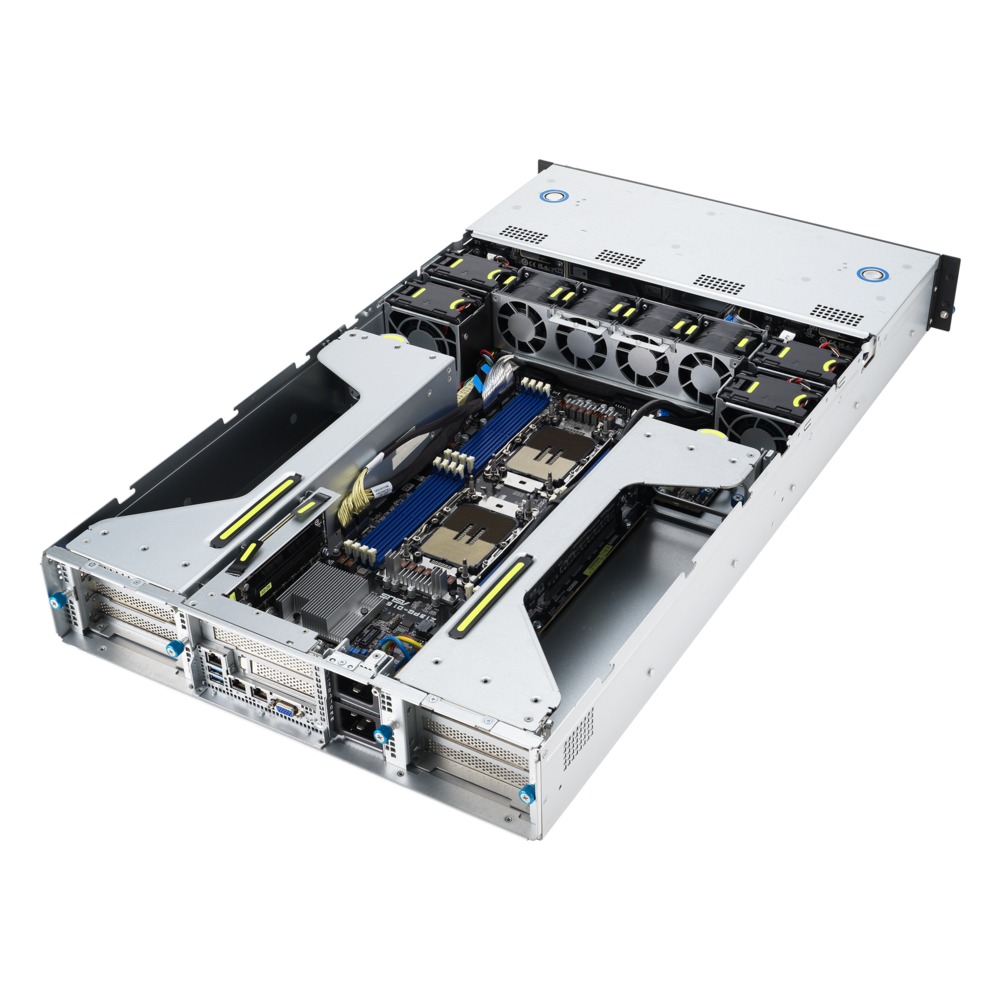

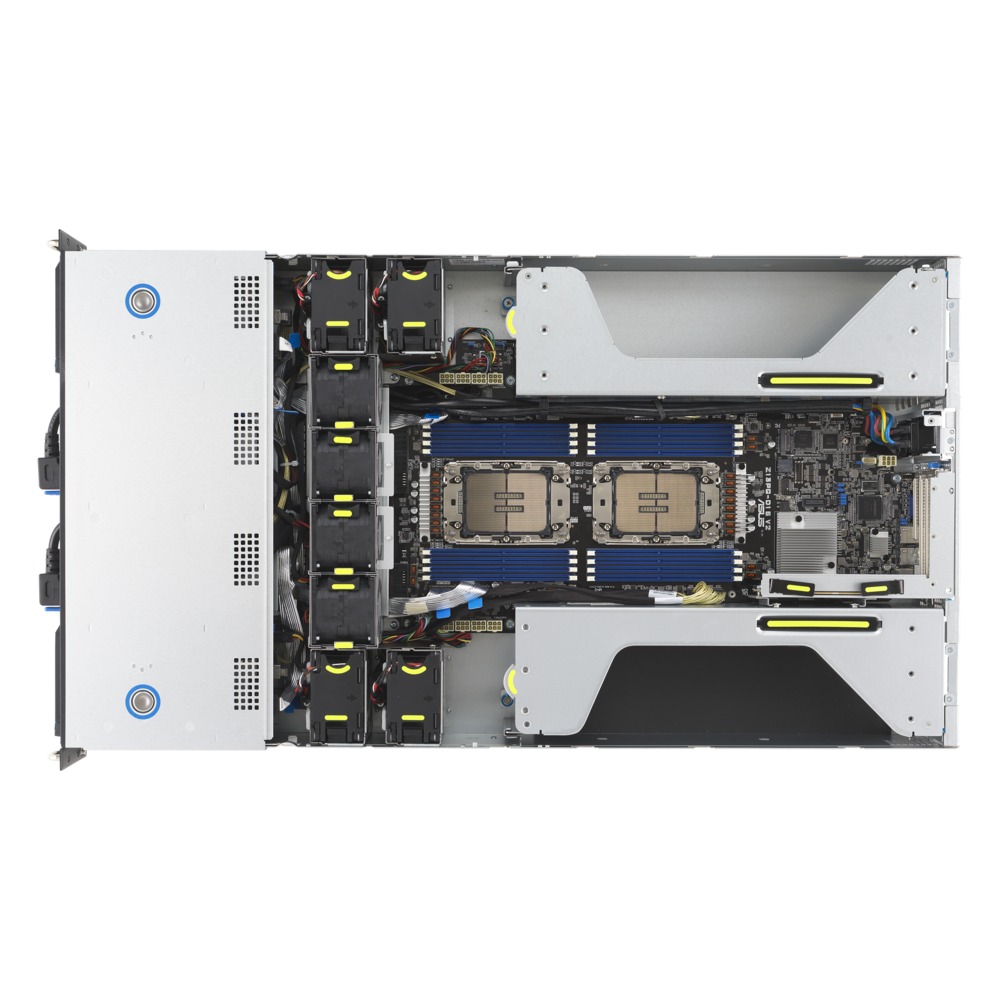

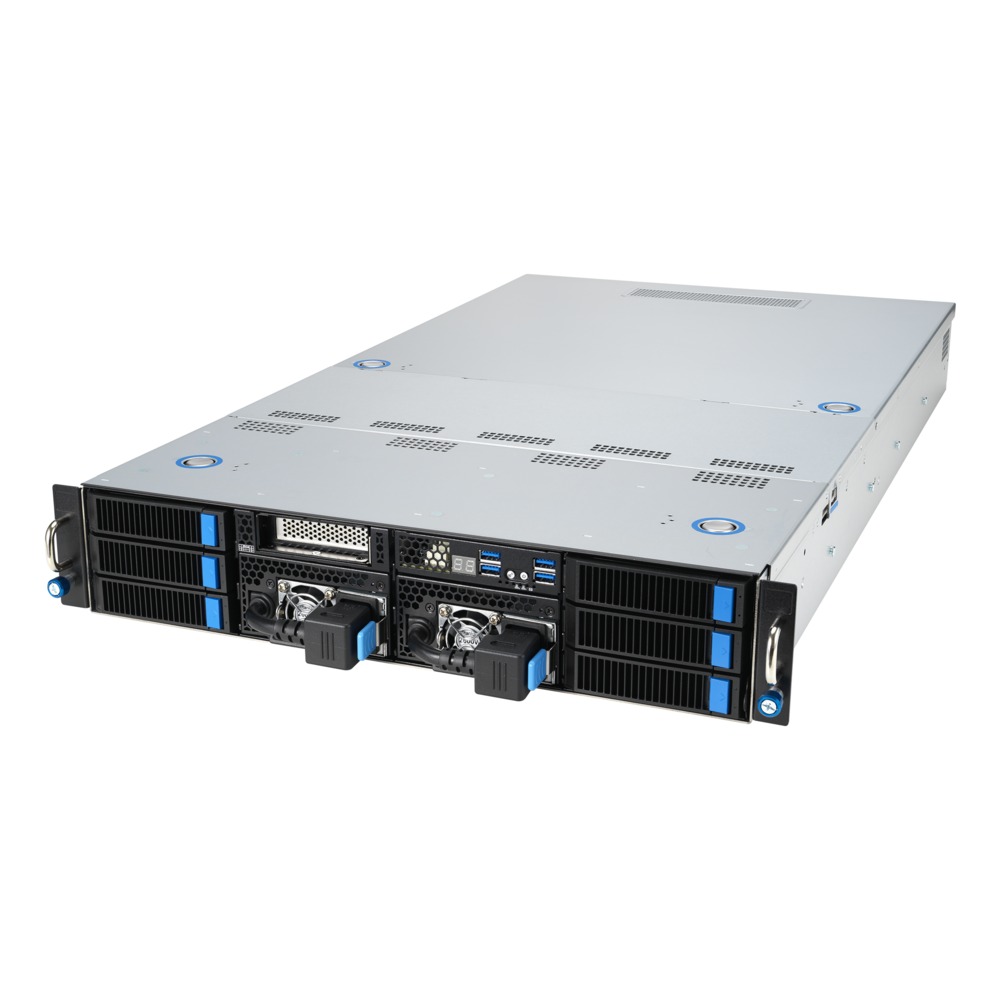

The ASUS ESC4000-E11 is a 2U rackmount server built to accommodate up to four dual-slot GPUs. It utilizes a pair of Intel Xeon Scalable processors, which supports a huge number of PCI-Express Gen 5 lanes as well as 8 DDR5 memory channels each - ensuring plenty of bandwidth for running multiple graphics cards and intense workloads.
Storage options include one M.2 slot and six front-accessible hot-swap bays. Two of the front bays house 2.5-inch drives and support both SATA and U.2 connections. The other four are 3.5-inch size, with all four supporting SATA and two also supporting U.2.

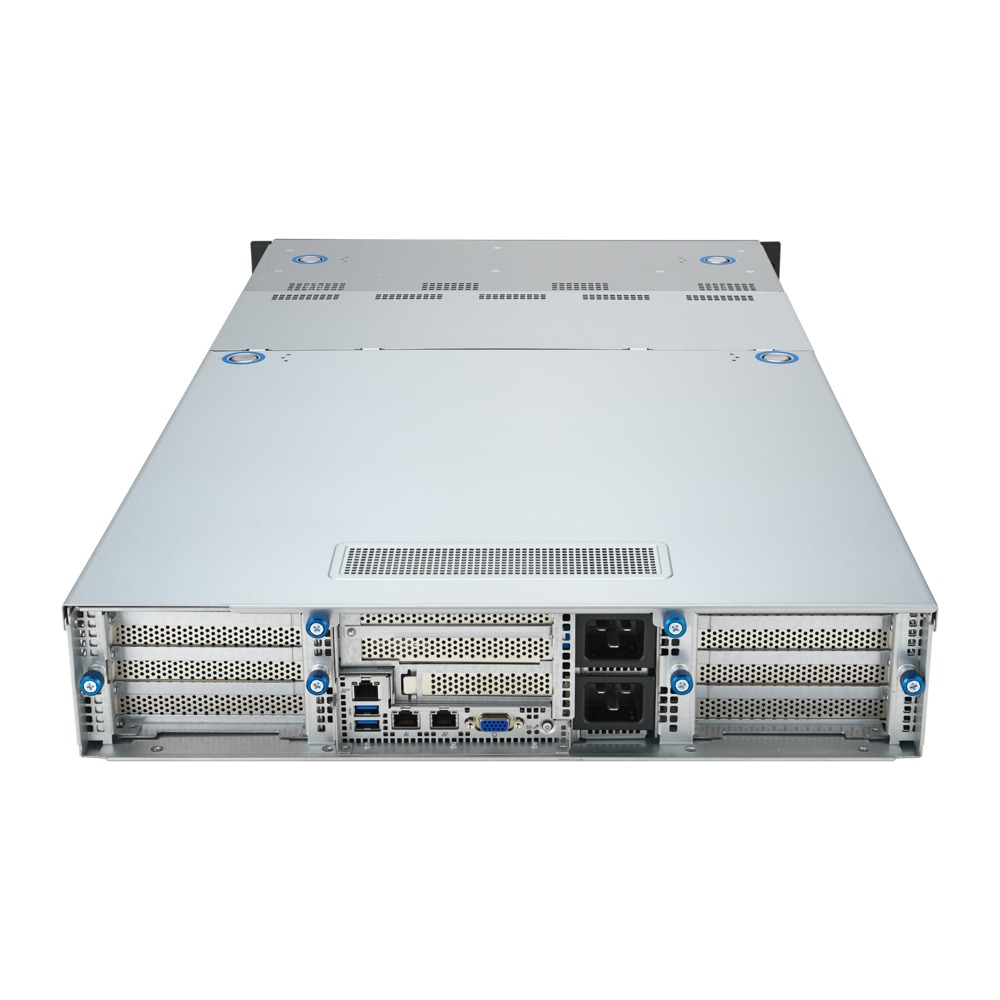

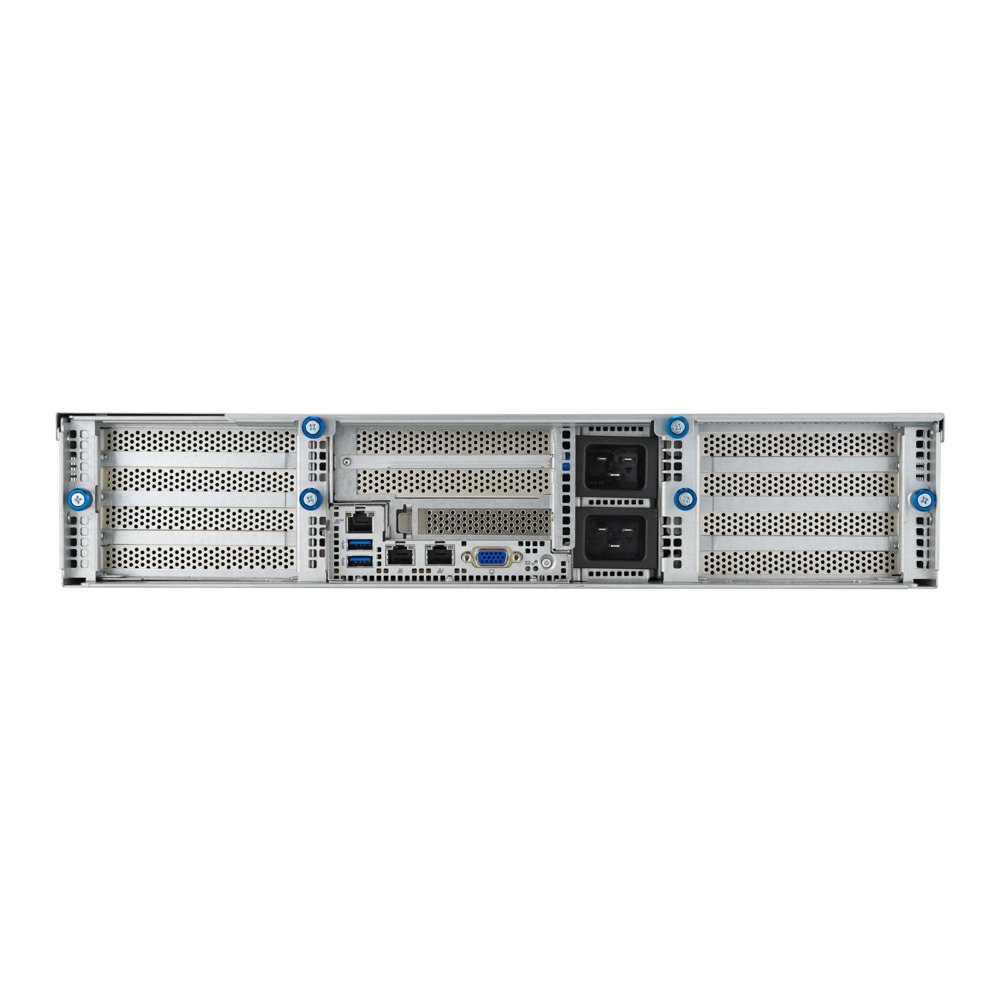

External connectivity consists of six USB ports (4 in front, 2 in back), two Gb LAN ports, and another LAN for remote management. There are three more PCIe slots for additional networking and expansion needs.
Storage options include one M.2 slot and six front-accessible hot-swap bays. Two of the front bays house 2.5-inch drives and support both SATA and U.2 connections. The other four are 3.5-inch size, with all four supporting SATA and two also supporting U.2.
External connectivity consists of six USB ports (4 in front, 2 in back), two Gb LAN ports, and another LAN for remote management. There are three more PCIe slots for additional networking and expansion needs.
Note: Includes sliding rail kit for easy mounting to most server racks.
Model: Asus ESC4000-E11-26WGP
Specifications
| Socket | 4677 |
| CPU Compatibility | Xeon Scalable 4th/5th Gen |
| Form Factor | 2U |
| Chipset Manufacturer | Intel |
| Chipset | C741 |
| Wired Network Connectivity | Onboard Dual Gigabit Ethernet (RJ45) |
| Network Controller | Intel I350 |
| Audio Controller | N/A |
| Cooling System | Heatsink and Fan |
| Number of Fans | 8 |
| Color | Black |
| Windows Support | Windows Server 2022 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 5600 MHz |
| Number of Slots | 16 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 2048 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Onboard Memory | 64 MB |
| VGA | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 6 |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
Internal Connections | |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 1 |
| M.2 Support | 1x 60-80mm PCIe 3.0 |
| Maximum M.2 Length | 80 mm (3.1 in) |
| U.2 Connector | 2 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x8 in a x16 size |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x8 in a x16 size |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | PCI Express 5.0 x8 in a x16 size |
| Slot 7 | PCI Express 5.0 x16 |
| Slot 8 | PCI Express 5.0 x8 in a x16 size |
| Slot 9 | PCI Express 5.0 x16 |
| Slot 11 | PCI Express 5.0 x8 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Built-in Webcam | No |
| Built-in Microphone | No |
| Bluetooth | No |
| Dual GPU Slot Spacing | 2-Slot |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 88.9 mm (3.5 in) |
| Width | 439.5 mm (17.3 in) |
| Depth | 800 mm (31.5 in) |
| Net Weight | 26 kg (57.3 lbs) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1000 W |
| Wattage at 240V | 2600 W |
| Redundancy | 1+1 |
External Drive Bays

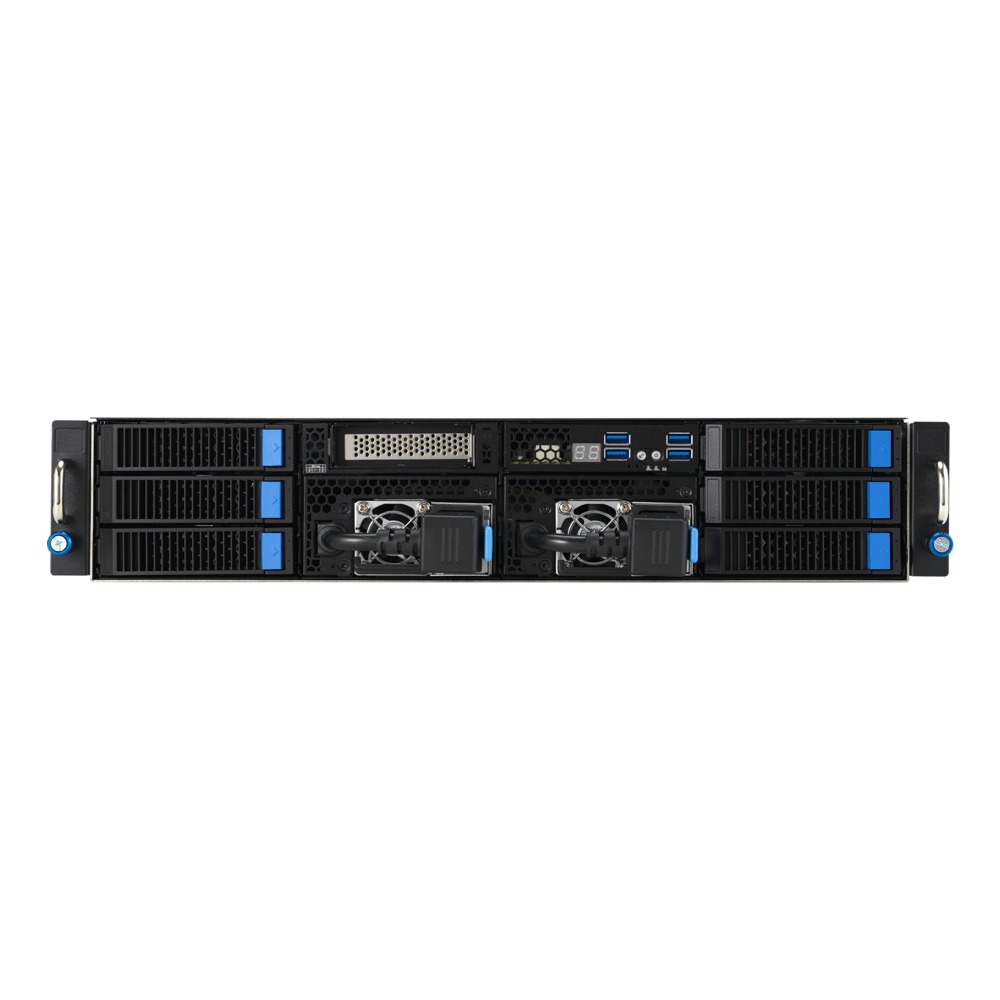

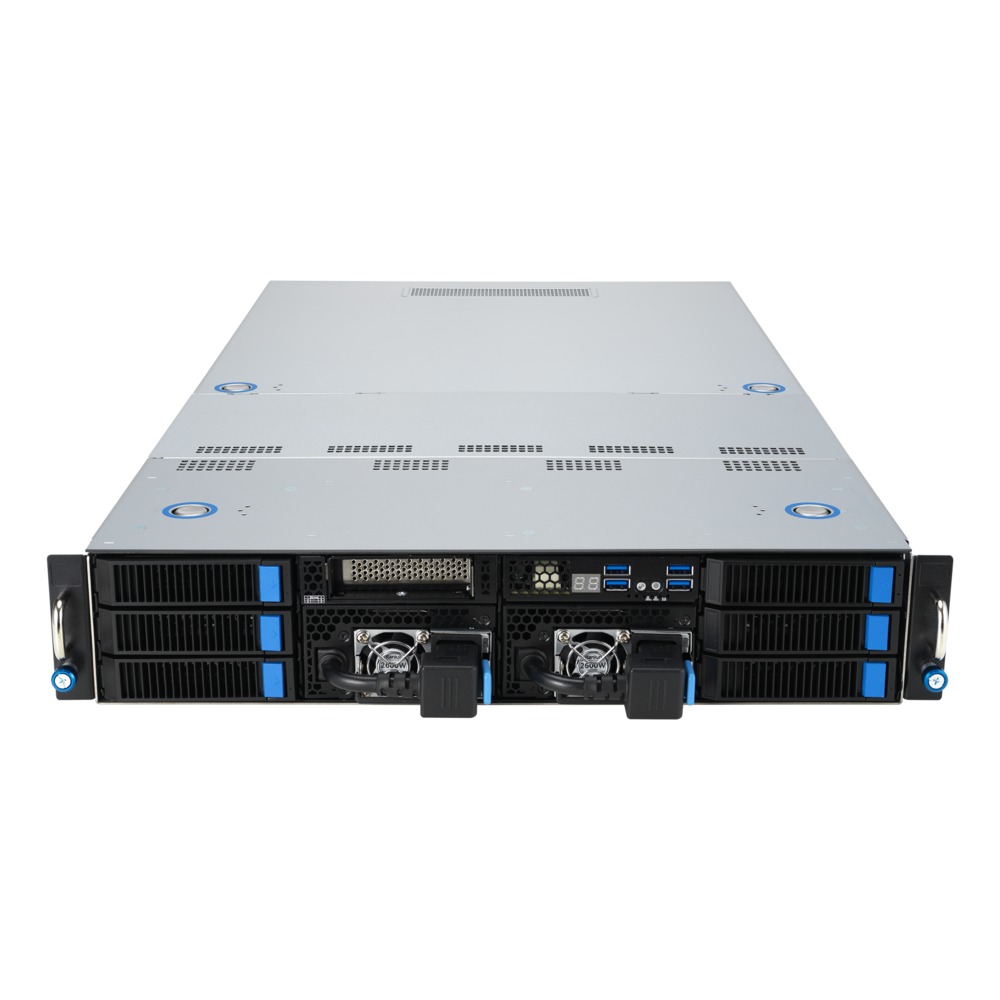

Front:
2x 2.5" hot-swap bays (NVMe/SATA/SAS*)
2x 3.5" hot-swap bays (NVMe/SATA/SAS*)
2x 3.5" hot-swap bays (SATA/SAS*)
- NVMe via U.2, PCIe 5.0 link
- Additional 2x NVMe support requires RAID card
- *SAS support only from optional SAS HBA/RAID card
