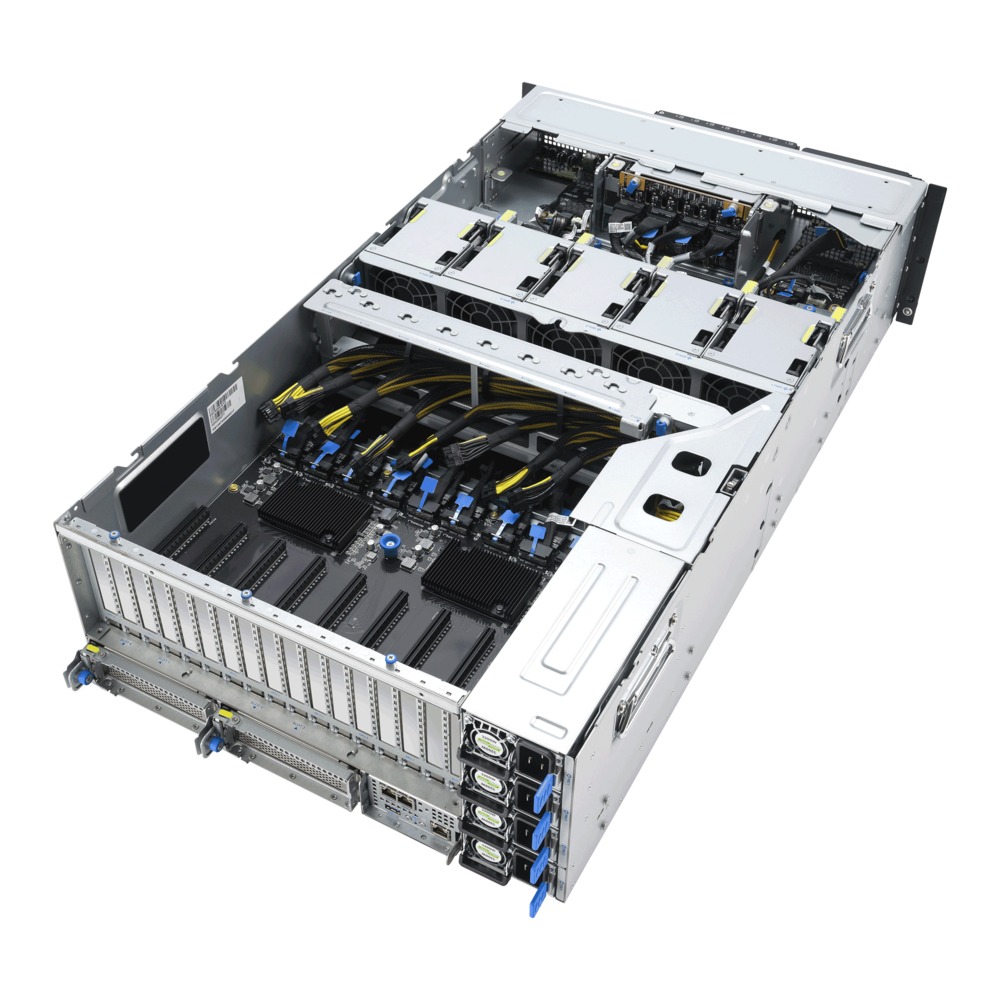

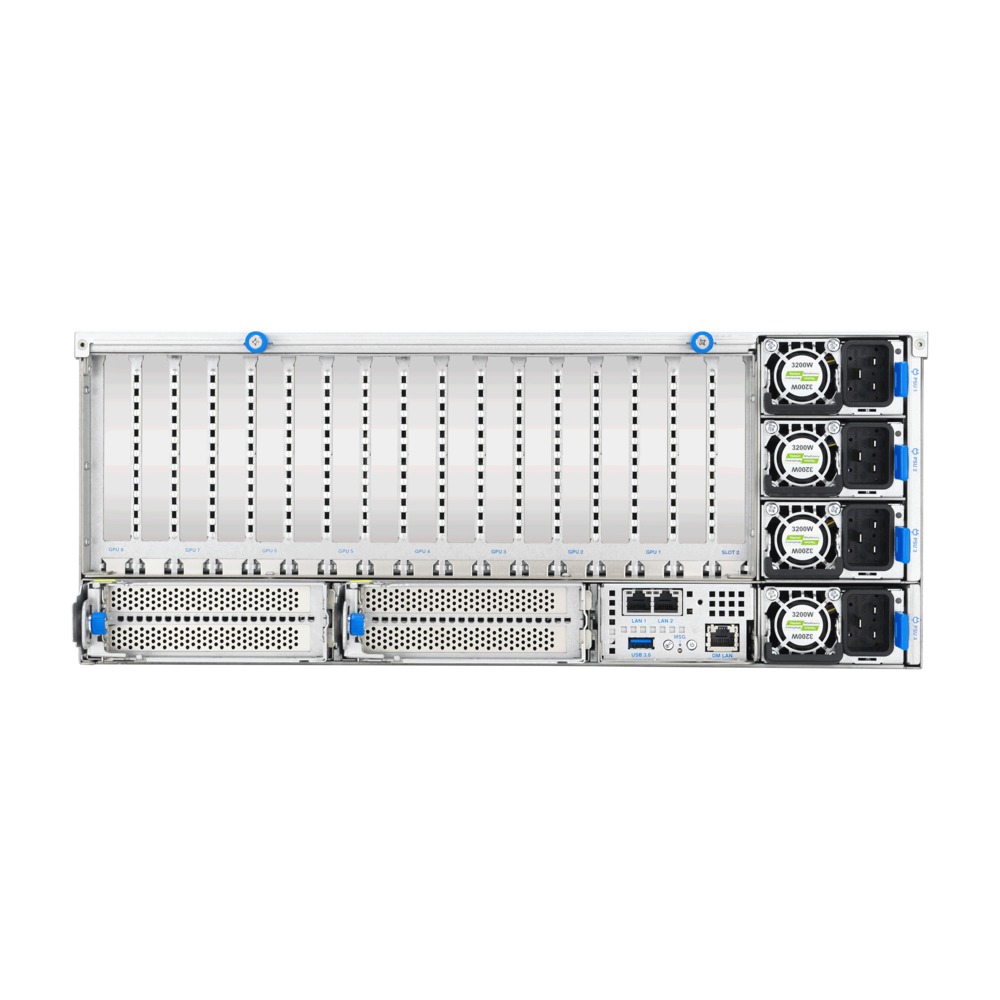

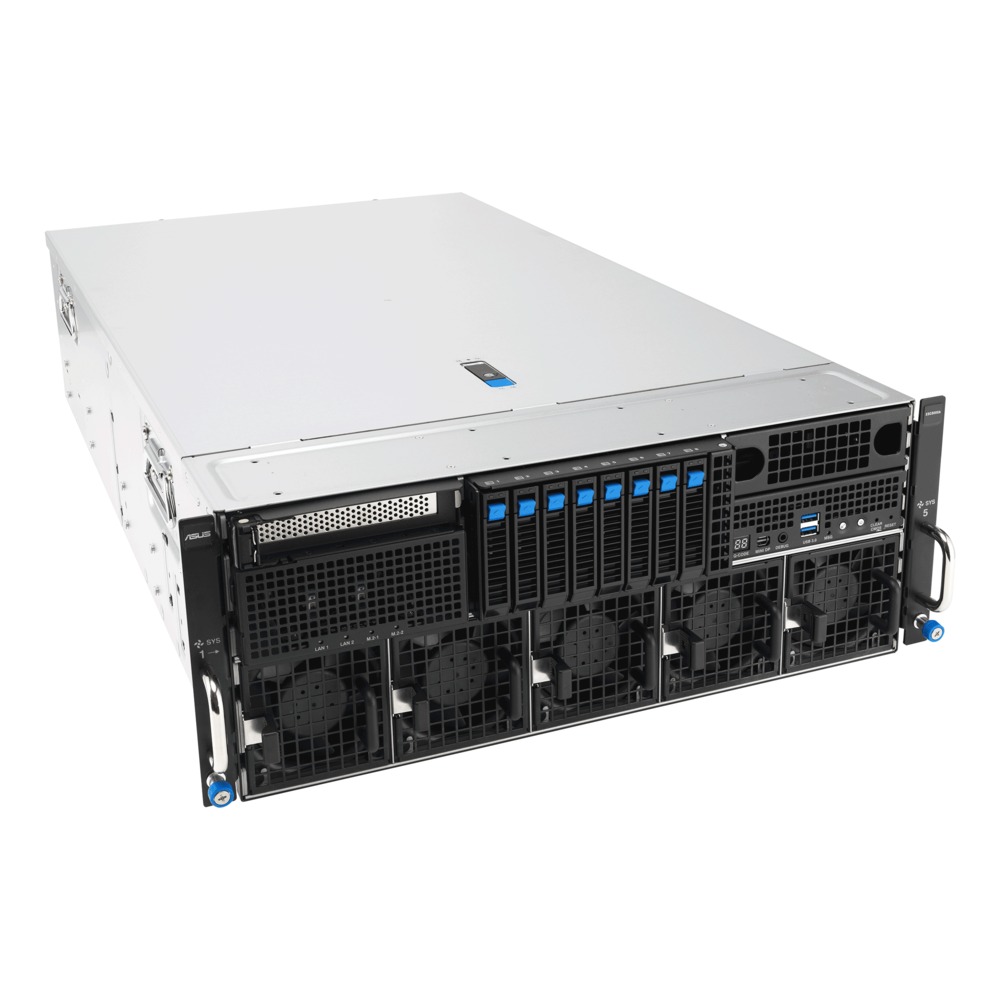

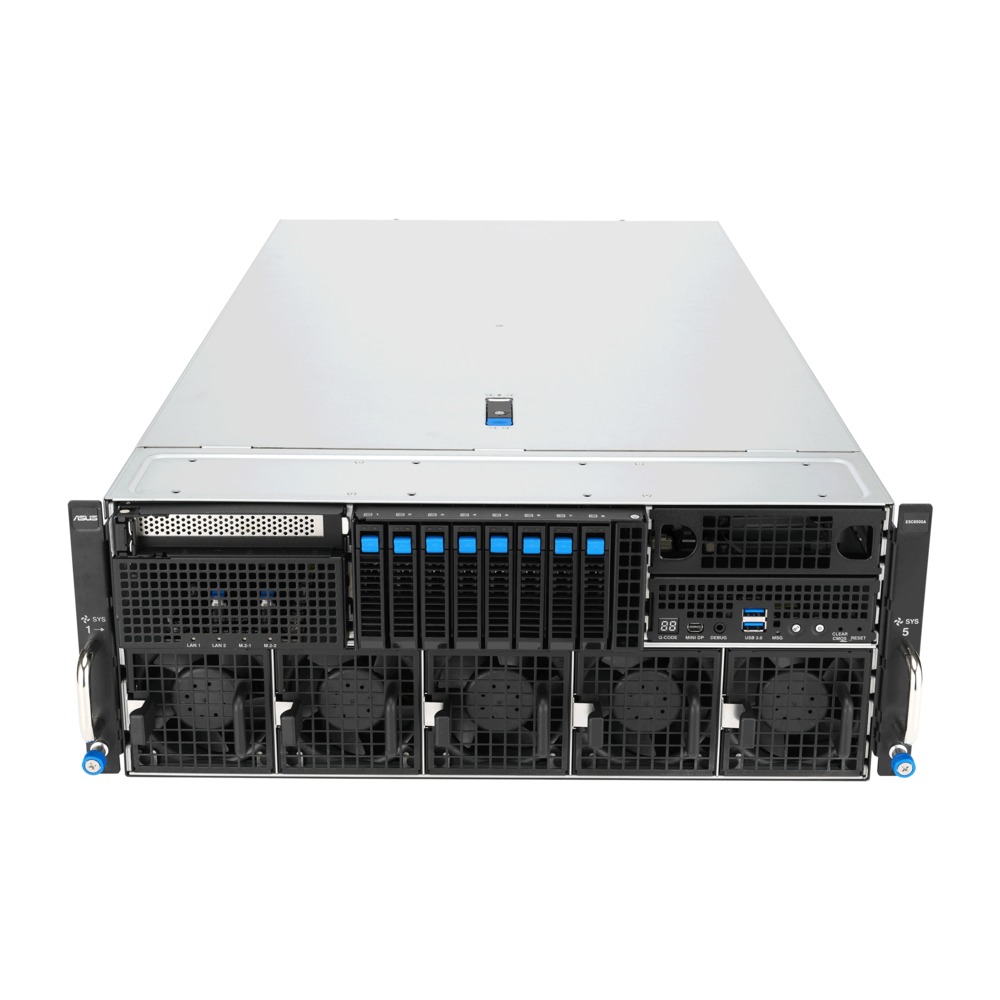

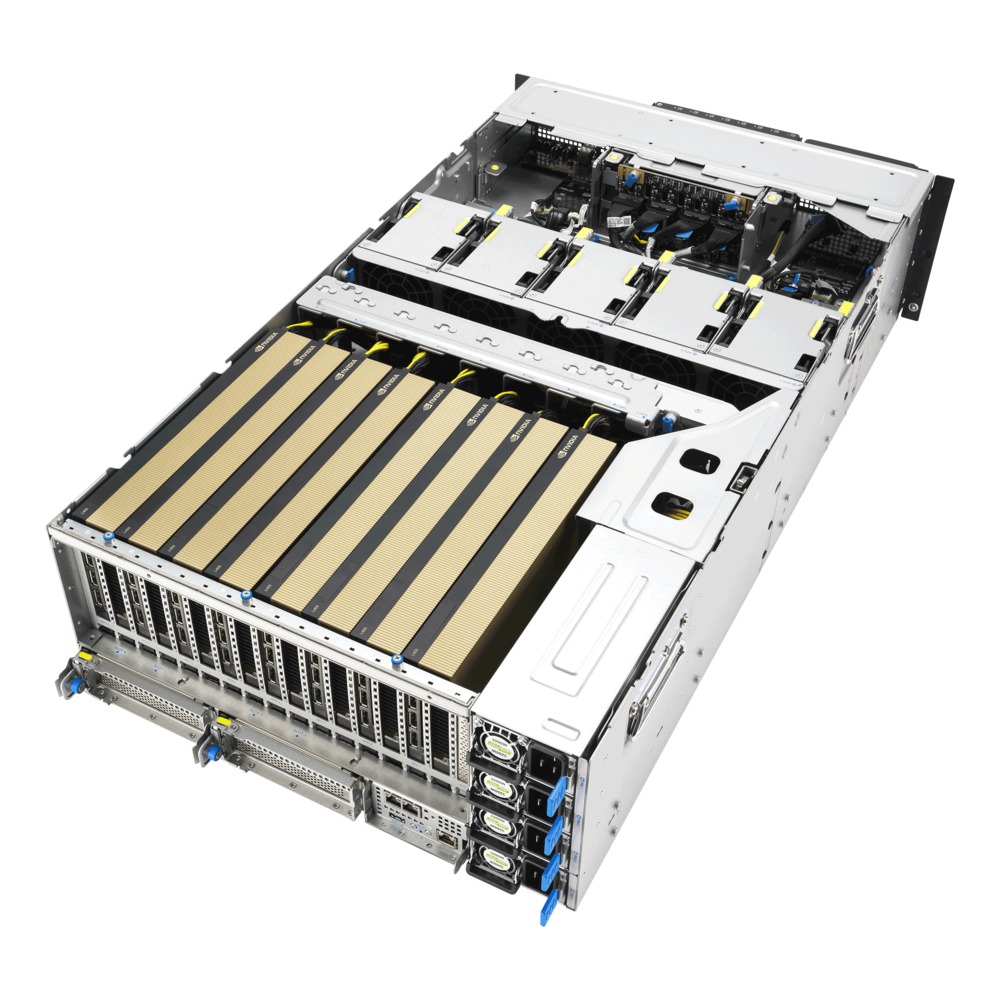

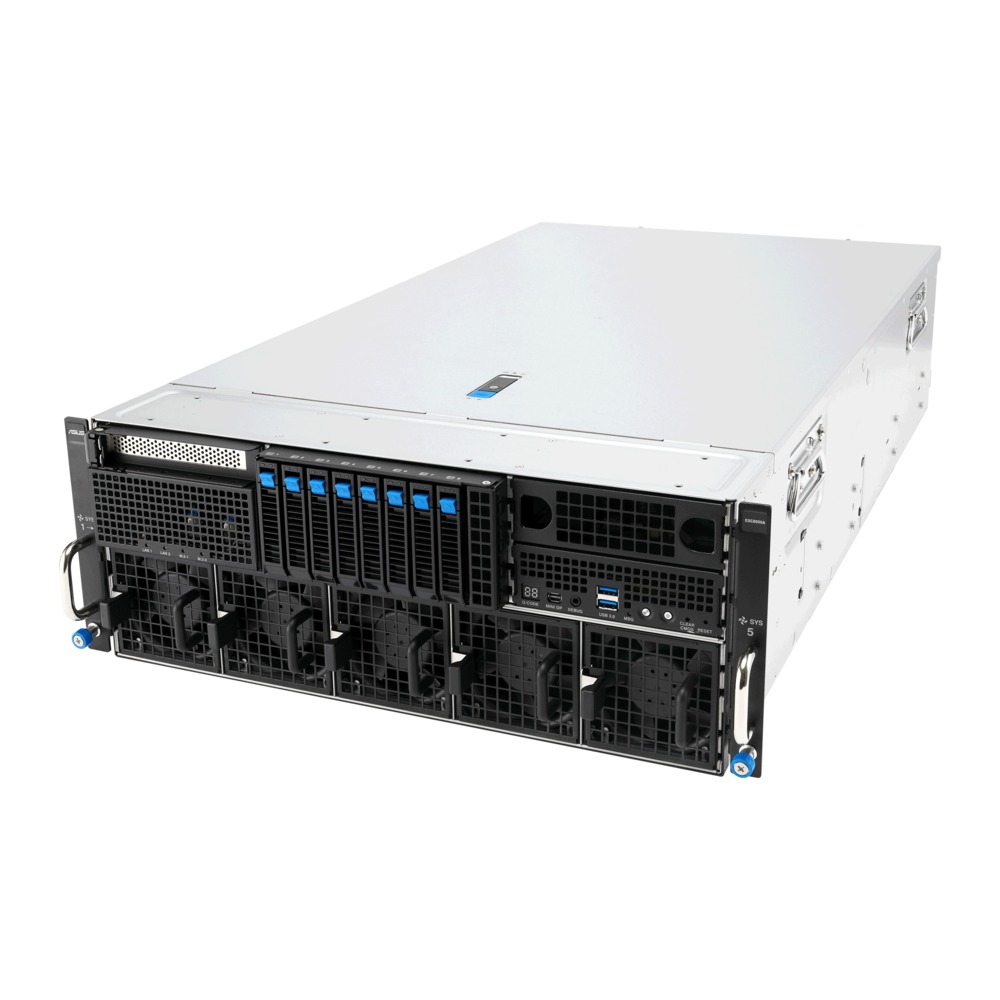

AMDs EYPC 9005 line of processors are built for demanding server workloads, offering up to 192 cores with support for 12 DDR5 memory channels and 128 PCIe Gen 5 lanes. This server uses a pair of those CPUs to enable up to eight high-performance, dual-width GPUs in a 4U rackmount chassis. Several hot-swap drive bays are easily accessible on the front, along with a pair of USB ports. Networking and the array of four power supplies are accessible from the back.
Model: Asus ESC8000A-E13P
Specifications
| Socket | SP5 |
| CPU Compatibility | AMD EPYC 9005 Series (Up to 500W) |
| Form Factor | 4U |
| Wired Network Connectivity | Dual 10G Networking |
| Network Controller | Intel X710-AT2 |
| Cooling System | Heatsink and Fan |
| Number of Fans | 5 |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 24 |
| Maximum Size per Slot | 128 GB |
| Maximum Amount Supported | 6144 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Mini DisplayPort | 1 |
| Notes: | Mini Displayport outputs Aspeed Graphics |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 3 |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| BIOS Flashback | No |
Internal Connections | |
| M.2 Connector | 2 |
| M.2 Support | 2x 110mm PCIe 5.0 |
| Maximum M.2 Length | 110 mm (4.3 in) |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x16 |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | PCI Express 5.0 x16 |
| Slot 7 | PCI Express 5.0 x16 |
| Slot 8 | PCI Express 5.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 175 mm (6.9 in) |
| Width | 439.5 mm (17.3 in) |
| Depth | 800 mm (31.5 in) |
| Net Weight | 42 kg (92.6 lbs) |
Power Supply | |
| Input Voltage | 200-240 Vac |
| Wattage at 240V | 9600 (3200 Each) W |
| Redundancy | 3+1 |
External Drive Bays
Front Bays:
8x 2.5" hot-swap bays (NVMe)
- NVMe via U.2, PCIe 5.0 link
Expansion Slots
Up to 14 slots
Rear:

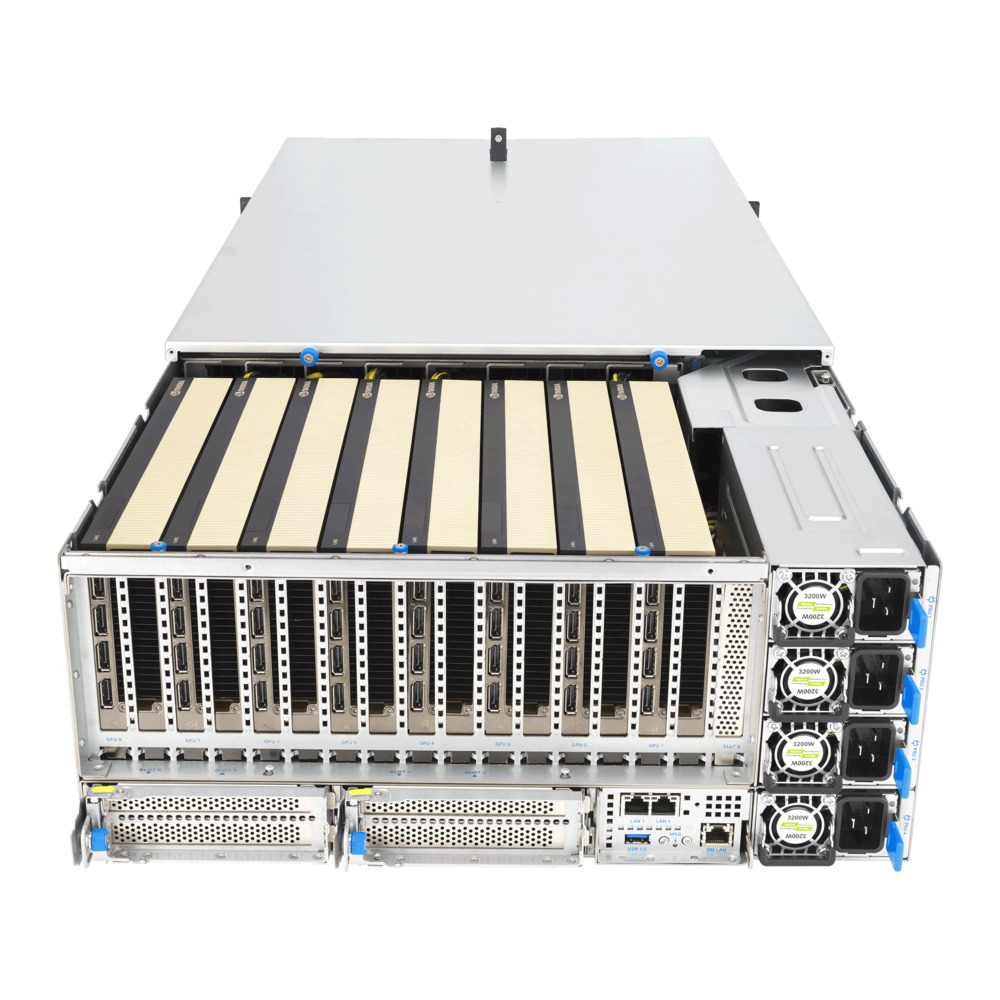

8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL)
Front:
1 x PCIe x8 (Gen5 x8 link, FH/HL)
Aspeed graphics may require an active adapter if a non-DP output is desired
