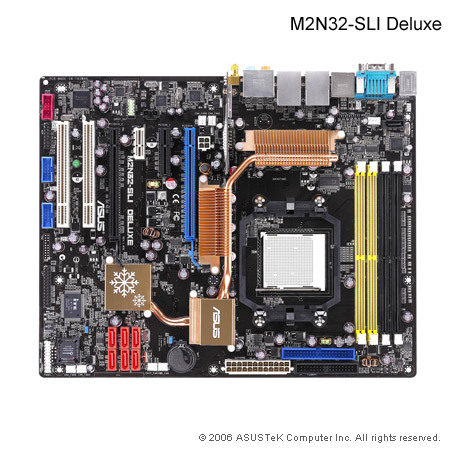

Model: Asus M2N32-SLI DLX WIFI
Specifications
| Socket | AM2 |
| CPU Compatibility | Athlon64, Athlon64 X2, Athlon64 FX, Sempron64 |
| Form Factor | ATX |
| Chipset Manufacturer | nVidia |
| Chipset | nForce 590 SLI |
| Front Side Bus | 2000Mhz HT |
| Wired Network Connectivity | Gigabit Networking + 802.11 B/G |
| Cooling System | Heat Pipes |
Memory Support | |
| Type | DDR2 |
| Maximum Speed | 800 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 8 GB |
External Connections | |
| USB 2.0 | 4 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical and Coaxial |
| External SATA | 1 |
| Wireless Antenna Port | Yes |
| Serial (COM) Port | 1 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| Firewire | 1 |
| Floppy | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI |
| Slot 2 | PCI |
| Slot 3 | PCI Express x16 |
| Slot 4 | PCI Express x1 |
| Slot 5 | PCI Express x4 |
| Slot 6 | PCI Express x16 |
| Slot 7 | Slot not available on this board |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | No |
| RAID Support | 0, 1 (on up to 6 SATA ports) |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 245 mm (9.6 in) |
Features
- Support AMD Socket AM2
- NVIDIA nForce 590 SLI[tm] MCP
- NVIDIA LinkBoost[tm] Technology
- 2 x PCI Express x16 slot with NVIDIA SLI[tm] support, at full x16, x16 speed
- Dual-channel DDR2 800/667/533
- ASUS 8-Phase Power Design
- WiFi-AP Solo[tm] supports IEEE802.11b/g
- AMD Live![tm] Ready
- Bundled ASUS Array Mic
External Connections
Gigabit LAN (RJ45): 2
Internal Connections
SATA2: 7
