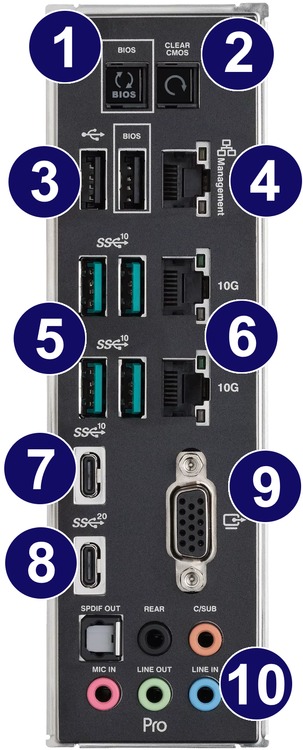

ASUS Pro WS W790E-SAGE SE Ports
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
iKVM LAN Port (RJ-45): RJ-45 plug for remote management of computer via iKVM (Keyboard/Video/Mouse over IP).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
10G LAN Ports (RJ-45): RJ-45 plugs for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
ASUS Pro WS W790E-SAGE SE Schematic
A wide range of connectivity is provided as well: six standard USB ports, two of the new USB Type C, dual 10Gb Ethernet, and both analog and digital audio. The only noticeable omissions are WiFi and Bluetooth, but those can be added via a USB dongle if needed. Internally it has eight SATA ports and three M.2 connectors, supporting a flexible array of storage options.
Model: Asus PRO WS W790E-SAGE
Specifications
| Socket | 4677 |
| CPU Compatibility | Sapphire Rapids |
| Form Factor | SSI EEB |
| Chipset Manufacturer | Intel |
| Chipset | W790 |
| Front Side Bus | DMI 4.0 |
| Network Connectivity | Dual 10G Networking |
| Network Controller | Intel X710-AT2 |
| Audio Controller | Onboard Realtek S1220A HD Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 4800 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 2048 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| VGA | 1 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 4 |
| USB 3.2 Gen 2 Type C | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 3 |
| M.2 Support | 2x 42-110mm PCIe 5.0, 1x 42-110mm PCIe 4.0 |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
| SlimSAS | 2 |
| Notes: | SlimSAS Supports PCIe 4.0 x4 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel W790 |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x16 |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | PCI Express 5.0 x8 in a x16 size |
| Slot 7 | PCI Express 5.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Bluetooth | No |
| Dual GPU Slot Spacing | 4-Slot |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
| Net Weight | 2.793 kg (6.2 lbs) |
