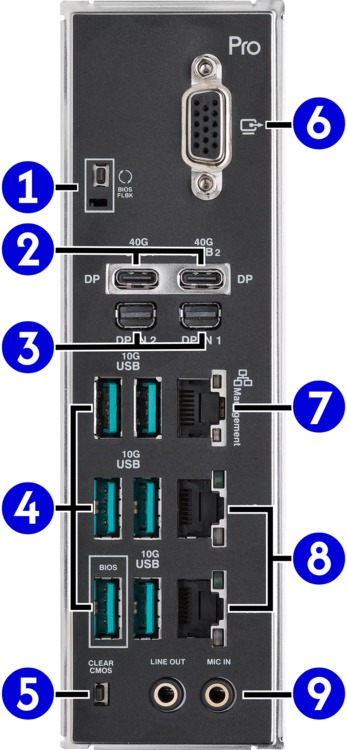

ASUS Pro WS W890E-SAGE SE Ports
BIOS Flashback LED: Status LED for the motherboard BIOS Flashback feature
USB 4.0 Port(s): USB 4.0 is capable of transfer speeds of up to 40 Gbps and optionally supports video out.
Mini Displayport IN: Connect a Mini DisplayPort cable from your video card to passthrough to the USB-C port.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
10G LAN Ports (RJ-45): RJ-45 plugs for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

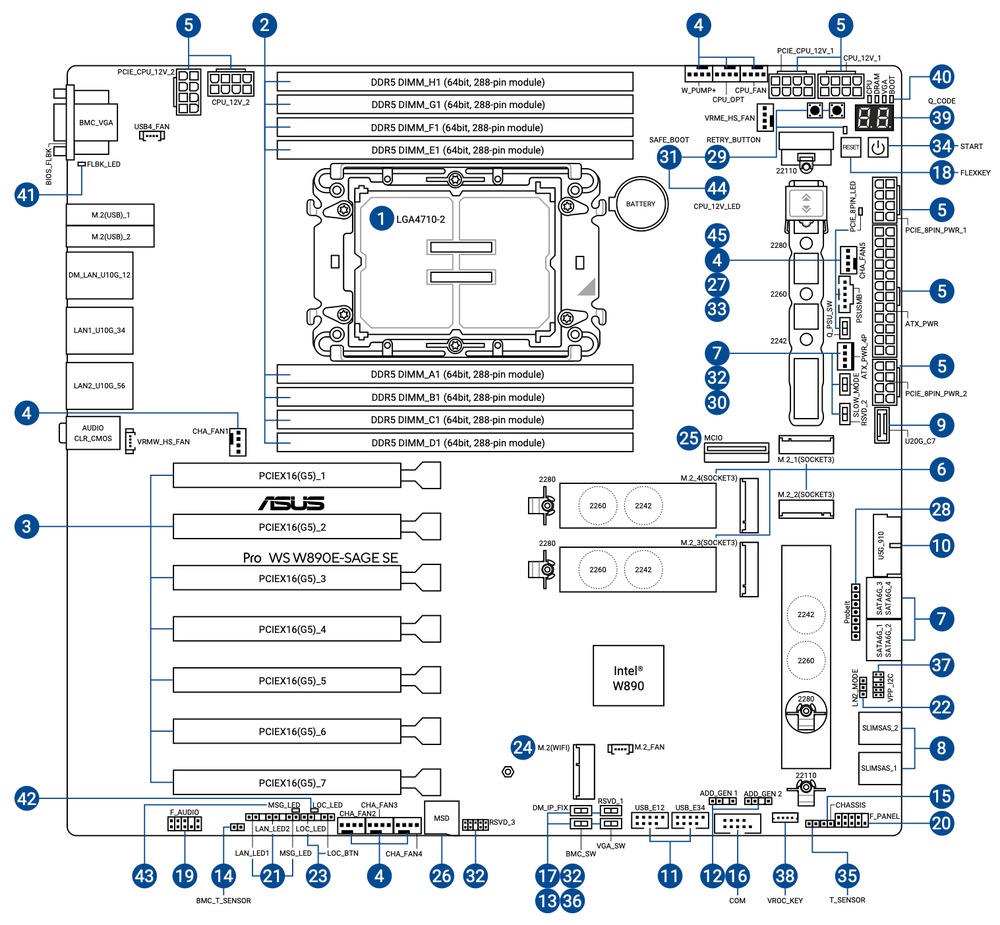

ASUS Pro WS W890E-SAGE SE Schematic
A wide range of connectivity is provided as well: six standard USB ports, two of the new USB Type C, dual 10Gb Ethernet, and basic audio (line out and mic in). The only noticeable omissions are WiFi and Bluetooth, but those can be added via a USB dongle if needed. Internally it has four M.2 slots, four SATA ports, and two SlimSAS connectors supporting a flexible array of storage options.
Specifications
| Socket | 4710-2 |
| CPU Compatibility | Intel Xeon 600 Processors for Workstation |
| Form Factor | SSI EEB |
| Chipset Manufacturer | Intel |
| Chipset | W890 |
| Wired Network Connectivity | Dual 10G Networking |
| Network Controller | Intel E610 |
| Audio Controller | Realtek ALC1220P |
| Cooling System | Heatsink and Fan |
| Number of Fans | 4 |
| Color | Black |
| Windows Support | Windows 11 |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 128 GB |
| Maximum Amount Supported | 1024 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| VGA | 1 |
| USB | 4.0 |
| Notes: | Displayport IN for USB 4 video support |
External Connections | |
| USB 3.2 Gen 2 (USB 3.1) | 6 |
| USB 4 | 2 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 4 |
| M.2 Support | 2x 42-110mm PCIe 5.0, 2x 42-80mm PCIE 5.0 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| Serial (Com) | 1 |
| SlimSAS | 2 |
| VROC Key Header | Yes |
| Notes: | SlimSAS Supports PCIe 4.0 x4 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel W890 |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x16 |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | PCI Express 5.0 x8 in a x16 size |
| Slot 7 | PCI Express 5.0 x16 |
Additional Information | |
| RAID Support | 0/1/5/10 |
| Bluetooth | No |
| Integrated IO Shield | Yes |
| Remote Management | Included |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
| Net Weight | 3.123 kg (6.9 lbs) |
