ASUS ROG STRIX B850-I GAMING WIFI

Motherboard

ASUS ROG STRIX B850-I GAMING WIFI Main Picture


ASUS ROG STRIX B850-I GAMING WIFI Picture 87997ASUS ROG STRIX B850-I GAMING WIFI Picture 87998
Sorry, we have no advice for this part!

Model: Asus ROG STRIX B850-I GAMING WIFI

Specifications

Socket AM5
CPU Compatibility Ryzen 9000
Form Factor Mini-ITX
Chipset Manufacturer AMD
Chipset B850
Network Connectivity 2.5G Networking + WiFi 7
Audio Controller Onboard Realtek HD Audio
Cooling System Heatsink and Fan
Number of Fans 1
Color Black
Memory Support
Type DDR5
Maximum Speed 5600 MHz
Number of Slots 2
Maximum Size per Slot 48 GB
Maximum Amount Supported 96 GB
Onboard Video
Chipset Manufacturer AMD
Processor Type Processor Dependent
Maximum Resolution 7,680 x 4,320
Maximum HDMI Resolution  4096x3112
HDMI 1
HDMI Version 2.1
DisplayPort Version 1.4a
USB 3.2 gen2
Notes: USB 3.2 Gen2 Type-C Support DisplayPort 1.4a Output

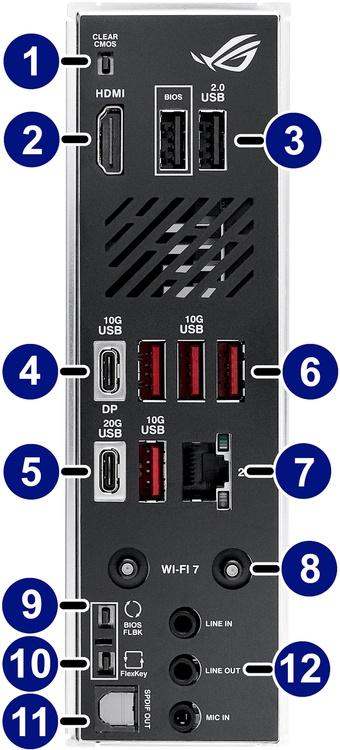

External Connections
USB 2.0 2
USB 3.2 Gen 2 (USB 3.1) 4
USB 3.2 Gen 2 Type C 1
USB 3.2 Gen 2x2 Type C 1
Audio Out Stereo
Audio In Line-In/Microphone
LAN (RJ45) 1
Wireless Antenna Port Yes
BIOS Flashback Yes
Internal Connections
USB 2.0 1 (providing 2 ports)
USB 3.2 Gen 1 (USB 3.0) 1
USB 3.2 Gen 2 Type C 1
SATA III 6.0Gbps 2
M.2 Connector 2
M.2 Support 1x 80mm (PCIe 5.0), 1x 80mm (PCIe 4.0)
SATA Controllers
SATA III 6.0Gbps Controller 1 AMD B850
Expansion Slots
Slot 1 PCI Express 5.0 x16
Additional Information
RAID Support 0/1/5/10
Bluetooth Yes (5.4)
Integrated IO Shield Yes
BIOS Features
UEFI BIOS Yes
EZ Flash Yes
OC Profiles Yes
Dimensions
Height 170 mm (6.7 in)
Width 170 mm (6.7 in)
Net Weight 0.804 kg (1.8 lbs)
