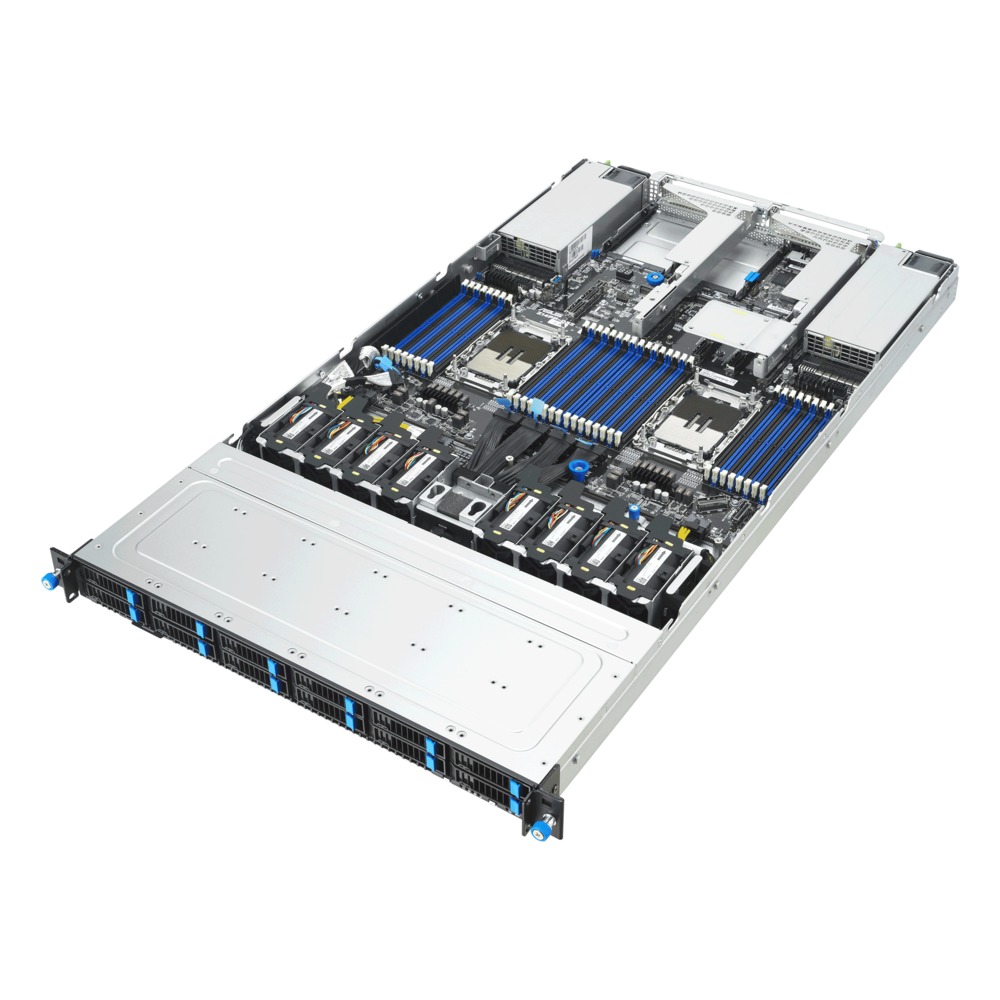

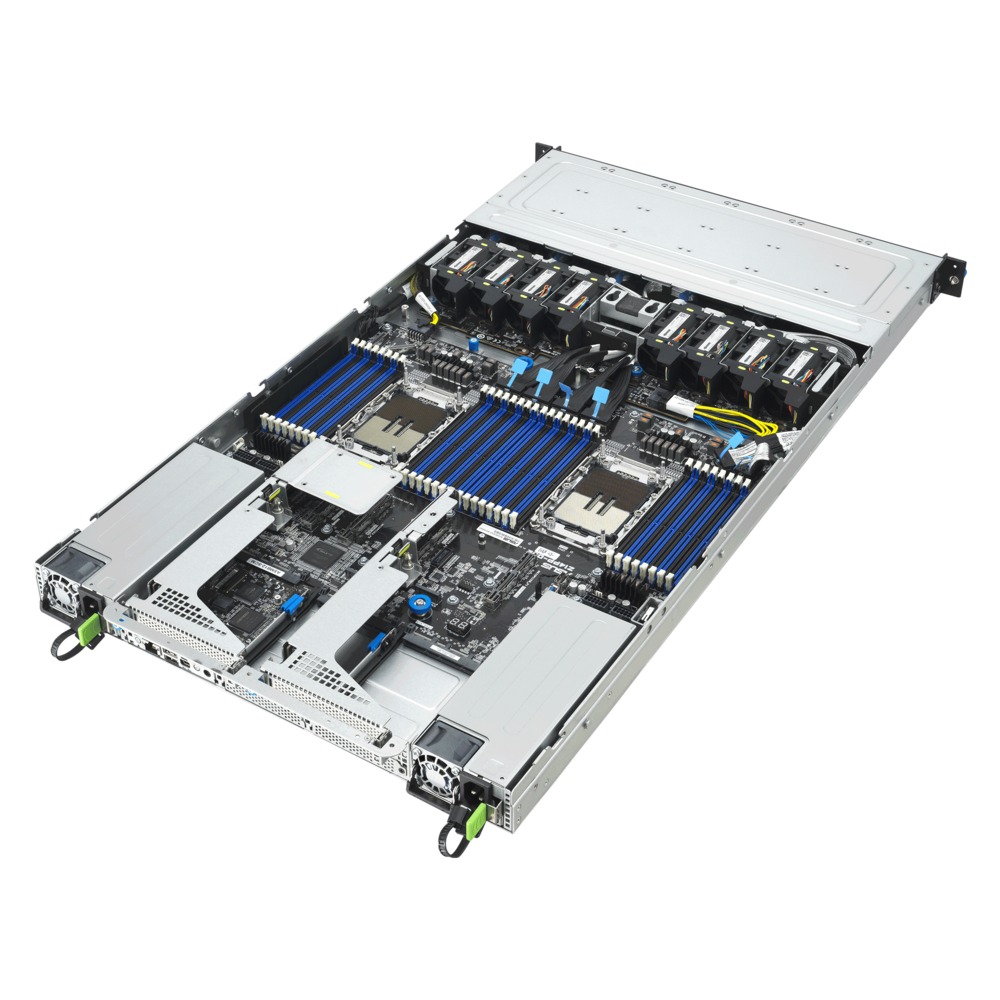

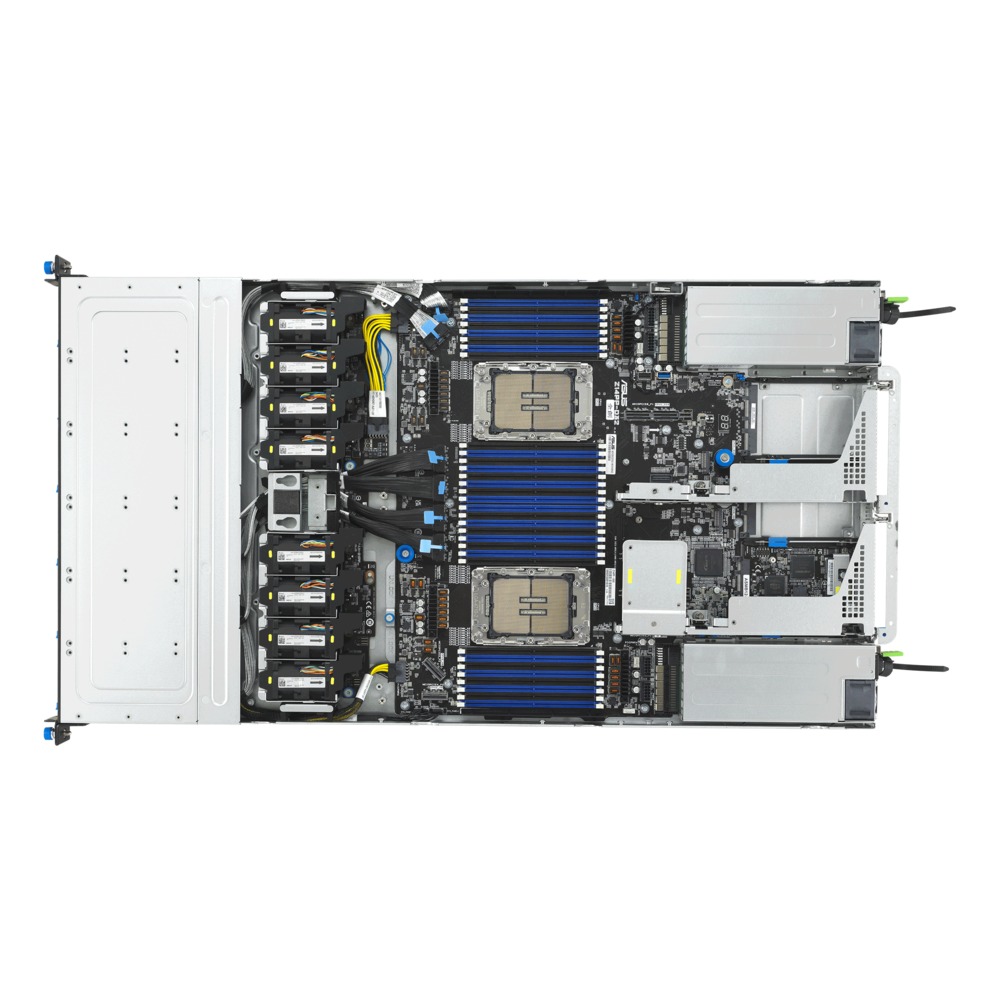

The ASUS RS700-E12-RS12U is a 1U rackmount server built to utilize a pair of Intel Xeon 6 processors at up to 350W. Each of those offers up to 86 performance cores or 144 efficiency cores and supports 8 DDR5 channels - ensuring plenty of processing power and memory bandwidth for running CPU-intensive workloads.

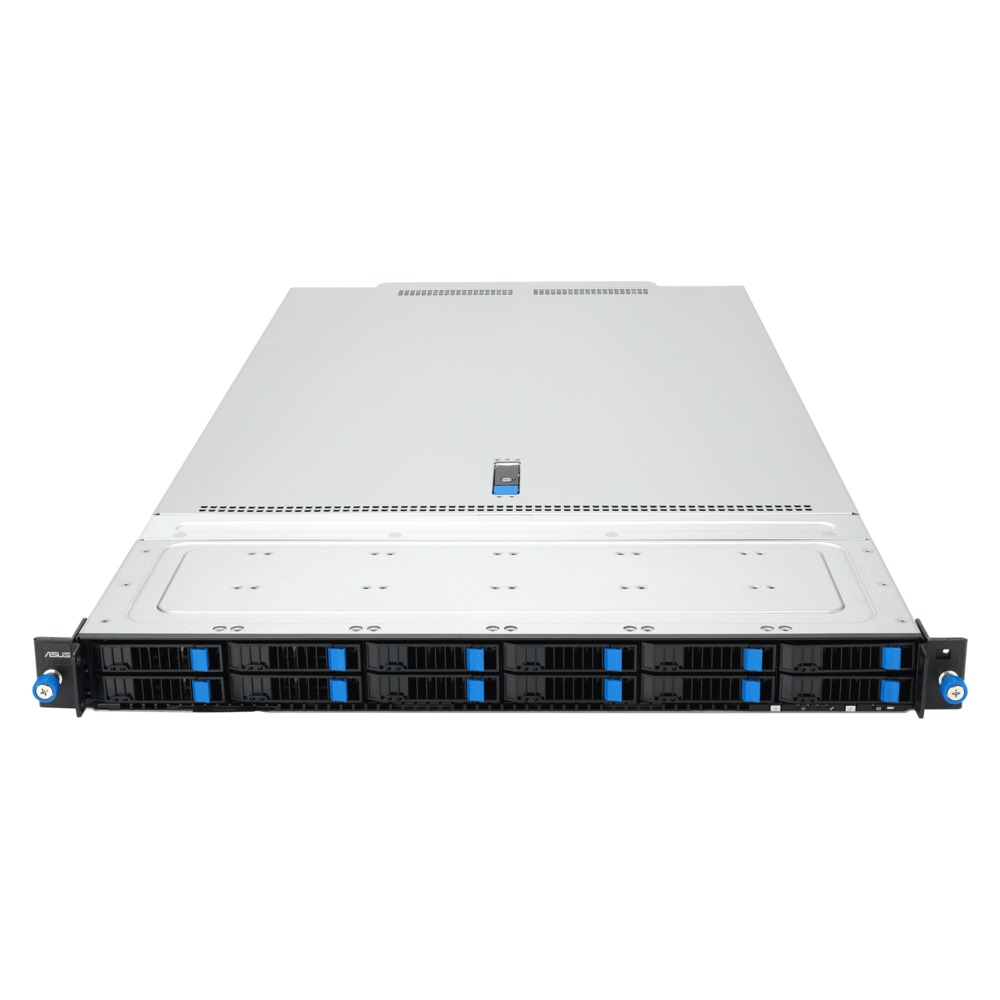

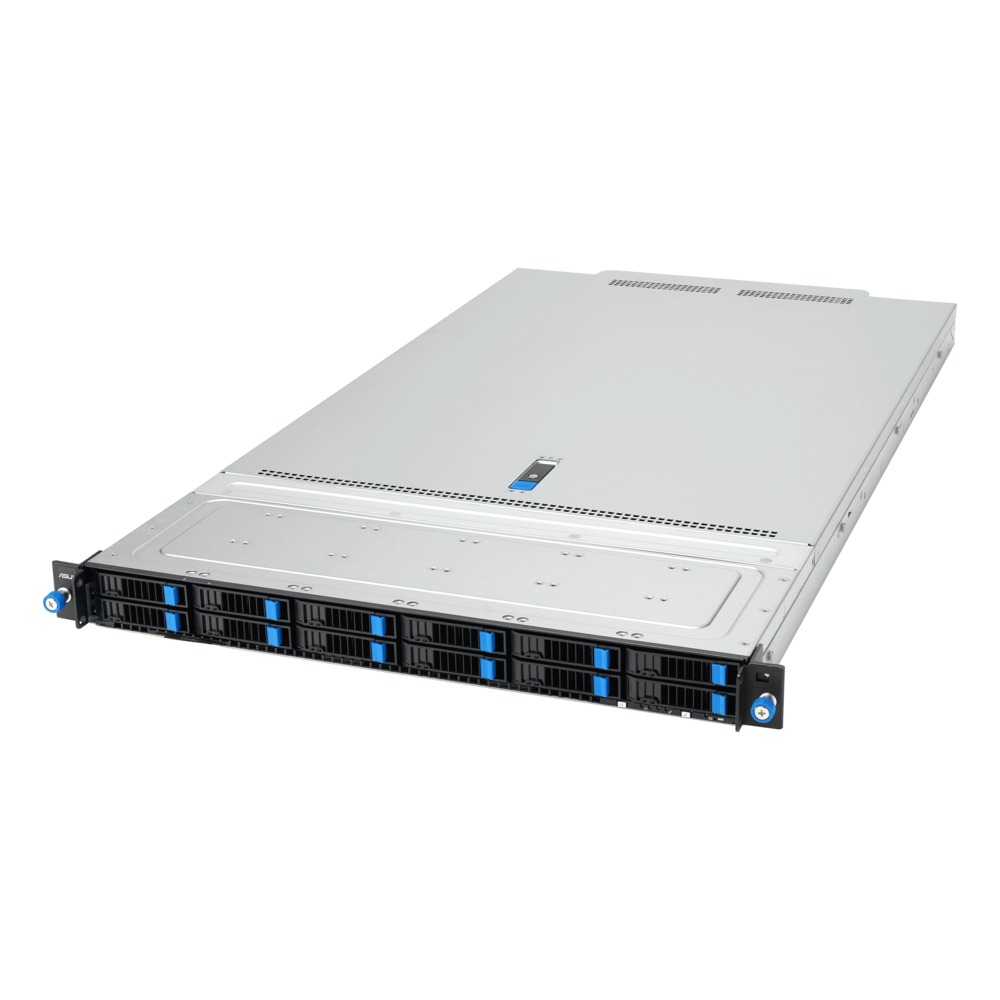

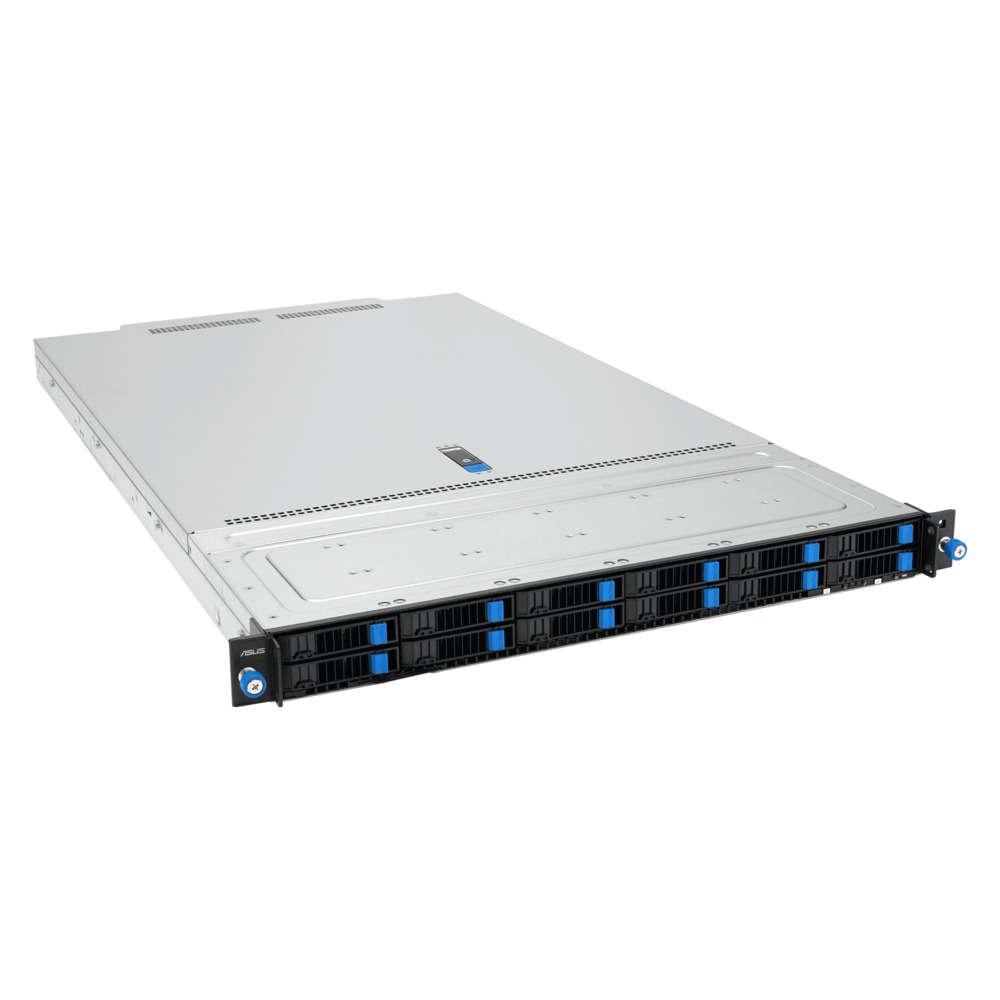

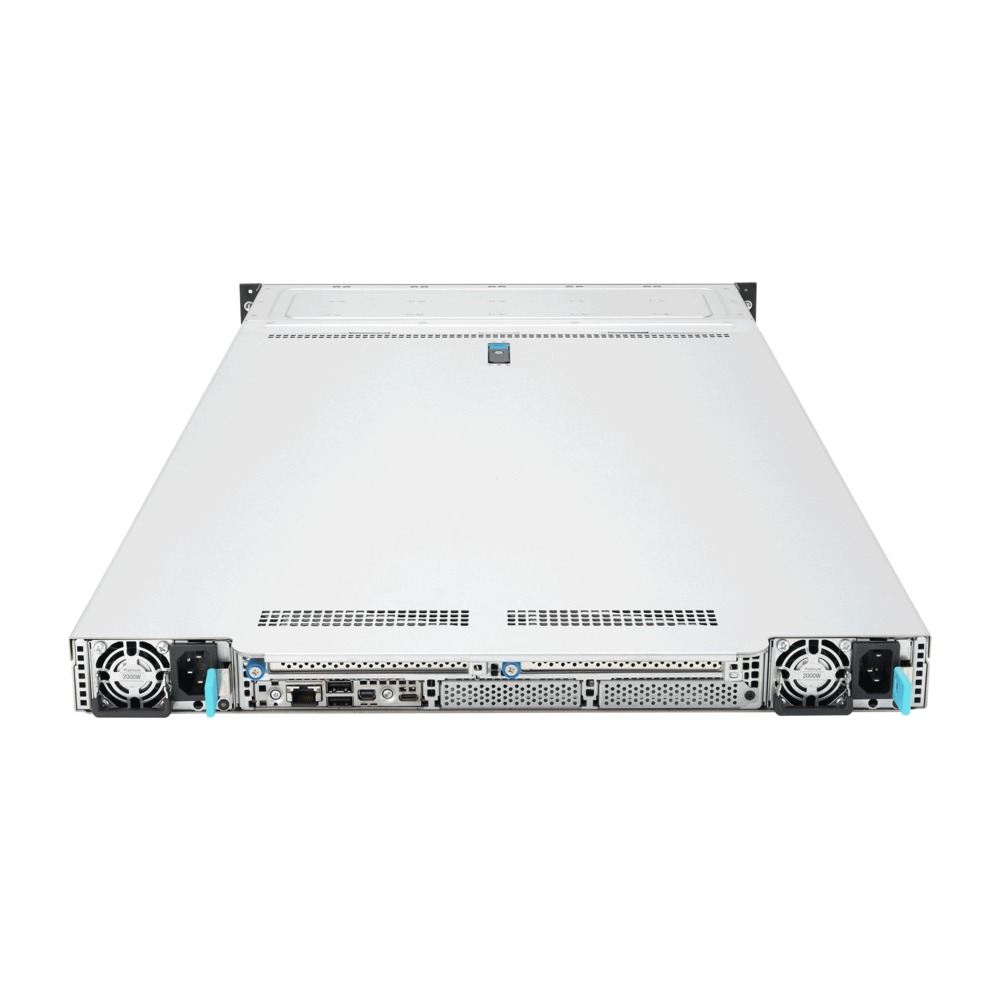

For storage, this system has two M.2 slots internally and twelve 2.5-inch hot-swap bays along the front for NVMe drives. External connectivity on the rear consists of two USB ports plus an RJ45 and Mini DisplayPort for remote management (IPMI). Please note that mDP output does not natively support adapters to other video formats, so if you need to adapt to HDMI, make sure you get an active adapter.
There are also a pair of OCP 3.0 slots for networking, and the system comes with a dual-port 10Gb NIC pre-installed. Additional networking can be added in the second OCP slot, and you could even swap out the bundled one for a faster model if desired. Lastly, there are two full-length, single-width PCI-Express 5.0 slots available - but no supplemental power, limiting what types of cards can be installed there.
For storage, this system has two M.2 slots internally and twelve 2.5-inch hot-swap bays along the front for NVMe drives. External connectivity on the rear consists of two USB ports plus an RJ45 and Mini DisplayPort for remote management (IPMI). Please note that mDP output does not natively support adapters to other video formats, so if you need to adapt to HDMI, make sure you get an active adapter.
There are also a pair of OCP 3.0 slots for networking, and the system comes with a dual-port 10Gb NIC pre-installed. Additional networking can be added in the second OCP slot, and you could even swap out the bundled one for a faster model if desired. Lastly, there are two full-length, single-width PCI-Express 5.0 slots available - but no supplemental power, limiting what types of cards can be installed there.
Note: Includes sliding rail kit for easy mounting to most server racks.
Model: Asus RS700-E12-RS12U-2KW10G
Specifications
| Socket | 4710 |
| CPU Compatibility | Xeon Scalable 6th Gen |
| Form Factor | 1U |
| Chipset Manufacturer | Intel |
| Chipset | SoC |
| Network Controller | Discrete Network Device Required |
| Audio Controller | N/A |
| Cooling System | Heatsink and Fan |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 32 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 4096 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
| Notes: | Mini Displayport outputs Aspeed Graphics |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| Mgmt LAN (RJ45) | 1 |
| BIOS Flashback | No |
Internal Connections | |
| M.2 Connector | 2 |
| M.2 Support | 2x 60-80mm PCIe 5.0 (x2) |
| Maximum M.2 Length | 80 mm (3.1 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | OCP 3.0 |
| Slot 4 | OCP 3.0 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 44 mm (1.7 in) |
| Width | 440 mm (17.3 in) |
| Depth | 822 mm (32.4 in) |
| Net Weight | 13.7 kg (30.2 lbs) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 2000 W |
| Redundancy | 1+1 |
External Drive Bays
Front:
12x 2.5" hot-swap bays (NVMe/SATA/SAS*)
- NVMe via U.2, PCIe 5.0 link
- *SAS support only from optional SAS HBA/RAID card
