The ASUS RS700A-E12-RS12U is a 1U rackmount server built to utilize a pair of AMD EPYC 9004 Series processors. Each of those offers up to 128 cores and supports 12 DDR5 channels - ensuring plenty of processing power and memory bandwidth for running extremely CPU-intensive workloads.

For storage, this system has two M.2 slots internally and twelve 2.5-inch hot-swap bays along the front - each of which can support SATA or NVMe drives.

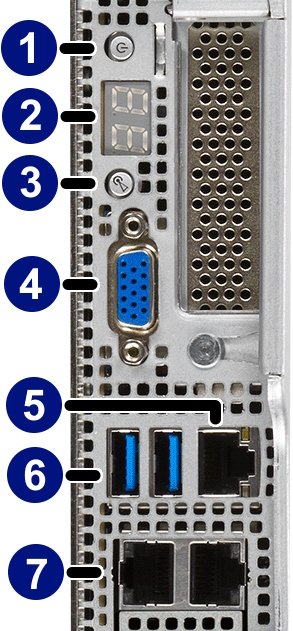

External connectivity consists of two USB ports, two 10 Gb Ethernet ports, and another RJ45 for remote management. There is also a VGA port for the onboard graphics, but that is mostly present to facilitate the IPMI (remote management). For expansion, there are one OCP 3.0 and a few PCI-Express 5.0 slots

Model: Asus RS700A-E12-RS12U-16W10G

Specifications

Socket SP5
CPU Compatibility EPYC 9004 (up to 400W)
Form Factor 1U
Chipset Manufacturer AMD
Network Connectivity Dual 10G Networking
Network Controller Intel X710-AT
Audio Controller N/A
Cooling System Heatsink and Fan
Number of Fans 8
Color Black
Memory Support
Type DDR5 ECC Registered
Maximum Speed 4800 MHz
Number of Slots 24
Maximum Size per Slot 128 GB
Maximum Amount Supported 3072 GB
Onboard Video
Chipset Manufacturer ASpeed
Processor Type AST2600
Maximum Resolution 1920x1200
VGA 1
External Connections
USB 3.2 Gen 1 (USB 3.0) 2
LAN (RJ45) 2
Mgmt LAN (RJ45) 1
Internal Connections
USB 3.2 Gen 1 (USB 3.0) 1
M.2 Connector 2
M.2 Support 2x 80mm PCIe 4.0
Serial (Com) 1
TPM (module sold separately) 1
Compatible TPM Asus TPM-SPI
Expansion Slots
Slot 1 PCI Express 5.0 x16
Slot 2 PCI Express 5.0 x16
Slot 3 PCI Express 5.0 x8 in a x16 size
Slot 4 PCI Express 4.0 x8
Additional Information
SLI Compatible No
Crossfire Compatible No
Remote Management Onboard
Includes Rail Kit Yes
BIOS Features
UEFI BIOS No
EZ Flash No
OC Profiles No
Dimensions
Height 44 mm (1.7 in)
Width 449 mm (17.7 in)
Depth 842.5 mm (33.2 in)
Net Weight 14.94 kg (32.9 lbs)
Power Supply
Input Voltage 100-240 Vac
Wattage at 120V 1600 W
Redundancy 1+1

Dual Socket 1U AMD EPYC general purpose compute server.
