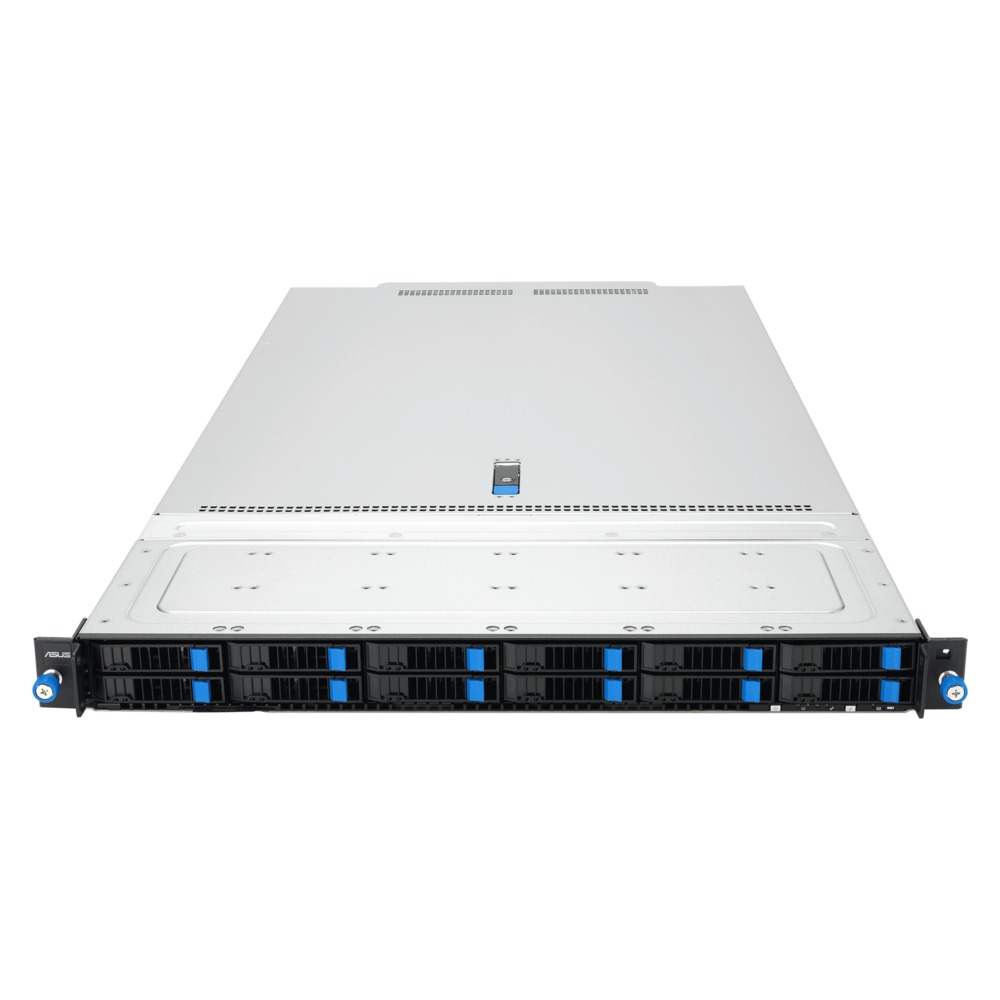

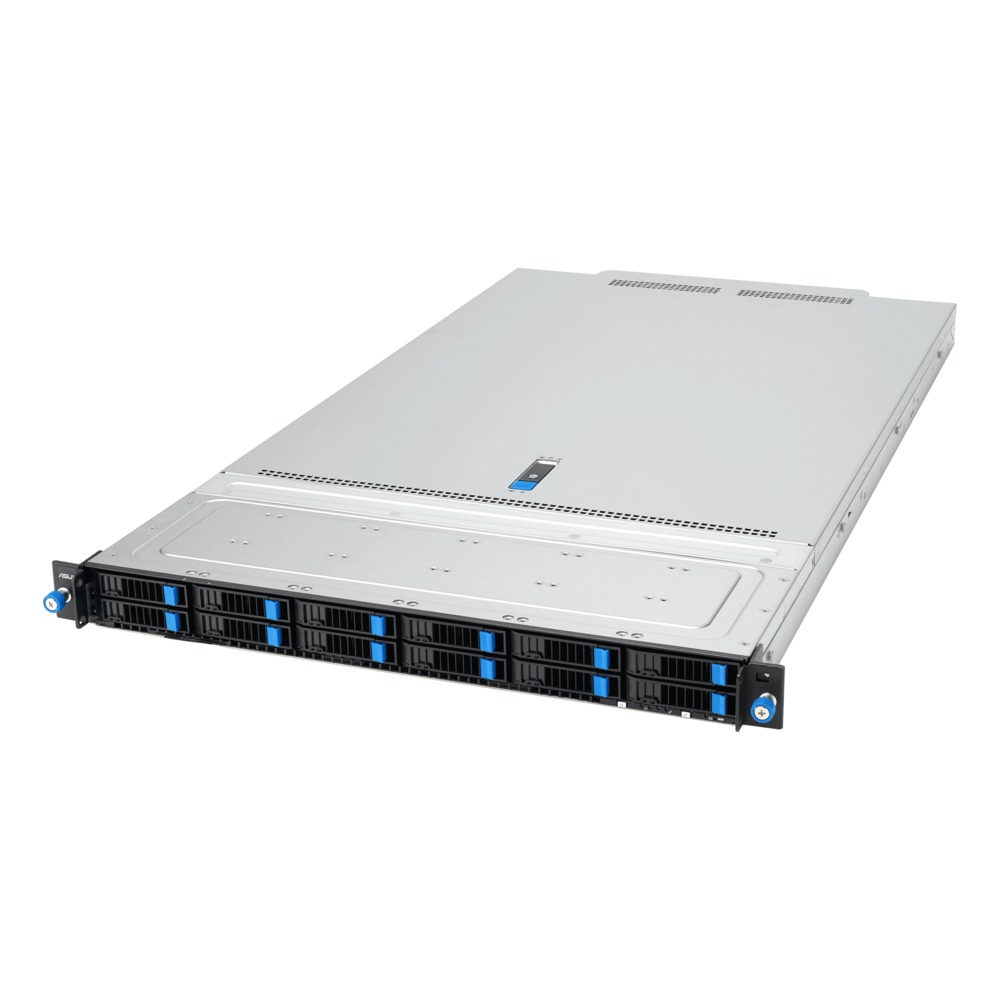

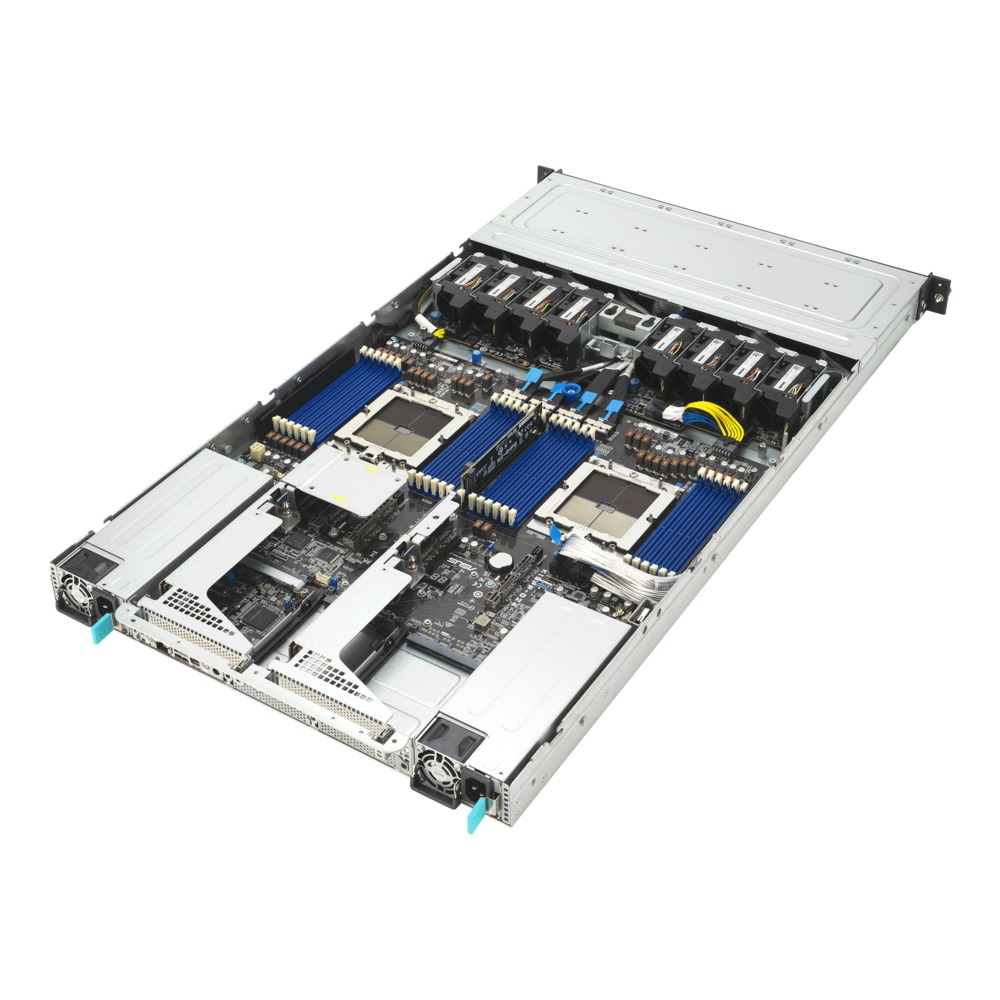

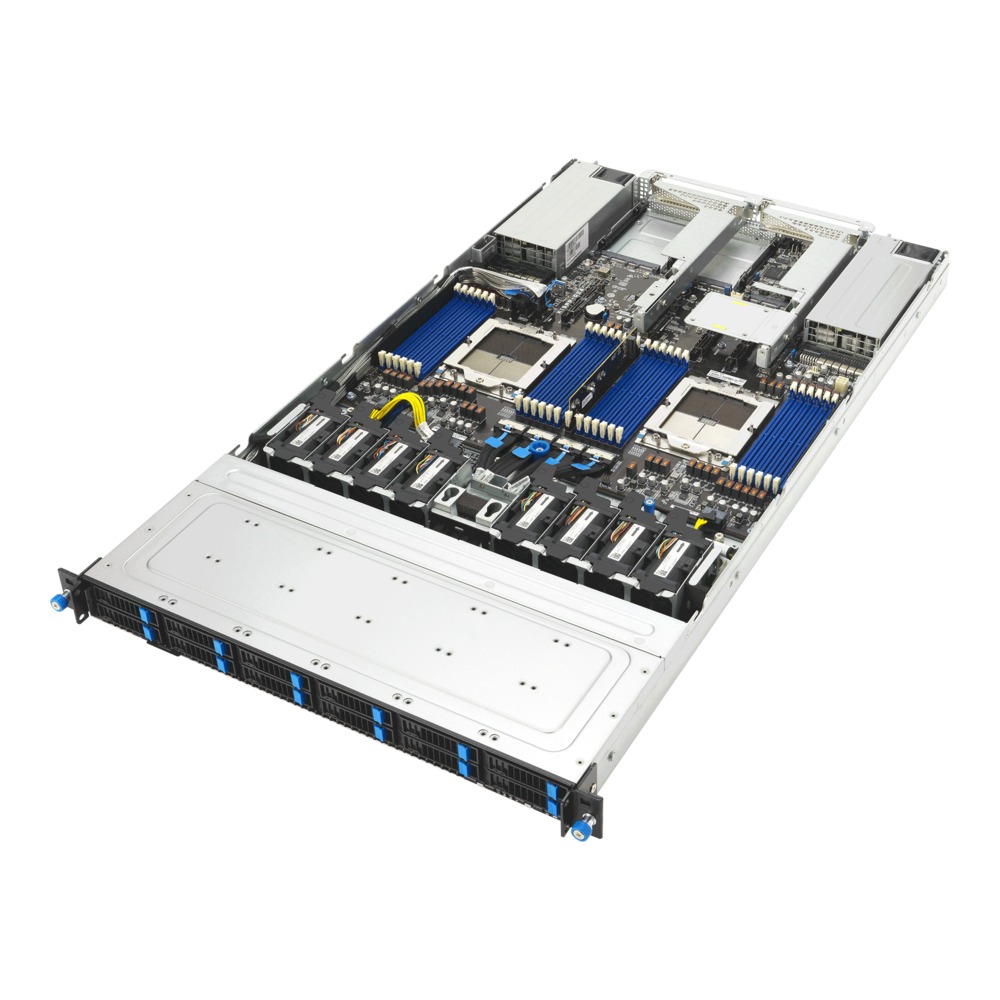

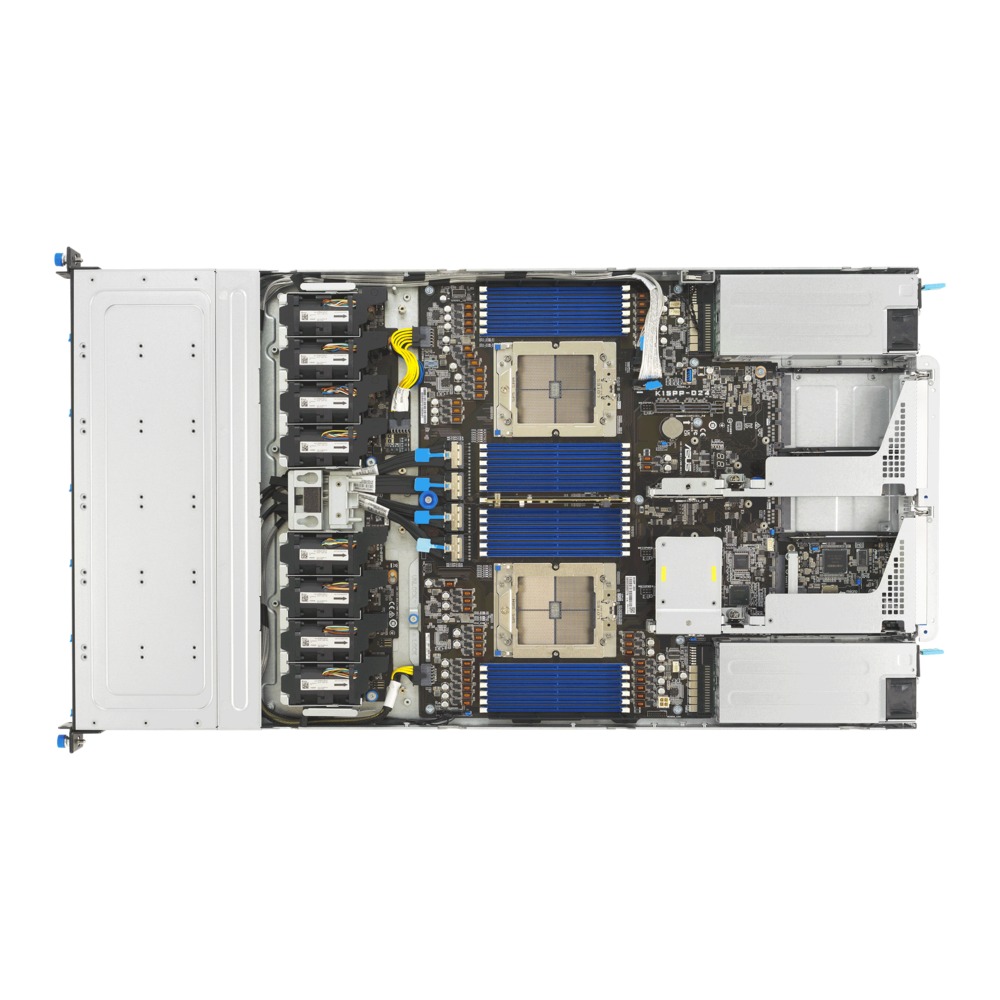

The ASUS RS700A-E13-RS12U is a 1U rackmount server built to utilize a pair of AMD EPYC 9005 Series processors at up to 400W. Each of those offers up to 160 cores and supports 12 DDR5 channels - ensuring plenty of processing power and memory bandwidth for running extremely CPU-intensive workloads.

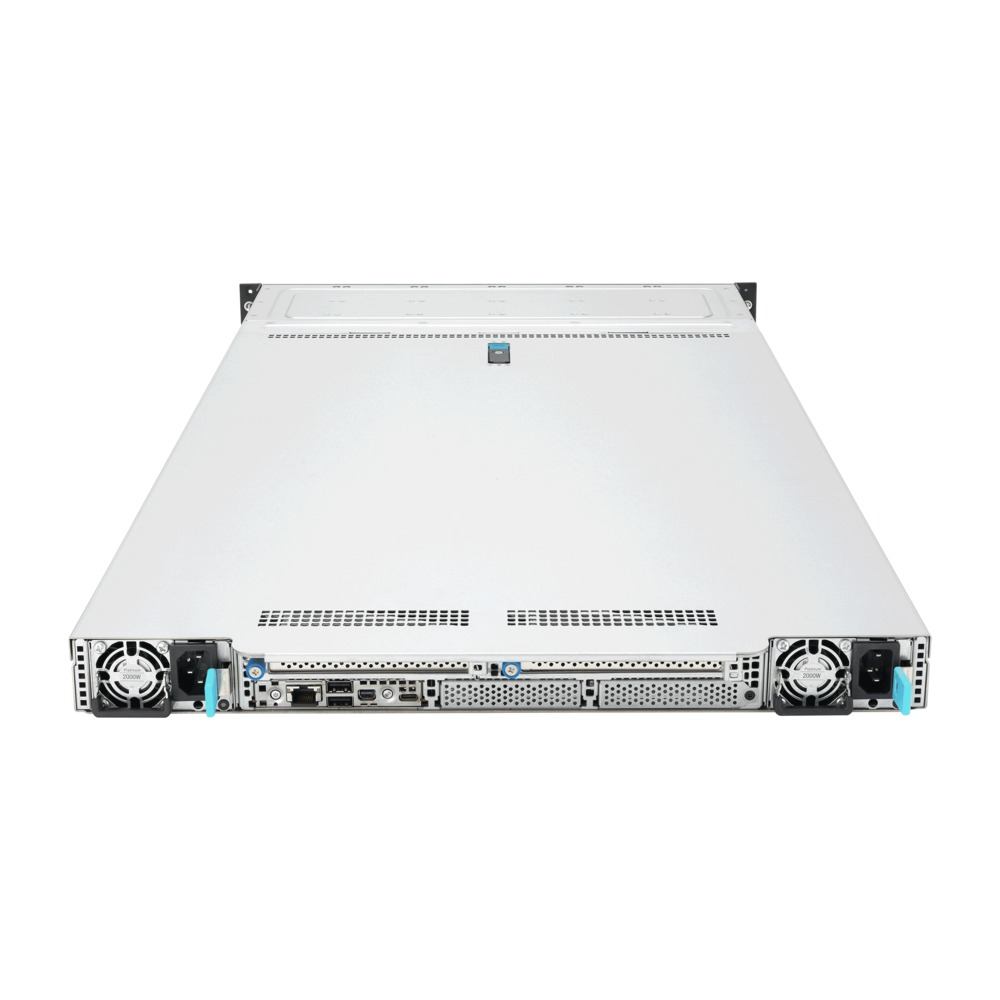

For storage, this system has two M.2 slots internally and twelve 2.5-inch hot-swap bays along the front for NVMe drives. External connectivity on the rear consists of two USB ports plus an RJ45 and Mini DisplayPort for remote management (IPMI). Please note that mDP output does not natively support adapters to other video formats, so if you need to adapt to HDMI, make sure you get an active adapter.
There are also a pair of OCP 3.0 slots for networking, and the system comes with a dual-port 10Gb NIC pre-installed. Additional networking can be added in the second OCP slot, and you could even swap out the bundled one for a faster model if desired. Lastly, there are two full-length, single-width PCI-Express 5.0 slots available - but no supplemental power, limiting what types of cards can be installed there.
For storage, this system has two M.2 slots internally and twelve 2.5-inch hot-swap bays along the front for NVMe drives. External connectivity on the rear consists of two USB ports plus an RJ45 and Mini DisplayPort for remote management (IPMI). Please note that mDP output does not natively support adapters to other video formats, so if you need to adapt to HDMI, make sure you get an active adapter.
There are also a pair of OCP 3.0 slots for networking, and the system comes with a dual-port 10Gb NIC pre-installed. Additional networking can be added in the second OCP slot, and you could even swap out the bundled one for a faster model if desired. Lastly, there are two full-length, single-width PCI-Express 5.0 slots available - but no supplemental power, limiting what types of cards can be installed there.
Model: Asus RS700A-E13-RS12U
Specifications
| Socket | SP5 |
| CPU Compatibility | AMD EPYC 9005 Series (Up to 400W) |
| Form Factor | 1U |
| Chipset Manufacturer | AMD |
| Wired Network Connectivity | Dual 10G Networking |
| Network Controller | Intel X710 via OCP slot |
| Cooling System | Heatsink and Fan |
| Number of Fans | 8 |
| Color | Black |
| Windows Support | Windows Server 2025 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 6400 MHz |
| Number of Slots | 24 |
| Maximum Size per Slot | 128 GB |
| Maximum Amount Supported | 3072 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Onboard Memory | 64 MB |
| Maximum Resolution | 1920x1200 |
| Maximum DisplayPort Resolution | 1920x1200 |
| Mini DisplayPort | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| Mgmt LAN (RJ45) | 1 |
| BIOS Flashback | No |
Internal Connections | |
| SATA II 3.0Gbps | 1 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80/110mm PCIe 3.0 |
| Maximum M.2 Length | 110 mm (4.3 in) |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
| Hearing Protection Advised | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 43 mm (1.7 in) |
| Width | 483 mm (19.0 in) |
| Depth | 822 mm (32.4 in) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1000 W |
| Wattage at 240V | 2000 W |
| Redundancy | 1+1 |
External Drive Bays
Front:
12x 2.5" hot-swap bays (NVMe/SATA/SAS*)
- NVMe via U.2, PCIe 5.0 link
- *SAS support only from optional SAS HBA/RAID card
