The ASUS TUF B850M-PLUS WIFI is a compact, micro ATX motherboard for AMD's socket AM5 socket and corresponding Ryzen processors. It sacrifices some of the expansion capacity that a larger motherboard can offer, but still supports up to 192GB of DDR5 memory and multiple SATA and M.2 drives. Two PCI-Express slots are also present: one Gen 5 x16 for a video card and a small Gen 4 x1 for various expansion devices - though some larger video cards could cover that second slot as well.
For external connectivity, this board has 7.1 surround analog audio outputs, 2.5Gb Ethernet, WiFi 6e, Bluetooth 5.3, and massive twelve USB ports of varying speeds (including one Type C). There are also HDMI and DisplayPort outputs for use with the graphics built into AMD's Ryzen processors, though most users will want to add a dedicated video card for improved graphics performance.
For external connectivity, this board has 7.1 surround analog audio outputs, 2.5Gb Ethernet, WiFi 6e, Bluetooth 5.3, and massive twelve USB ports of varying speeds (including one Type C). There are also HDMI and DisplayPort outputs for use with the graphics built into AMD's Ryzen processors, though most users will want to add a dedicated video card for improved graphics performance.
Model: Asus TUF GAMING B850M-PLUS WIFI
Specifications
Socket | AM5 |
CPU Compatibility | AMD Ryzen 9000 Series Desktop Processors |
Form Factor | MicroATX |
Chipset Manufacturer | AMD |
Chipset | B850 |
Network Connectivity | 2.5G Networking + WiFi 6e |
Audio Controller | Onboard Realtek HD Audio |
Color | Black |
Memory Support | |
Type | DDR5 |
Maximum Speed | 5200 MHz |
Number of Slots | 4 |
Maximum Size per Slot | 48 GB |
Maximum Amount Supported | 192 GB |
Onboard Video | |
Chipset Manufacturer | AMD |
Processor Type | Processor Dependent |
Maximum Resolution | 7,680 x 4,320 |
HDMI | 1 |
HDMI Version | 2.1 |
DisplayPort | 1 |
DisplayPort Version | 1.4 |

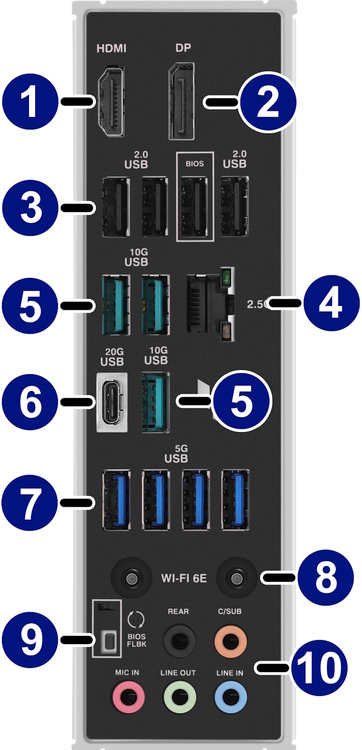

External Connections | |
USB 2.0 | 4 |
USB 3.2 Gen 1 (USB 3.0) | 4 |
USB 3.2 Gen 2 (USB 3.1) | 3 |
USB 3.2 Gen 2x2 Type C | 1 |
Audio Out | Surround Sound (7.1) |
Audio In | Line-In/Microphone |
LAN (RJ45) | 1 |
Wireless Antenna Port | Yes |
BIOS Flashback | Yes |
Internal Connections | |
USB 2.0 | 2 (providing 4 ports) |
USB 3.2 Gen 1 (USB 3.0) | 1 |
USB 3.2 Gen 2 Type C | 1 |
SATA III 6.0Gbps | 4 |
M.2 Connector | 3 |
M.2 Support | 1x 80mm (PCIe 5.0), 1x 42-80mm (PCIe 4.0), 1x 80mm (PCIe 4.0) |
SATA Controllers | |
SATA III 6.0Gbps Controller 1 | 4x via AMD B650 Chipset |
Expansion Slots | |
Slot 1 | Slot not available on this board |
Slot 2 | PCI Express 5.0 x16 |
Slot 3 | Slot not available on this board |
Slot 4 | PCI Express 4.0 x1 |
Additional Information | |
RAID Support | NVMe RAID 0/1/10 and SATA RAID 0/1/10 via RAIDXpert2 |
Bluetooth | Yes (5.3) |
Integrated IO Shield | Yes |
BIOS Features | |
UEFI BIOS | Yes |
EZ Flash | Yes |
OC Profiles | Yes |
Dimensions | |
Height | 244 mm (9.6 in) |
Width | 244 mm (9.6 in) |
Net Weight | 1.213 kg (2.7 lbs) |
