ASUS TUF B850M-PLUS WIFI7 Ports

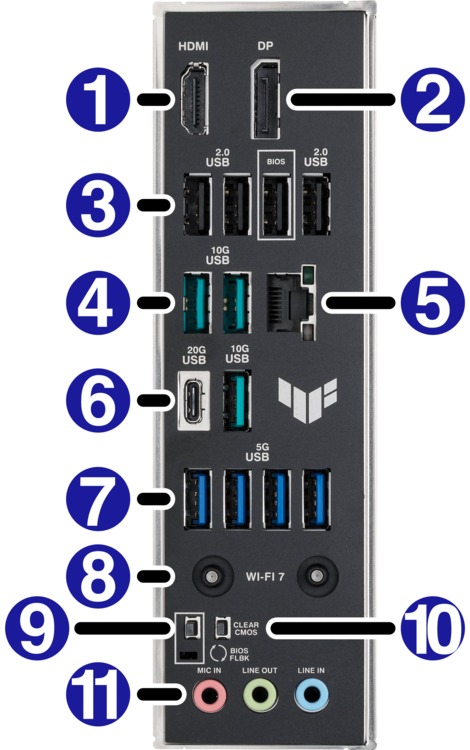

HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
BIOS Flashback LED: Status LED for the motherboard BIOS Flashback feature
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

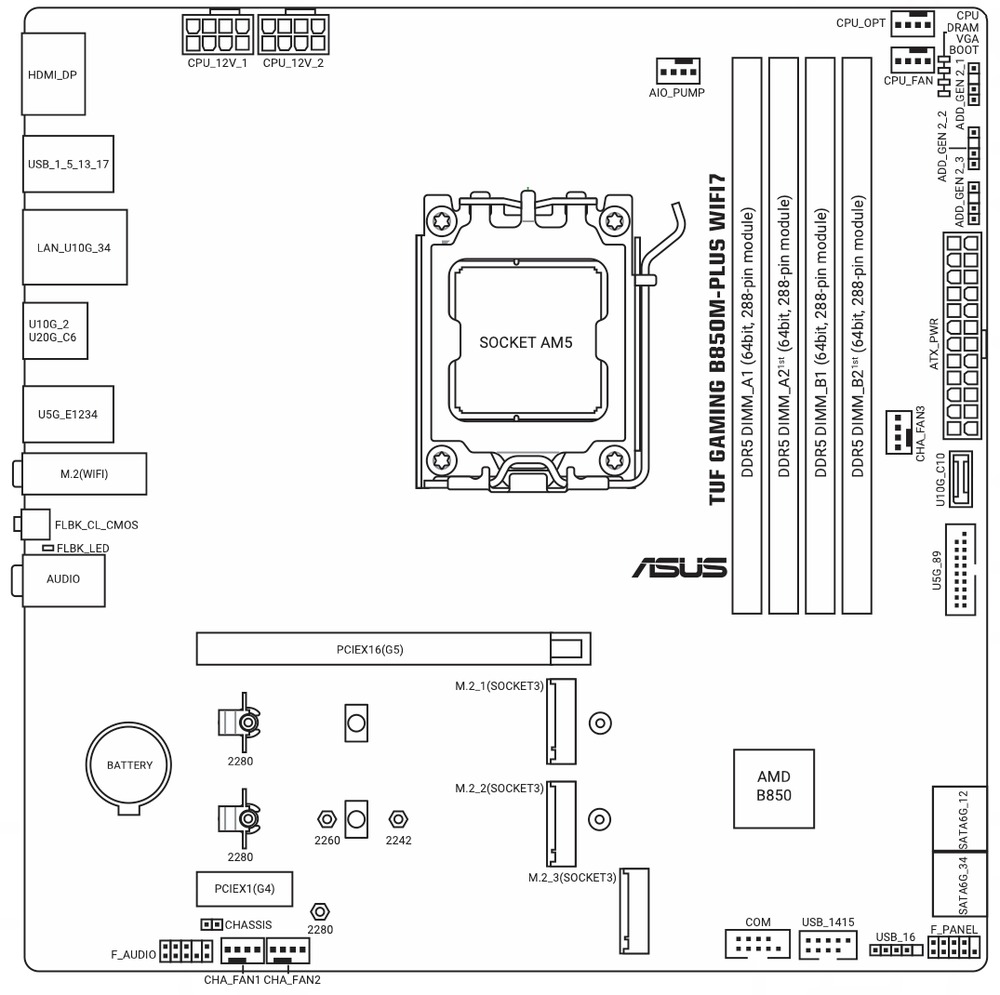

ASUS TUF B850M-PLUS WIFI7 Schematic
For external connectivity, this board has 7.1 surround analog audio outputs, 2.5Gb Ethernet, WiFi 7, Bluetooth 5.4, and massive twelve USB ports of varying speeds (including one Type C). There are also HDMI and DisplayPort outputs for use with the graphics built into AMD's Ryzen processors, though most users will want to add a dedicated video card for improved graphics performance.

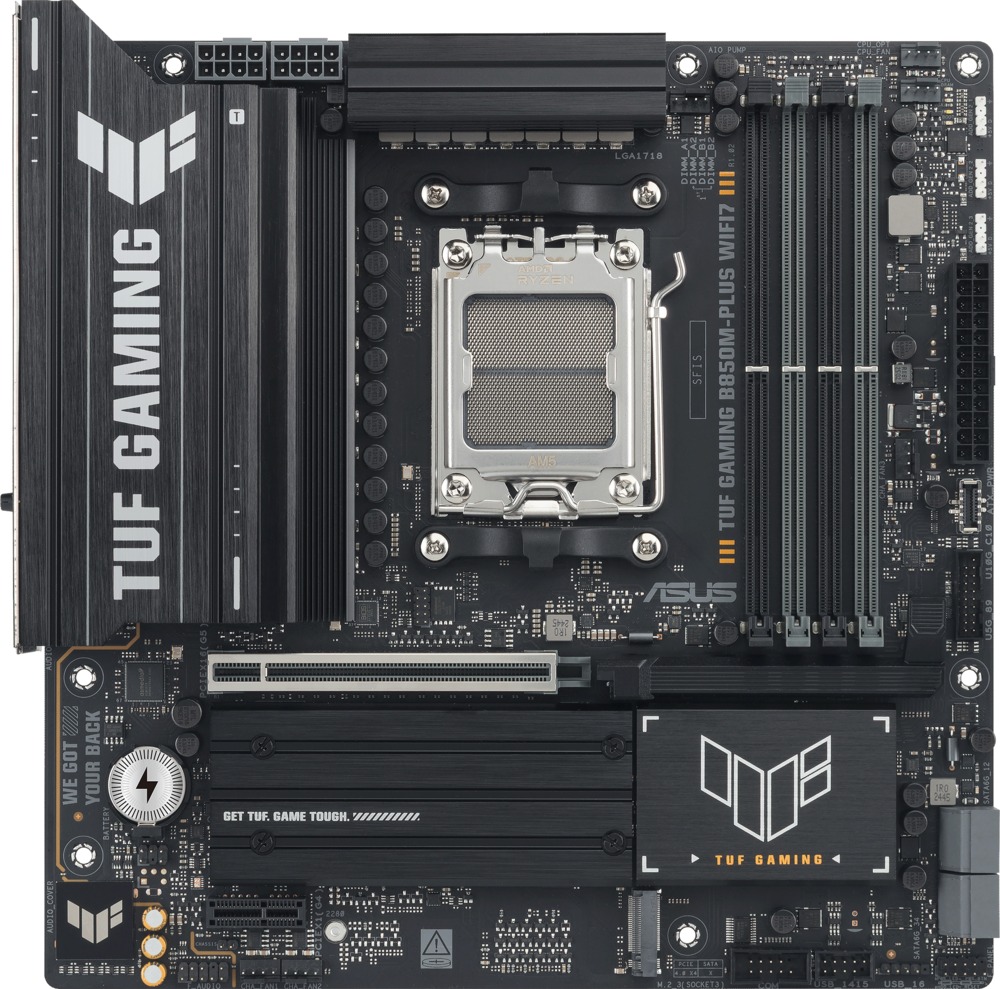

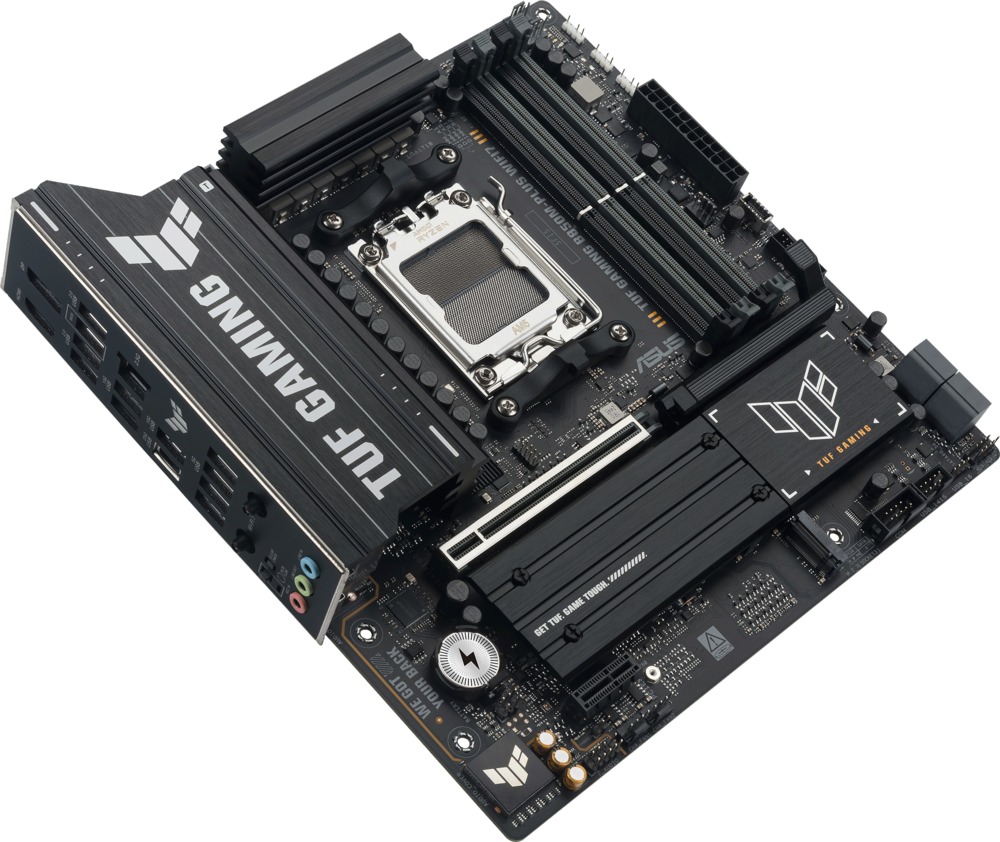

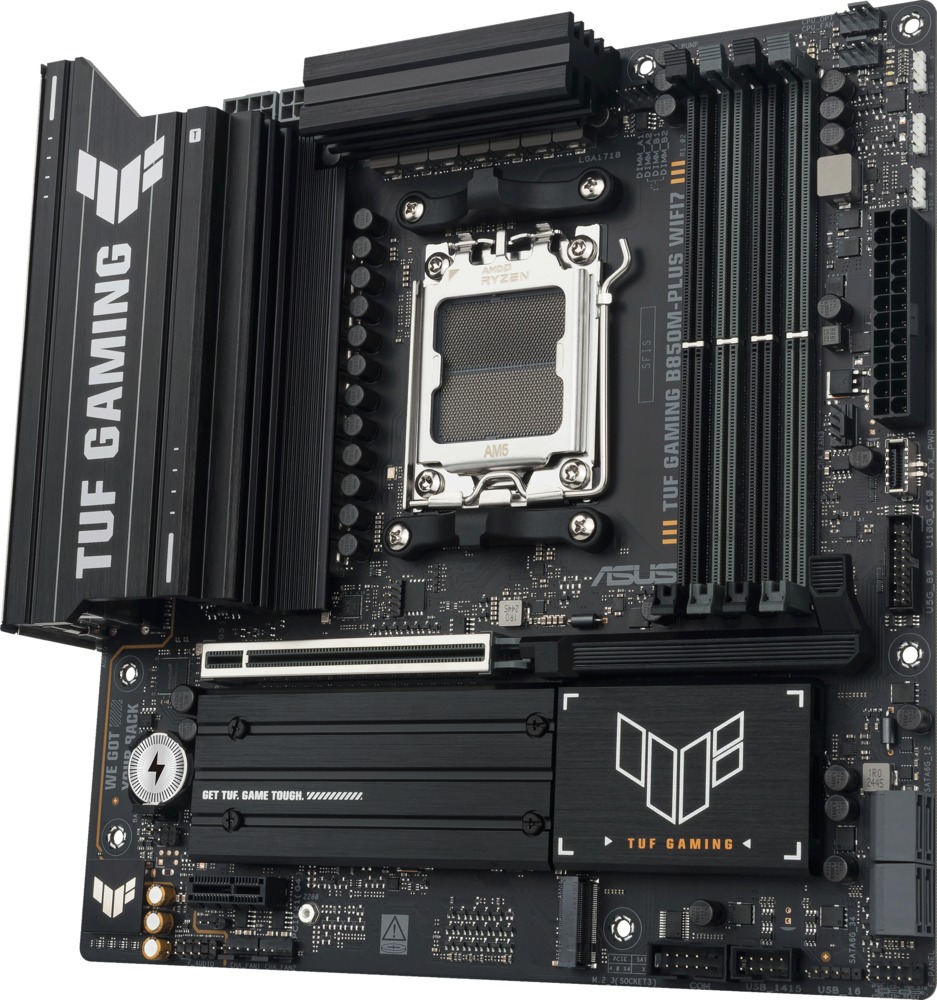

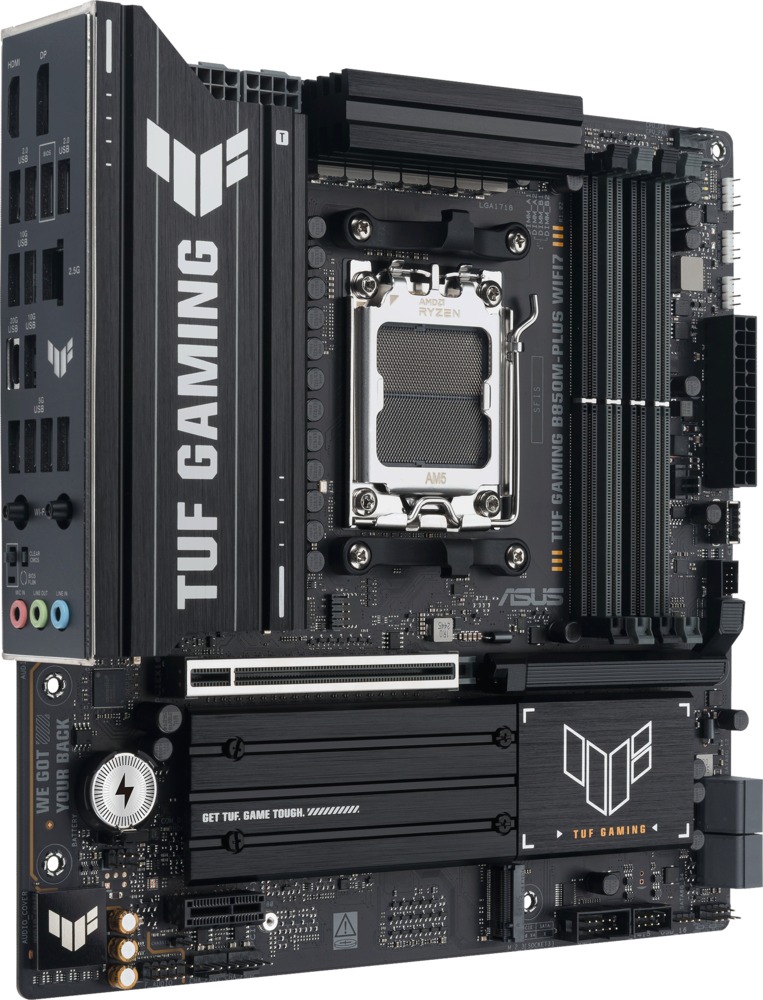

Model: Asus TUF GAMING B850M-PLUS WIFI7
Specifications
| Socket | AM5 |
| CPU Compatibility | Ryzen 7000 and 9000 series CPUs |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | B850 |
| Wired Network Connectivity | 2.5G Networking |
| Wireless Network Connectivity | WiFi 7 |
| Network Controller | MediaTek MT7925 |
| Windows Support | Windows 11 |
| Linux Support | Yes |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 8000 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 64 GB |
| Maximum Amount Supported | 256 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Processor Type | Processor Dependent |
| Maximum Resolution | 7,680 x 4,320 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| DisplayPort | 1 |
| DisplayPort Version | 1.4 |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 3 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | None |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 3 |
| Maximum M.2 Length | 80 mm (3.1 in) |
| Serial (Com) | 1 |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 4.0 x1 |
Additional Information | |
| Bluetooth | Yes (5.4) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
