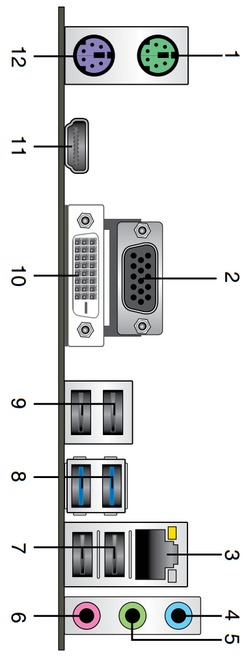

Asus A88XM-PLUS/CSM Ports
PS/2 Mouse Port: Connection for a PS/2 mouse.
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
PS/2 Keyboard Port: Connection for a PS/2 keyboard.

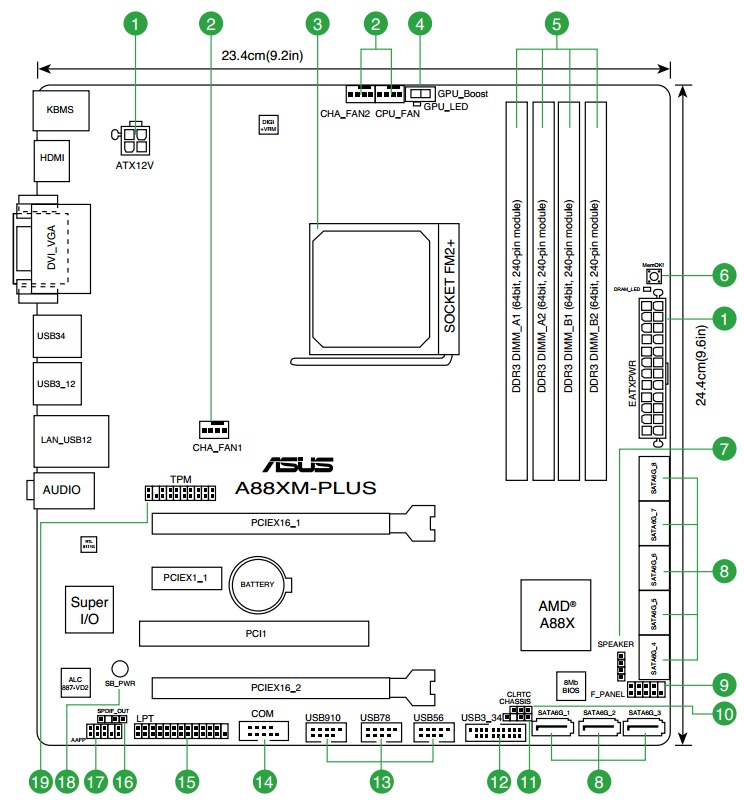

Asus A88XM-PLUS/CSM Schematic

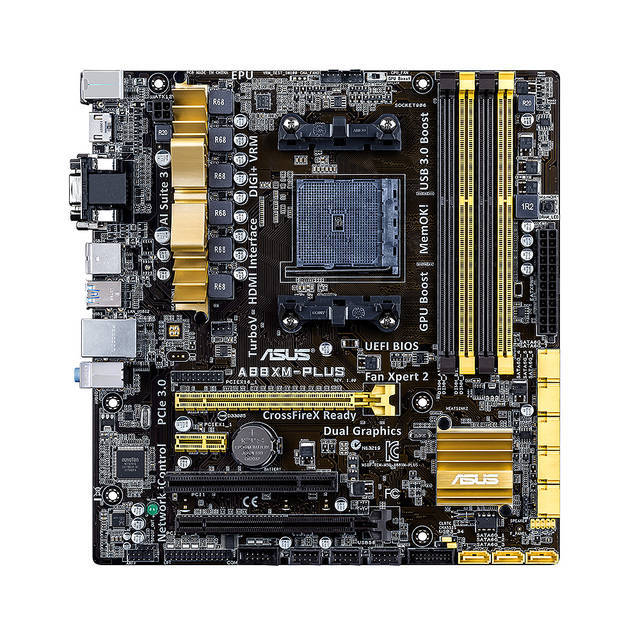

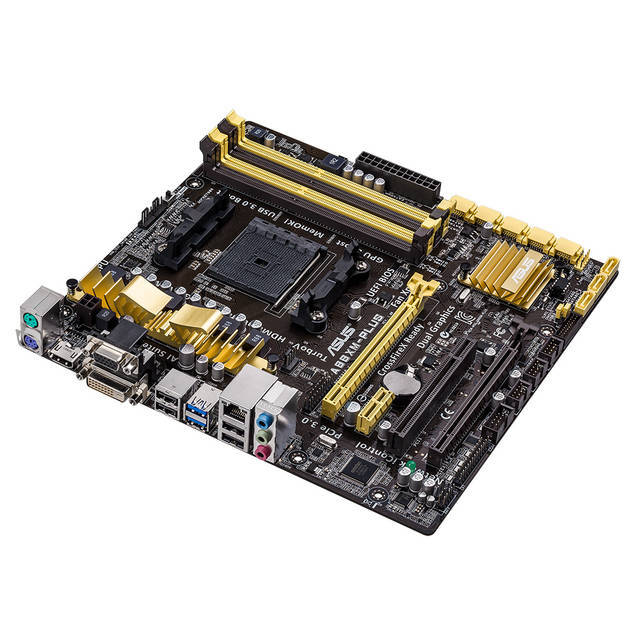

Model: Asus A88XM-PLUS/CSM
Specifications
| Socket | FM2+ |
| CPU Compatibility | AMD Socket FM2+ Athlon/A- Series Processors |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | AMD A88X (Bolton D4) |
| Wired Network Connectivity | Gigabit Networking |
| Network Controller | Realtek 8111G |
| Audio Controller | Realtek ALC887-VD 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 2133 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 64 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Processor Type | Integrated AMD Radeon HD 7000/8000 Series Graphics in A-series APU |
| Maximum Shared Memory | 2048 MB |
| Maximum Resolution | 4096x2160 |
| Maximum DVI Resolution | 2560x1600 |
| Maximum HDMI Resolution | 4096x2160 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Mouse | Yes |
| PS/2 Keyboard | Yes |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 8 |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 8 port - AMD A88X FCH(Bolton D4) |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 2.0 x4 |
| Slot 3 | PCI |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0, 1, 5, 10, JBOD |
| Bluetooth | No |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 234 mm (9.2 in) |
