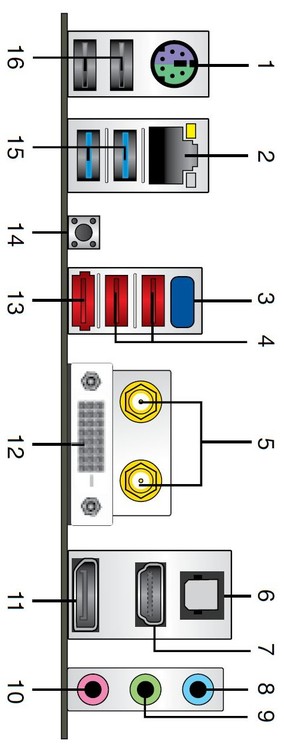

Asus F1A75-I Deluxe OUT OF STOCK Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Bluetooth Module: External antenna for connecting Bluetooth (BT) devices directly with the PC. Glows blue when paired.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
DisplayPort Out: DisplayPort for outputting digital video.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).

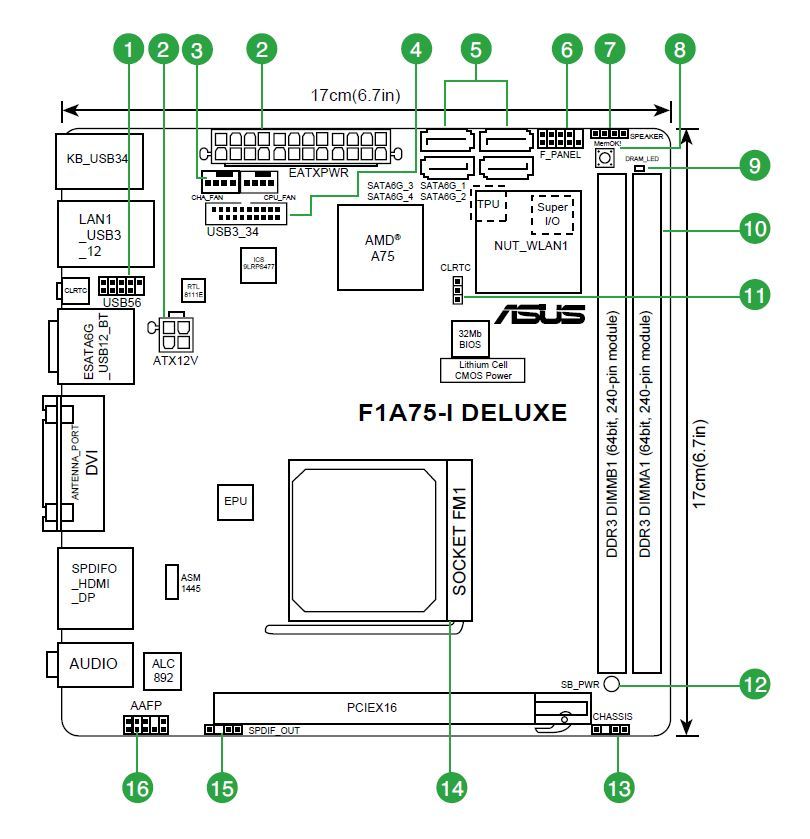

Asus F1A75-I Deluxe OUT OF STOCK Schematic

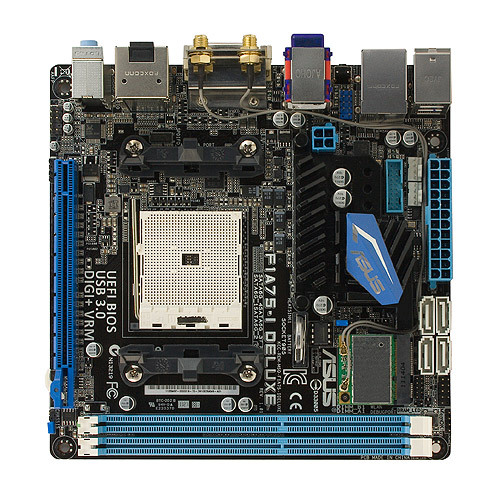

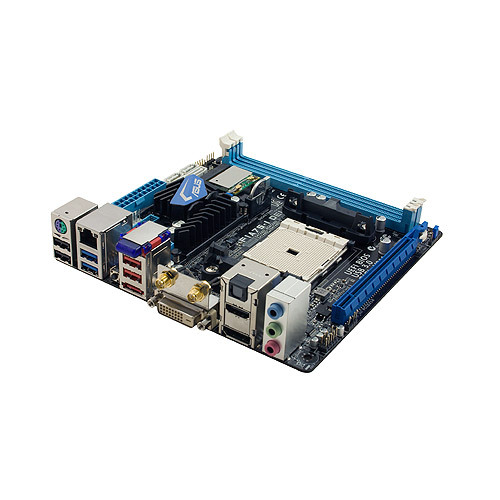

Model: Asus F1A75-I Deluxe
Specifications
| Socket | FM1 |
| CPU Compatibility | AMD Socket FM1 A- Series/E2- Series Accelerated Processors |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | A75 FCH |
| Network Connectivity | Gigabit Networking + 802.11 B/G/N |
| Network Controller | Realtek 8111E |
| Audio Controller | Realtek ALC 892 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | ATI |
| Processor Type | Radeon HD 6000 |
| Maximum Shared Memory | 2048 MB |
| Maximum DVI Resolution | 1920x1200 |
| Maximum HDMI Resolution | 1920x1200 |
| Maximum DisplayPort Resolution | 2560x1600 |
| DVI | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
| Notes: | Display port and DVI-D cannot work simultaneously. |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Keyboard | Yes |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 4 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 4 port - AMD A75 FCH (Hudson D3) |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0, 1, 10, JBOD |
| Bluetooth | Yes (3.0) |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 170 mm (6.7 in) |
| Width | 170 mm (6.7 in) |
