Asus F2A85-M Pro

Motherboard

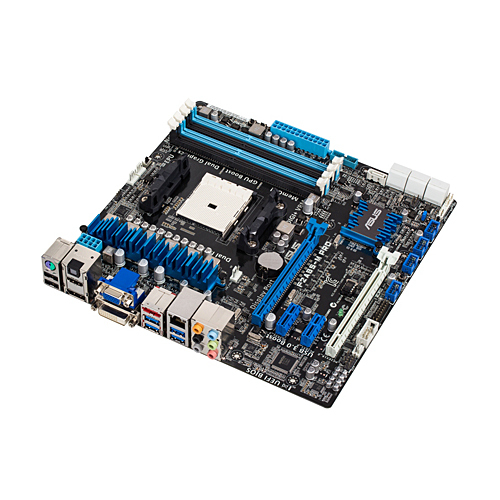

Asus F2A85-M Pro Main Picture

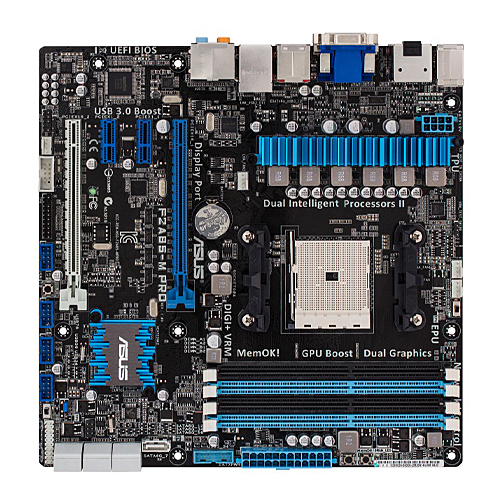

Asus F2A85-M Pro Picture 21639

Model: Asus F2A85-M PRO

Specifications

Socket FM2
CPU Compatibility AMD Socket FM2 Athlon/A- Series Processors
Form Factor ATX
Chipset Manufacturer AMD
Chipset A85X FCH(Hudson D4)
Network Connectivity Gigabit Networking
Network Controller Realtek 8111F
Audio Controller Realtek ALC892 8-Channel High Definition Audio CODEC
Cooling System Heatsink
Color Black
Memory Support
Type DDR3
Maximum Speed 1866 MHz
Number of Slots 4
Maximum Size per Slot 16 GB
Maximum Amount Supported 64 GB
Onboard Video
Chipset Manufacturer AMD
Processor Type Radeon HD 7000 Series Graphics in A-series APU
Maximum Shared Memory 2048 MB
Maximum DVI Resolution  2560x1600
Maximum HDMI Resolution  1920x1080
Maximum DisplayPort Resolution  4096x2160
DVI 1
VGA 1
HDMI 1
DisplayPort 1

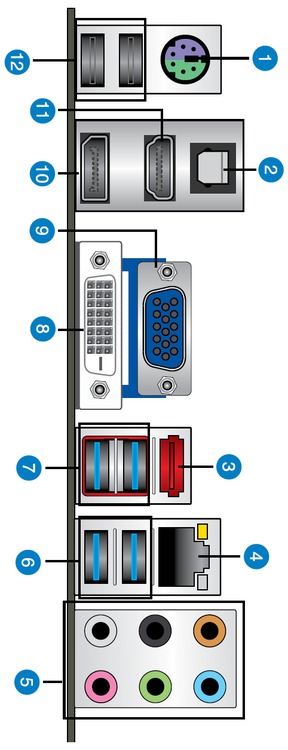

External Connections
USB 2.0 2
USB 3.2 Gen 1 (USB 3.0) 4
PS/2 Keyboard Yes
Audio Out Surround Sound (7.1)
Audio In Line-In/Microphone
S/PDIF Optical
External SATA 1
LAN (RJ45) 1
Wireless Antenna Port No
Internal Connections
USB 2.0 4 (providing 8 ports)
USB 3.2 Gen 1 (USB 3.0) 1
SATA III 6.0Gbps 7
SATA Controllers
SATA III 6.0Gbps Controller 1 7 port - AMD A85X FCH (Hudson D4)
SATA III 6.0Gbps Controller 2 1 port eSATA - AMD A85X FCH (Hudson D4)
Expansion Slots
Slot 1 PCI Express 2.0 x16
Slot 2 PCI Express 2.0 x1
Slot 3 PCI Express 2.0 x1
Slot 4 PCI Express 2.0 x16
Additional Information
SLI Compatible No
Crossfire Compatible Yes
RAID Support 0, 1, 5, 10, JBOD
Bluetooth No
BIOS Features
UEFI BIOS Yes
EZ Flash Yes
OC Profiles Yes
Dimensions
Height 244 mm (9.6 in)
Width 244 mm (9.6 in)
