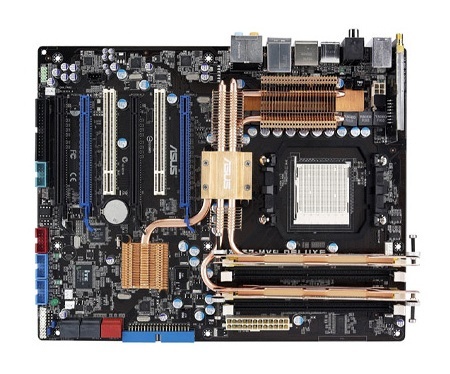

Model: Asus M3A32-MVP DELUXE / WIFI
Specifications
| CPU Compatibility | AMD Phenom, Athlon 64 |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | AMD 790FX / SB600 |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heat Pipes |
| Number of Fans | 0 |
| Color | Black |
Memory Support | |
| Type | DDR2 |
| Maximum Speed | 1066 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 8 GB |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (5.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical and Coaxial |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| Firewire | 2 |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| Firewire | 1 |
| Floppy | 1 |
Expansion Slots | |
| Slot 1 | PCI Express x16 |
| Slot 2 | PCI |
| Slot 3 | PCI Express x16 |
| Slot 4 | PCI |
| Slot 5 | PCI Express x16 |
| Slot 6 | PCI Express x16 |
Additional Information | |
| Crossfire Compatible | Yes |
| RAID Support | Yes - one controller with 4 ports, one controller with 2 ports. |
Internal Connections
SATA2: 6
