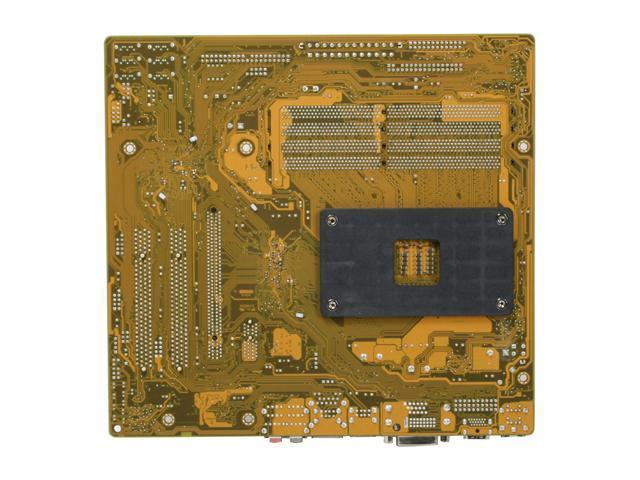

Model: Asus M3A78-EMH HDMI
Specifications
| Socket | AM2+ |
| CPU Compatibility | Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | 780G |
| Front Side Bus | 2600Mhz HT |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink |
| Number of Fans | 0 |
Memory Support | |
| Type | DDR2 |
| Maximum Speed | 1066 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 8 GB |
Onboard Video | |
| Chipset Manufacturer | ATI |
| Processor Type | Radeon HD 3200 |
| Maximum Shared Memory | 256 MB |
| Maximum Resolution | 2560x1600 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
External Connections | |
| USB 2.0 | 4 |
| PS/2 Mouse | Yes |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
Internal Connections | |
| USB 2.0 | 4 (providing 8 ports) |
| Floppy | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI Express x1 |
| Slot 2 | PCI Express 2.0 x16 |
| Slot 3 | PCI |
| Slot 4 | PCI |
Additional Information | |
| Crossfire Compatible | Yes |
| RAID Support | 0, 1, 10 |
Dimensions | |
| Height | 245 mm (9.6 in) |
| Width | 230 mm (9.1 in) |
Internal Connections
SATA2: 6
