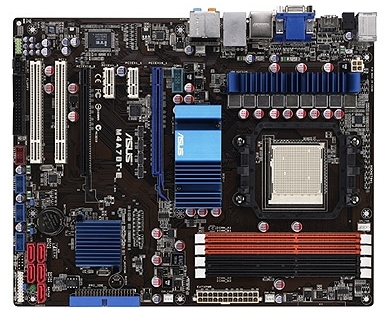

Model: Asus M4A78T-E
Specifications
| Socket | AM3 |
| CPU Compatibility | Phenom II |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | AMD 790GX/SB750 |
| Front Side Bus | HyperTransport |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 4 GB |
| Maximum Amount Supported | 16 GB |
Onboard Video | |
| Chipset Manufacturer | ATI |
| Processor Type | Radeon HD 3300 |
| Onboard Memory | 128 MB |
| Maximum Resolution | 2560x1600 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | No |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
| Firewire | 1 |
Internal Connections | |
| Firewire | 1 |
| Floppy | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express 2.0 x1 |
| Slot 3 | PCI Express 2.0 x1 |
| Slot 4 | PCI Express 2.0 x16 |
| Slot 5 | PCI |
| Slot 6 | PCI |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/5/10 |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
Internal Connections
SATA2: 5
