Note: This motherboard has TWO SATA ports only.

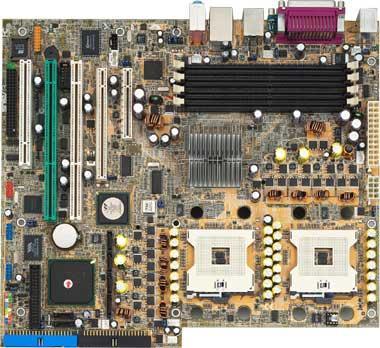

Model: Asus NCT-D
Features
- Processor: Dual Intel Xeon Processor with EM64T Technology
- Chipset: Intel E7525 MCH, Intel 6300ESB ICH
- Memory: Dual Channel PC2-3200 ECC Registered, up to 8GB
- Expansion: 1 x PCI-Express x16 for Graphics , 1 x PCI-Express x8, 2 x PCI-X, 1 x PCI
- Management Software: ASWM2.0
- Board size: 12" x 9.8" ATX
- On board LAN: Broadcom BCM5751KFB PCI-Express Gigabit Network Connection
Processor: - Supported CPUs
Core Logic: - North Bridge
Memory: - Memory Supported
Expansion Slots: - 32bit PCI x1 - 64bit PCI-X / PCI x2(PCI-X) - x4/x8 PCI-Express x1(x4)
IO Controller: SATA
On Board LAN: Chipset Broadcom 5751 PCI-Express Gb x 1
On Board Connectors: - Floppy Connector x1 - PSU Connector
Rear IO Connectors: - External Serial Port x1 - External USB Port x2 - RJ-45 x1 - PS/2 Mouse/Mouse x1 - SPD/IF Out x1
Management Software: ASWM 2.0
Software Bundle: Trend Micro Server Protect (optional)
Board Size / Form Factor: 12" x 9.8", ATX
EMI: - US (FCC, CFR47 Part 15, Class B) - Europe (CE, EN55022 EN55024) - Australia (C-TICK
World's first and smallest dual-Nocona, PCI Express workstation Motherboard
The motherboard is based on the E7525 chipset supporting a dual-Xeon with EM64T architecture. The NCT-D features the latest industry specifications to provide a workstation-level solution at an affordable price.
Through superior engineering expertise, the NCT-D, based on the 875P chipset, supports a dual-Xeon (including the next-generation Nocona) architecture to deliver both workstation performance and affordability.
