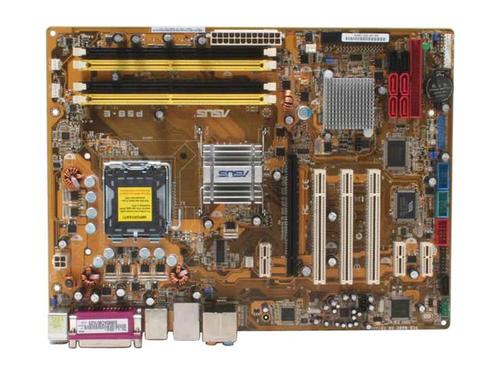

Model: Asus P5B-E
Specifications
| Socket | 775 |
| CPU Compatibility | CeleronD, Pentium4, PentiumD, Core 2 Duo, Core 2 Quadro |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | P965 |
| Front Side Bus | 1066Mhz |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heatsink |
Memory Support | |
| Type | DDR2 |
| Maximum Speed | 800 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 8 GB |
External Connections | |
| USB 2.0 | 4 |
| PS/2 Mouse | Yes |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical and Coaxial |
| External SATA | 1 |
| Printer (LPT) Port | 1 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| Firewire | 1 |
| Floppy | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI Express x1 |
| Slot 2 | PCI Express x1 |
| Slot 3 | PCI |
| Slot 4 | PCI |
| Slot 5 | PCI |
| Slot 6 | PCI Express x16 |
| Slot 7 | PCI Express x1 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 245 mm (9.6 in) |
External Connections
Gigabit LAN (RJ45): 1
Internal Connections
SATA2: 7
Supports the Core 2 Quadro (Kentsfield) processor
