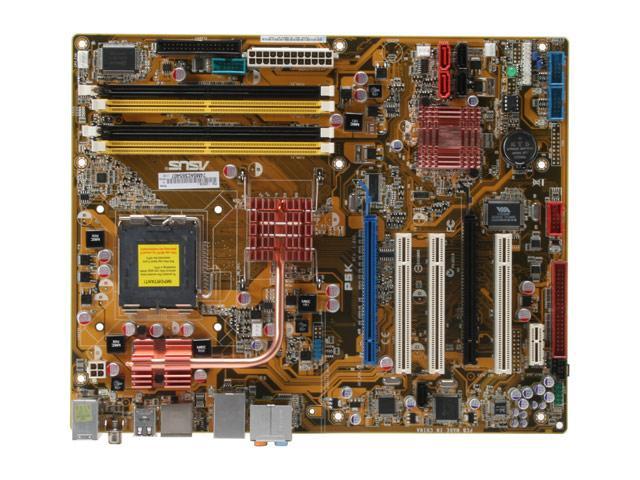

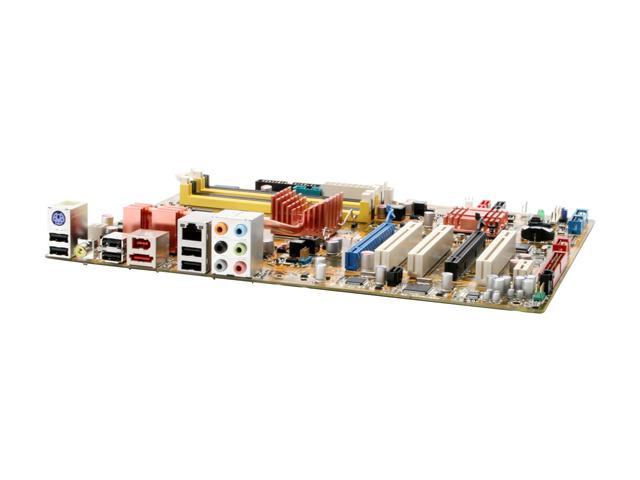

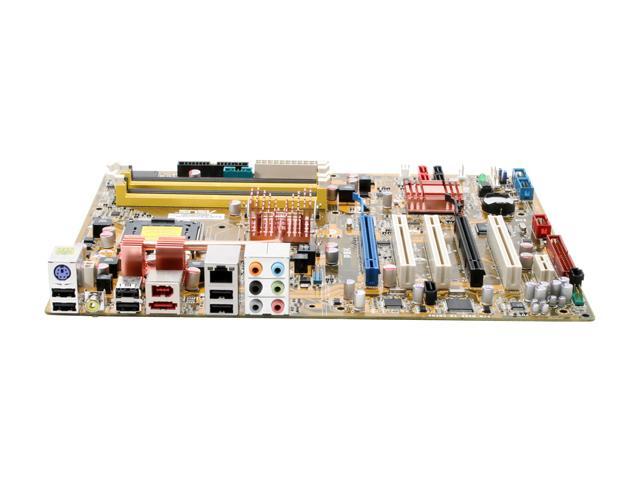

Model: Asus P5K
Specifications
| Socket | 775 |
| CPU Compatibility | Core 2 Duo, Core 2 Quadro, Core 2 Extreme |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | P35 |
| Front Side Bus | 1333Mhz |
| Wired Network Connectivity | Gigabit Networking |
| Cooling System | Heat Pipes |
Memory Support | |
| Type | DDR2 |
| Maximum Speed | 1066 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 8 GB |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | No |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Coaxial |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| Firewire | 1 |
| Floppy | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express x16 |
| Slot 3 | PCI |
| Slot 4 | PCI |
| Slot 5 | PCI Express x4 |
| Slot 6 | PCI |
| Slot 7 | PCI Express x1 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |

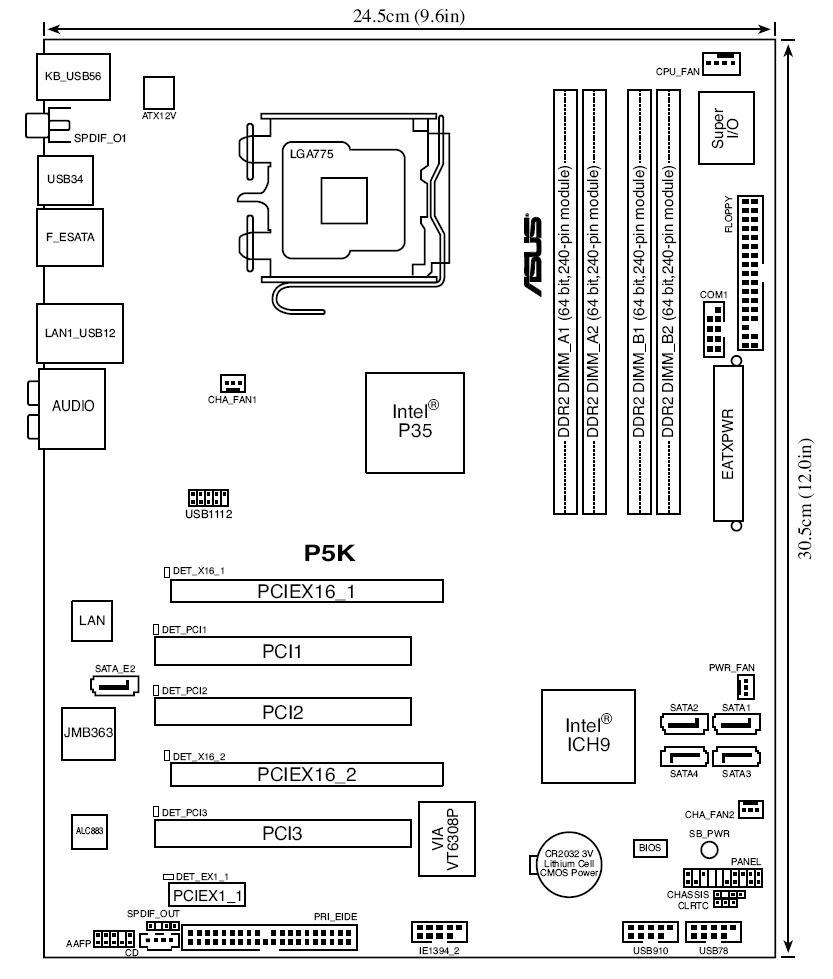

Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
Internal Connections
SATA2: 5
