Asus P5Q-E

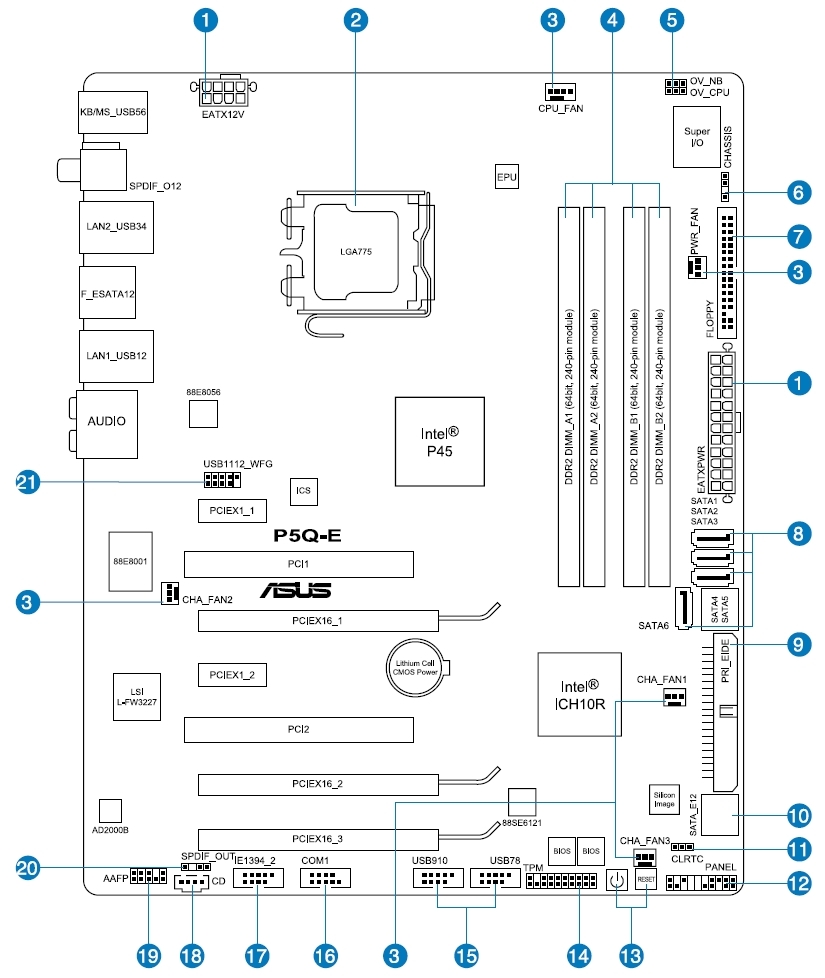

[ Rear Ports ][ Schematic ]

Asus P5Q-E Picture 11727Asus P5Q-E Picture 11748Asus P5Q-E Picture 11749

Note: Express Gate is not compatible with Windows Vista on this motherboard.

Model: Asus P5Q-E

Socket  775
CPU Compatibility  Core 2 Duo, Core 2 Quadro, Core 2 Extreme
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  P45/ICH10R
Front Side Bus  1600Mhz
Network Connectivity  Gigabit Networking
Cooling System  Heat Pipes
Memory Support
Type  DDR2
Maximum Speed  1200 MHz
Number of Slots  4
Maximum Size per Slot  4 GB
Maximum Amount Supported  16 GB
External Connections
USB 2.0  6
PS/2 Keyboard  Yes
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical and Coaxial
External SATA  1
LAN (RJ45)  2
Wireless Antenna Port  No
Firewire  1
Internal Connections
USB 2.0  2 (providing 4 ports)
Firewire  1
Floppy  1
IDE  2 Devices
Expansion Slots
Slot 1  PCI Express x1
Slot 2  PCI
Slot 3  PCI Express 2.0 x16
Slot 4  PCI Express x1
Slot 5  PCI
Slot 6  PCI Express 2.0 x8 in a x16 size
Slot 7  PCI Express x4 in a x16 size
Additional Information
SLI Compatible  No
Crossfire Compatible  Yes
RAID Support  0/1/5/10
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)

  • 8 phase power

Internal Connections
SATA2: 8

with the Asus P5Q-E.
