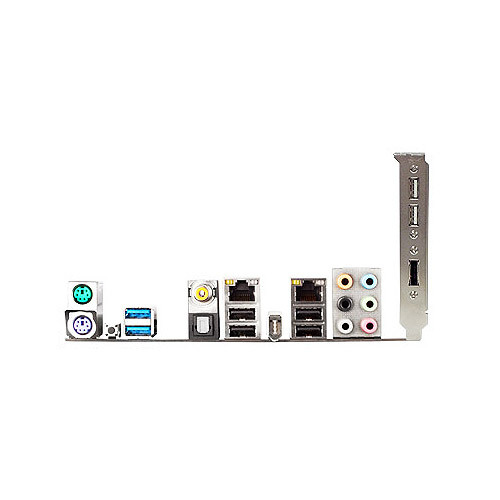

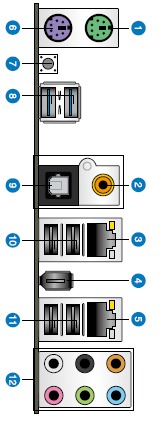

Asus P6X58D Premium Ports
PS/2 Mouse Port: Connection for a PS/2 mouse.
Coaxial S/PDIF Out: Digital audio output port compatible with coaxial S/PDIF cables / devices.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Firewire Port (IEEE 1394a): IEEE 1394a port, also known as Firewire A, is an older standard for high-speed device connectivity.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
PS/2 Keyboard Port: Connection for a PS/2 keyboard.
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

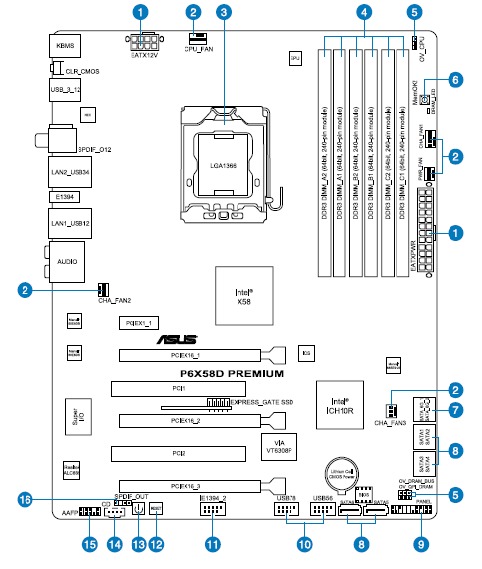

Asus P6X58D Premium Schematic

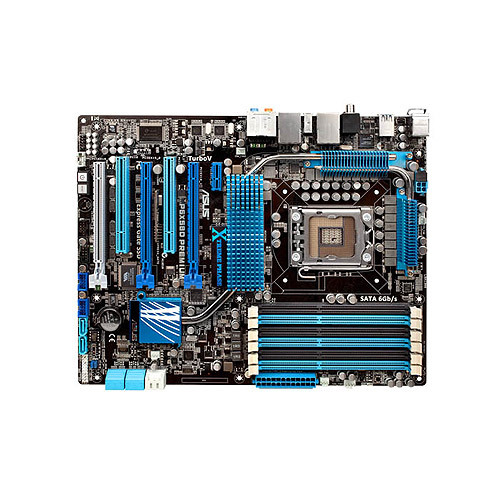

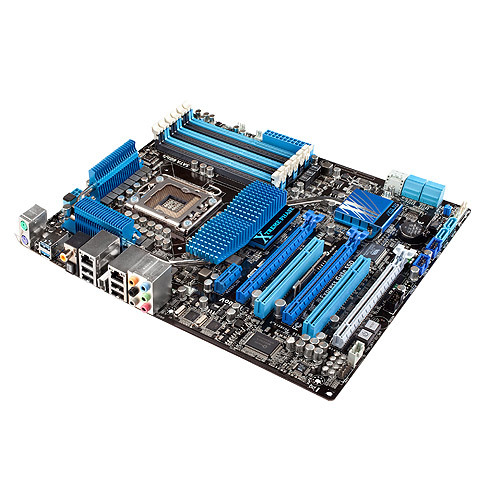

Model: Asus P6X58D Premium
Specifications
| Socket | 1366 |
| CPU Compatibility | Core i7 |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | X58 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Marvell 88E8056 |
| Audio Controller | Realtek ALC889 8-Channel High Definition Audio CODEC |
| Cooling System | Heat Pipes |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 6 |
| Maximum Size per Slot | 4 GB |
| Maximum Amount Supported | 24 GB |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Mouse | Yes |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical and Coaxial |
| LAN (RJ45) | 2 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| SATA II 3.0Gbps | 6 |
| SATA III 6.0Gbps | 2 |
| Firewire | 1 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 6 port - Intel ICH10R |
| SATA III 6.0Gbps Controller 1 | 2 port - Marvell 88SE9123 |
Expansion Slots | |
| Slot 1 | PCI Express x1 |
| Slot 2 | PCI Express 2.0 x16 |
| Slot 3 | PCI |
| Slot 4 | PCI Express x8 or x16 in a x16 size |
| Slot 5 | PCI |
| Slot 6 | PCI Express x1 or x8 in a x16 size |
| Slot 7 | Slot not available on this board |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/5/10 |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
3 x PCIe 2.0 x16 (at x16/x8/x8 or x16/x16/x1 mode)
