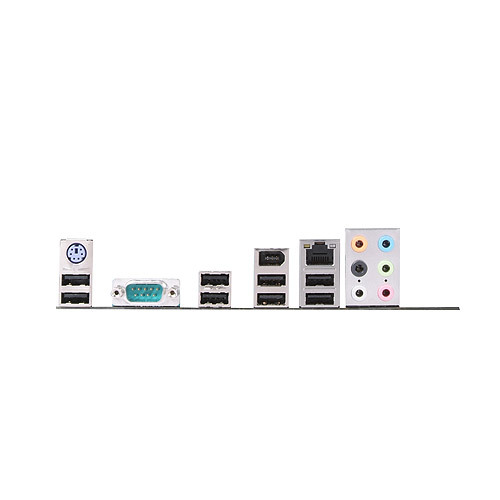

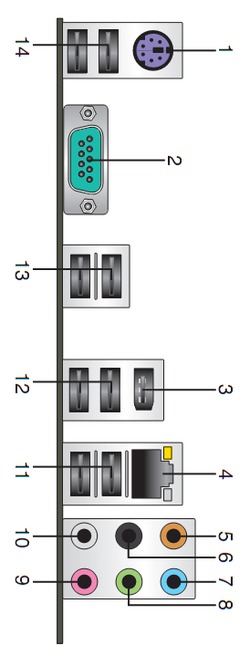

Asus P7P55-M Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
Firewire Port (IEEE 1394a): IEEE 1394a port, also known as Firewire A, is an older standard for high-speed device connectivity.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
Side Speakers: 3.5mm analog audio jack for output to side speakers (if using surround sound).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).

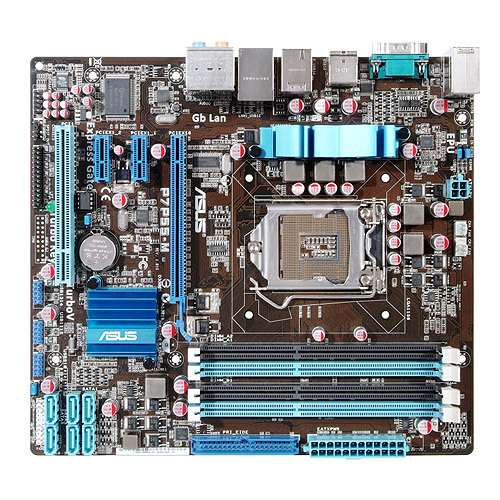

Asus P7P55-M Schematic
Model: Asus P7P55-M
Specifications
| Socket | 1156 |
| CPU Compatibility | Intel Core i5/i7 |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | P55 Express |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Realtek 8112L |
| Audio Controller | VIA VT1708S 8-Channel High Definition Audio CODEC |
| Cooling System | Heat Pipes |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 4 GB |
| Maximum Amount Supported | 16 GB |
External Connections | |
| USB 2.0 | 8 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | No |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 3 (providing 6 ports) |
| SATA II 3.0Gbps | 6 |
| IDE | 2 Devices |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 6 port Intel P55 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x16 |
| Slot 2 | PCI Express 2.0 x1 |
| Slot 3 | PCI Express 2.0 x1 |
| Slot 4 | PCI |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0,1,0+1,5,10 |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 218 mm (8.6 in) |
| Width | 244 mm (9.6 in) |
