Asus P8H67-M EVO

Motherboard

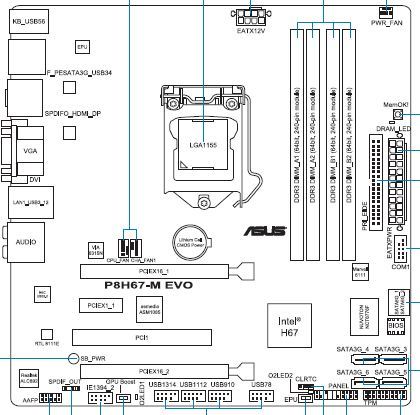

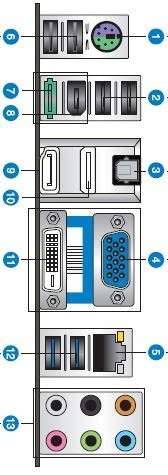

[ Rear Ports ][ Schematic ]

Asus P8H67-M EVO Picture 16504Asus P8H67-M EVO Picture 16505Asus P8H67-M EVO Picture 16531Asus P8H67-M EVO Picture 16532

Note: Please see our blog post regarding a recently discovered flaw with Sandy Bridge.

Model: Asus P8H67-M EVO

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel Core i3/i5/i7
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  H67 Express
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1333 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Maximum Shared Memory  1748 MB
Maximum Resolution  1920x1200
DVI  1
VGA  1
HDMI  1
DisplayPort  1
External Connections
USB 2.0  4
USB 3.2 Gen 1 (USB 3.0)  2
PS/2 Keyboard  Yes
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Firewire  1
Internal Connections
USB 2.0  4 (providing 8 ports)
IDE  2 Devices
Expansion Slots
Slot 1  PCI Express 2.0 x16
Slot 2  PCI Express x1
Slot 3  PCI
Slot 4  PCI Express x4 in a x16 size
Additional Information
RAID Support  0,1,5,10
Dimensions
Height  244 mm (9.6 in)
Width  244 mm (9.6 in)

Internal Connections
SATA2: 4
SATA 6.0Gbps: 2
