Asus P8P67-M Pro

Motherboard

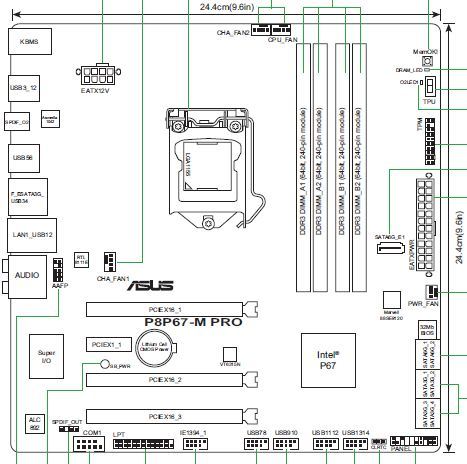

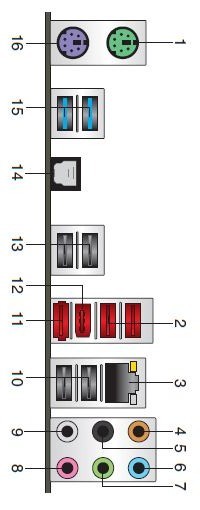

[ Rear Ports ][ Schematic ]

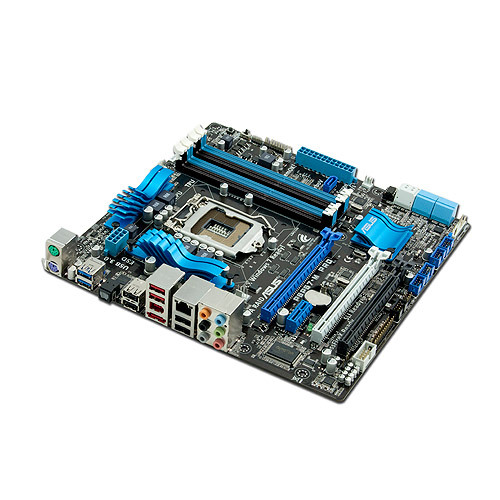

Asus P8P67-M Pro Picture 16520Asus P8P67-M Pro Picture 16524Asus P8P67-M Pro Picture 16522

Note: Please see our blog post regarding a recently discovered flaw with Sandy Bridge.

Model: Asus P8P67-M PRO

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel Core i3/i5/i7
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  P67 Express
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1333 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
External Connections
USB 2.0  6
USB 3.2 Gen 1 (USB 3.0)  2
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Firewire  1
Internal Connections
USB 2.0  4 (providing 8 ports)
Firewire  1
Expansion Slots
Slot 1  PCI Express 2.0 x16
Slot 2  PCI Express 2.0 x1
Slot 3  PCI Express 2.0 x16
Slot 4  PCI Express 2.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  No
Dimensions
Height  244 mm (9.6 in)
Width  244 mm (9.6 in)

Internal Connections
SATA2: 4
SATA 6.0Gbps: 3




with the Asus P8P67-M Pro.
