Asus P8P67 Pro REV 3.1

Motherboard

[ Rear Ports ][ Schematic ]

Asus P8P67 Pro REV 3.1 Picture 19194Asus P8P67 Pro REV 3.1 Picture 19193Asus P8P67 Pro REV 3.1 Picture 19195Asus P8P67 Pro REV 3.1 Picture 19192
Model: Asus P8P67 PRO (REV 3.1)

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel Core i3/i5/i7
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  P67 Express
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Network Controller  Intel 82579
Audio Controller  Realtek ALC 892 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB

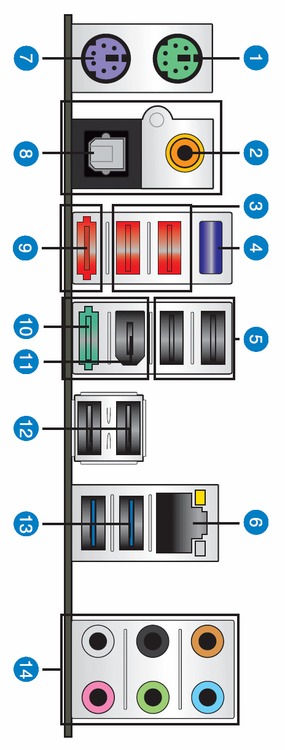

External Connections
USB 2.0  6
USB 3.0  2
Firewire  1
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical and Coaxial
External SATA  2
LAN (RJ45)  1
Internal Connections
USB 2.0  3 (providing 6 ports)
USB 3.0  1 (providing 2 ports)
SATA II 3.0Gbps  4
SATA III 6.0Gbps  4
Firewire  1
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel P67
SATA III 6.0Gbps Controller 1  2 port - Intel P67
SATA III 6.0Gbps Controller 2  2 port - Marvell 9120
Expansion Slots
Slot 1  PCI Express 2.0 x1
Slot 2  PCI Express 2.0 x16
Slot 3  PCI Express 2.0 x1
Slot 4  PCI
Slot 5  PCI Express 2.0 x8 in a x16 size
Slot 6  PCI
Slot 7  PCI Express 2.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  Yes (2.1)
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)

Installing any PCI-E device in the secondary PCI-E x16 slot automatically sets both the primary and secondary PCI-E slots to x8 speeds.




with the Asus P8P67 Pro REV 3.1.
