Asus P8Z77-M Pro

Motherboard

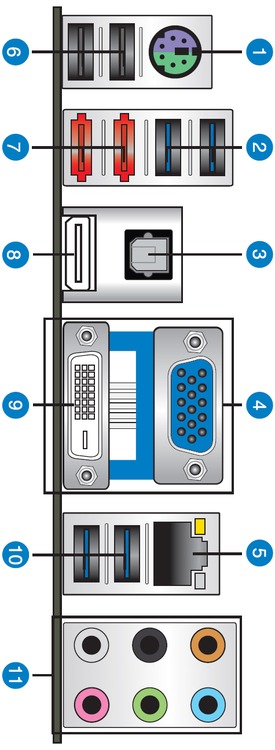

[ Rear Ports ][ Schematic ]

Asus P8Z77-M Pro Picture 19787Asus P8Z77-M Pro Picture 19788Asus P8Z77-M Pro Picture 20039Asus P8Z77-M Pro Picture 20040
Model: Asus P8Z77-M PRO

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel Socket 1155 for 3rd/2nd Generation Processors
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  Z77
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8111F
Audio Controller  Realtek ALC892 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Shared Memory  1696 MB
Maximum DVI Resolution   1920x1200
Maximum HDMI Resolution   1920x1200
DVI  1
VGA  1
HDMI  1
External Connections
USB 2.0  2
USB 3.2 Gen 1 (USB 3.0)  4
PS/2 Keyboard  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  2
LAN (RJ45)  1
Wireless Antenna Port  No
Internal Connections
USB 2.0  3 (providing 6 ports)
USB 3.2 Gen 1 (USB 3.0)  1
SATA II 3.0Gbps  4
SATA III 6.0Gbps  2
TPM (module sold separately)  1
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel Z77
SATA III 6.0Gbps Controller 1  2 port - Intel Z77
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express 2.0 x1
Slot 3  PCI Express 3.0 x16
Slot 4  PCI Express 2.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  No
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  244 mm (9.6 in)
Width  244 mm (9.6 in)

Features:
  • LucidLogix Virtu MVP Designed for Intel processor graphics and Windows 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. By default, this software is not installed but can be done so by special request.

-PCIe 3.0 speed is supported by Intel 3rd generation Core processors
-PCIe 3.0 x16 slots run at single x16 or dual x8




with the Asus P8Z77-M Pro.
