Asus P8Z77-V Deluxe

Motherboard

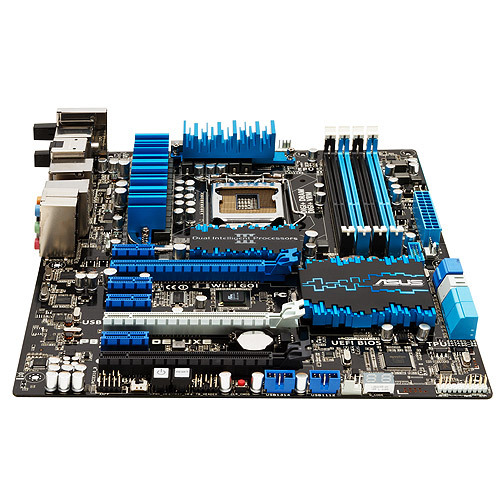

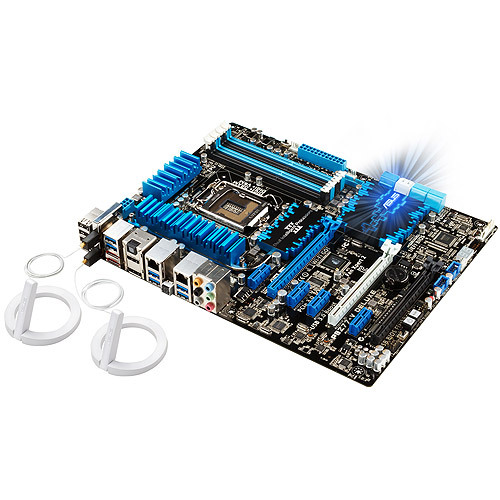

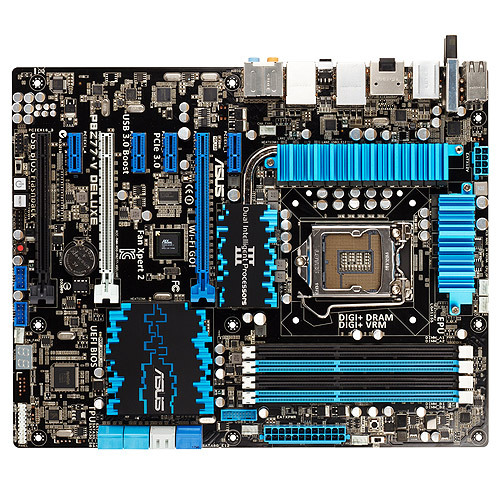

Asus P8Z77-V Deluxe Picture 19784Asus P8Z77-V Deluxe Picture 19785Asus P8Z77-V Deluxe Picture 19786
Model: Asus P8Z77-V DELUXE

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel Socket 1155 for 3rd/2nd Generation Processors
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  Z77
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual Gigabit Networking + 802.11 A/B/G/N
Network Controller  Intel 82579V, Realtek 8111F
Audio Controller  Realtek ALC898 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  Integrated Graphics
Maximum Shared Memory  1024 MB
Maximum Resolution  1920x1200
HDMI  1
DisplayPort  1
External Connections
USB 2.0  4
USB 3.2 Gen 1 (USB 3.0)  6
PS/2 Keyboard  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  2
LAN (RJ45)  2
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  1
SATA II 3.0Gbps  4
SATA III 6.0Gbps  4
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel Z77
SATA III 6.0Gbps Controller 1  2 port - Intel Z77
SATA III 6.0Gbps Controller 2  2 port - Marvell 9128
Expansion Slots
Slot 1  PCI Express 2.0 x1
Slot 2  PCI Express 3.0 x16
Slot 3  PCI Express 2.0 x1
Slot 4  PCI Express 2.0 x1
Slot 5  PCI Express 3.0 x16
Slot 6  PCI Express 2.0 x1
Slot 7  PCI Express 2.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  Yes (4.0)
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)

-PCIe 3.0 speed is supported by Intel 3rd generation Core processors
-PCIe x16 slots run at single x16, or dual x8

-Using the bottom PCIe slot disables the Marvell SATA 6Gb/s ports




with the Asus P8Z77-V Deluxe.
