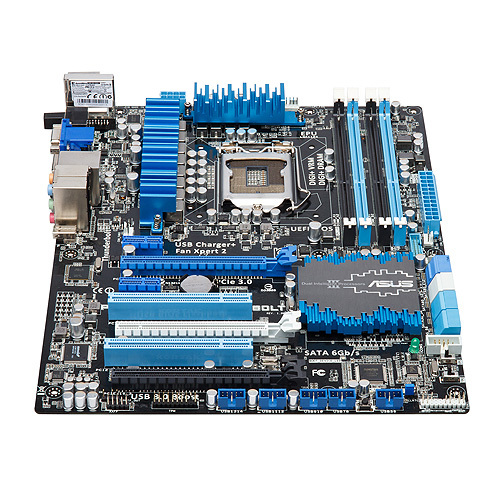

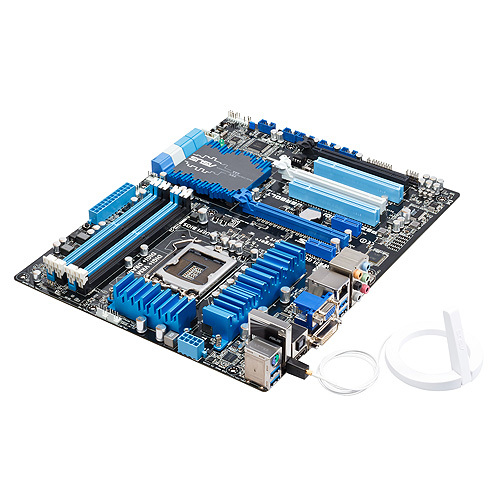

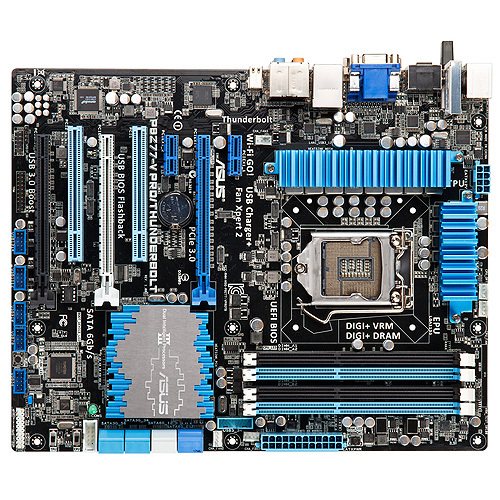

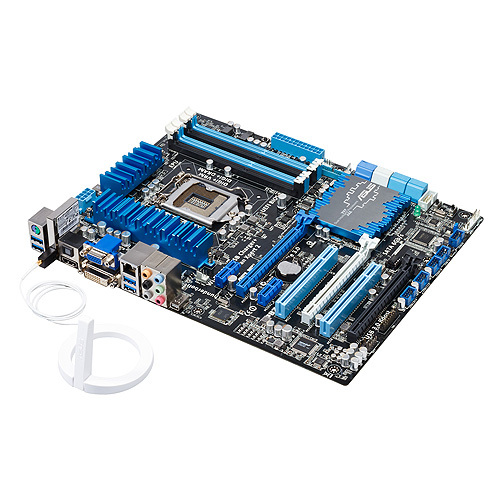

Model: Asus Asus P8Z77-V Pro/Thunderbolt
Specifications
| Socket | 1155 |
| CPU Compatibility | Intel Socket 1155 for 3rd/2nd Generation Processors |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | Z77 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Gigabit Networking + 802.11 B/G/N |
| Network Controller | Intel 82579V |
| Audio Controller | Realtek ALC892 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 1024 MB |
| Maximum Resolution | 1920x1200 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | 1 |
Internal Connections | |
| USB 2.0 | 5 (providing 10 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA II 3.0Gbps | 4 |
| SATA III 6.0Gbps | 4 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 4 port - Intel Z77 |
| SATA III 6.0Gbps Controller 1 | 2 port - Intel Z77 |
| SATA III 6.0Gbps Controller 2 | 2 port - ASMedia 1061 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x1 |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 3 | PCI Express 2.0 x1 |
| Slot 4 | PCI |
| Slot 5 | PCI Express 3.0 x16 |
| Slot 6 | PCI |
| Slot 7 | PCI Express 3.0 x16 |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
| Bluetooth | No |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
Features
- LucidLogix Virtu MVP Designed for Intel processor graphics and Windows 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. By default, this software is not installed but can be done so by special request.
-Includes a 2-port USB 2.0 and eSATA bracket. Depending on the system configuration, this bracket may or may not be installed
-PCIe 3.0 speed is supported by Intel 3rd generation Core processors
-PCIe x16 slots run at single x16/-/-, x8/x8/-, or x8/x8/x4
-Using the second PCIe x1 slot (x1_2) disables the ASMedia SATA 6Gb/s ports.
-Using the Thunderbolt port on auto (x2) disables the PCIe x1_2 slot. Running at x2 disables the ASMedia SATA 6Gb/s ports. Running at x4 disables the ASMedia SATA 6Gb/s ports, USB 3.0 E12 (top external) ports, and bottom PCIe x1 slot (X1_2)
