Asus P9D-M Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
iKVM LAN Port (RJ-45): RJ-45 plug for remote management of computer via iKVM (Keyboard/Video/Mouse over IP).
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
+5V_LED: This LED lights up when the Power-on button is pressed and the system is on.
LOCLED1: Light on server modules that can be activated remotely to find a specific module within a chassis.
Power Switch: On/off button for the device.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).

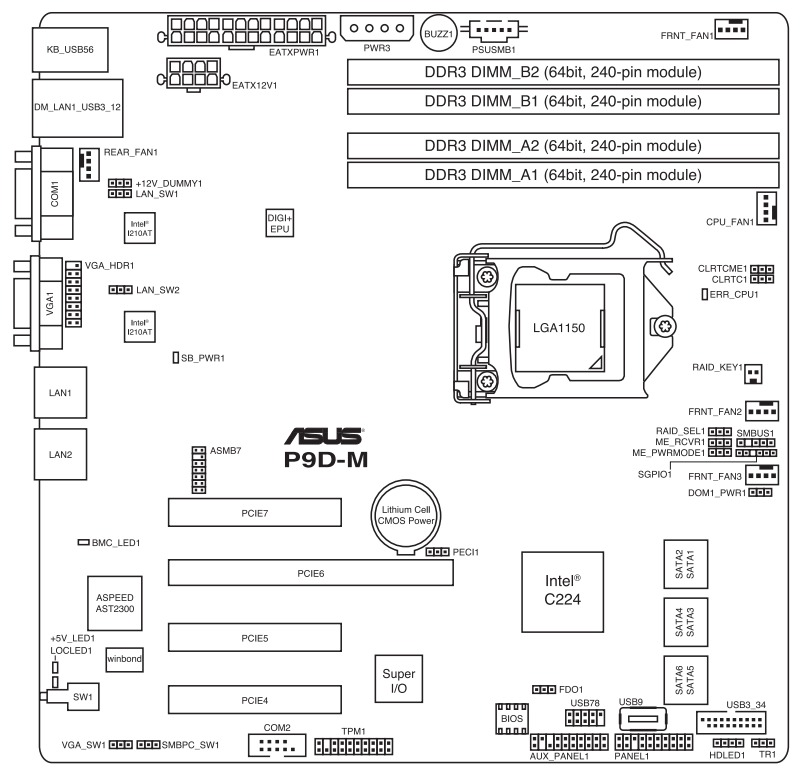

Asus P9D-M Schematic

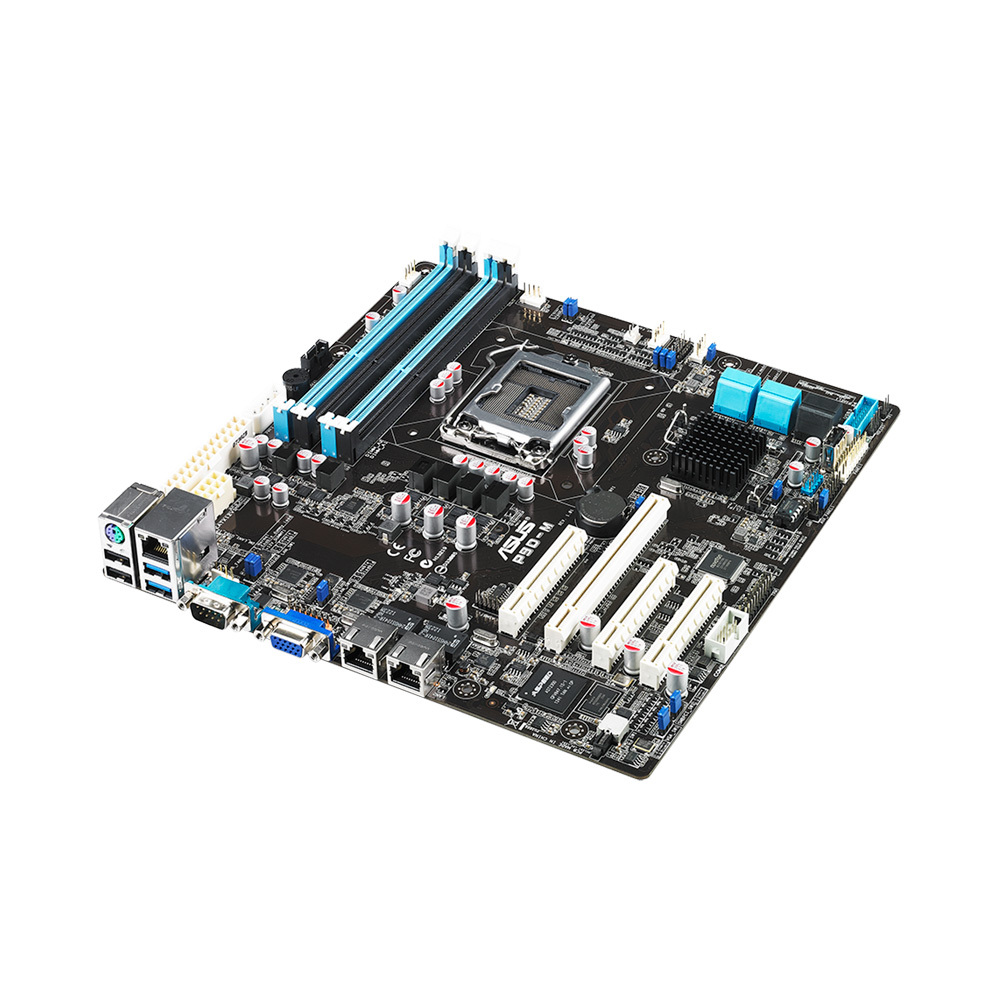

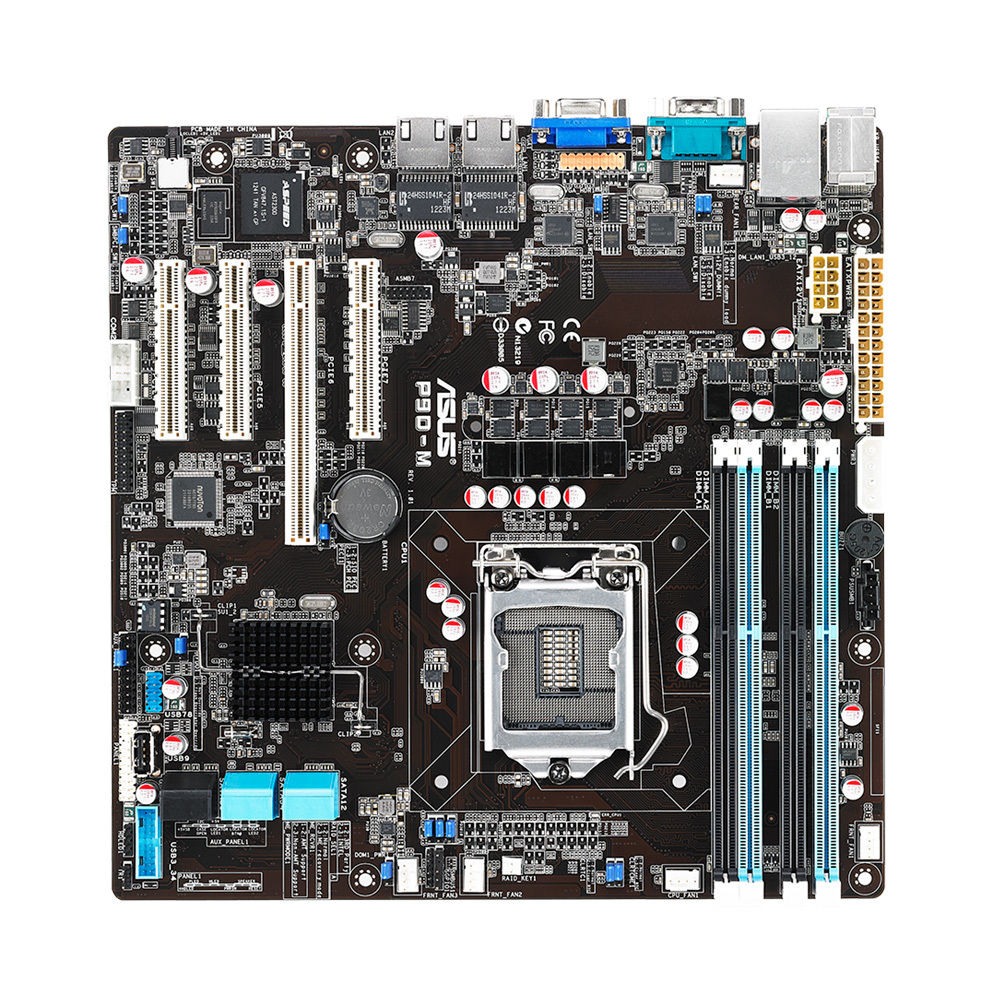

Model: Asus P9D-M
Specifications
| Socket | 1150 |
| CPU Compatibility | Intel Xeon E3-1200 v3 processors, Intel 4th Gen Core i3 processors, Intel Pentium/Celeron processors |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | C224 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel I210AT |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 ECC |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Processor Type | Aspeed AST2300 |
| Onboard Memory | 32 MB |
| VGA | 1 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Keyboard | Yes |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA II 3.0Gbps | 2 |
| SATA III 6.0Gbps | 4 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 2 port - Intel C224 |
| SATA III 6.0Gbps Controller 1 | 4 port - Intel C224 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x8 |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 3 | PCI Express 3.0 x8 |
| Slot 4 | PCI Express 3.0 x8 |
Additional Information | |
| RAID Support | 0,1,5,10 |
BIOS Features | |
| EZ Flash | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
-Supports the Asus ASMB7-iKVM remote management module.
-As this board has Aspeed graphics, any graphics integrated into the CPU is unused.
