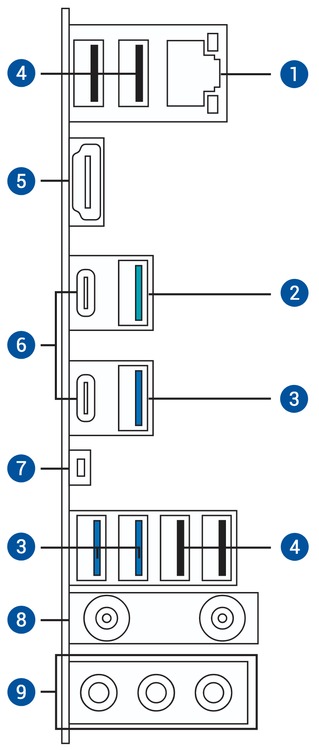

Asus PRIME X870-P WIFI Ports
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
USB 4.0 Port(s): USB 4.0 is capable of transfer speeds of up to 40 Gbps and optionally supports video out.
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

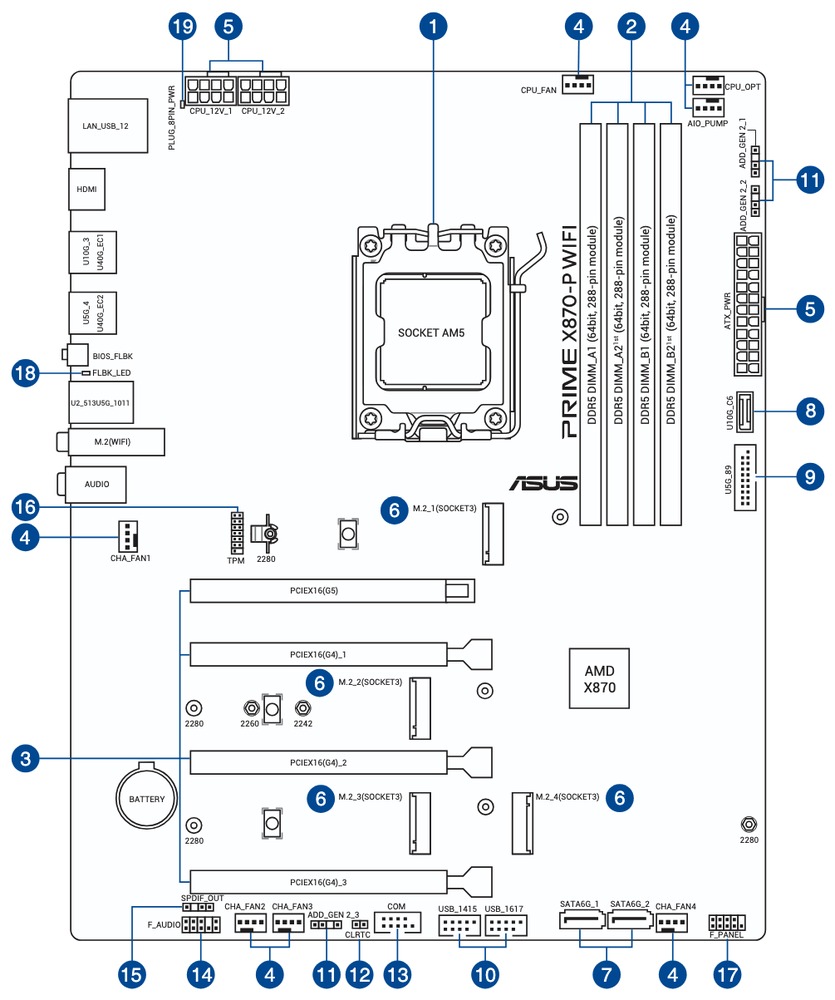

Asus PRIME X870-P WIFI Schematic
For external connectivity, the X870-P has ten USB ports across a mix of USB 2.0, 3.2, and 4.0. It also offers wired 2.5Gb Ethernet and WiFi 7, alongside standard audio input and output jacks. There is an HDMI output from the CPU's onboard graphics, and video can be output over USB 4.0 as well.
Internally, this board has four DDR5 memory slots, four M.2 slots, and two SATA III ports. There are also several PCIe expansion slots, but some of them share resources with the M.2 - so maxing out all of them at the same time is not possible. Please work with your sales consultant to ensure the configuration you want will work properly, and make sure to consider any additional drives or cards you plan to add.
Model: Asus Asus PRIME X870-P WIFI
Specifications
| Socket | AM5 |
| CPU Compatibility | AMD Ryzen |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | X870 |
| Wired Network Connectivity | 2.5G Networking |
| Wireless Network Connectivity | WiFi 7 |
| Network Controller | Realtek 2.5GbE |
| Audio Controller | Realtek 7.1 |
| Cooling System | Passive Heatsink |
| Color | Black |
| Windows Support | Windows 11 |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 64 GB |
| Maximum Amount Supported | 256 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Maximum HDMI Resolution | 4096x2160 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| USB | 4.0 |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 3 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 4 | 2 |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 2 |
| M.2 Connector | 4 |
| M.2 Support | 1x 80mm (PCIe 5.0), 2x 42-80mm (PCIe 4.0), 1x 80mm (PCIe 3.0 x2) |
| Maximum M.2 Length | 80 mm (3.1 in) |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD X870 |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 4.0 x1 in a x16 size |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 4.0 x1 in a x16 size |
| Slot 6 | Slot not available on this board |
| Slot 7 | PCI Express 4.0 x1 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Bluetooth | Yes (5.4) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.44 kg (3.2 lbs) |
