The ASUS Pro WS TRX50-SAGE WIFI-SI is a CEB-size motherboard for AMD's Threadripper 7000 Series processors. It has four RAM slots supporting DDR5 Registered ECC memory, three PCI-Express 5.0 x16 slots, and two PCI-Express 4.0 slots. That layout allows for a wide configuration of expansion cards, including dual video card setups. Because of that capability, we generally use this board in full-size tower or rackmount cases that have sufficient space and cooling for dual GPUs.

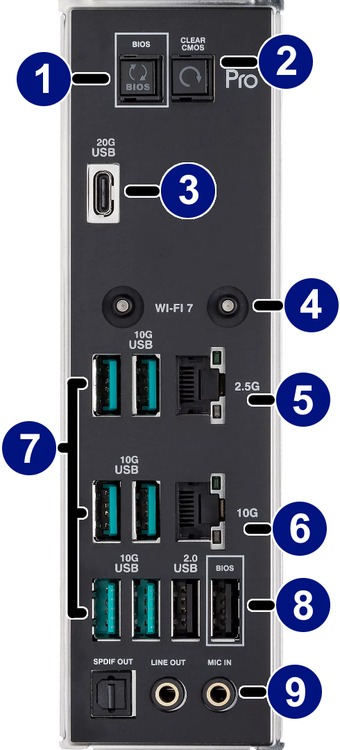

A wide range of connectivity is provided as well: seven USB 3.2 ports (including one Type C), 10Gb and 2.5Gb Ethernet ports, WiFi 7, Bluetooth 5.2, and both stereo analog and digital audio output. Internally it has four SATA ports, three M.2 connectors, and one SlimSAS supporting a flexible array of storage options.
A wide range of connectivity is provided as well: seven USB 3.2 ports (including one Type C), 10Gb and 2.5Gb Ethernet ports, WiFi 7, Bluetooth 5.2, and both stereo analog and digital audio output. Internally it has four SATA ports, three M.2 connectors, and one SlimSAS supporting a flexible array of storage options.
Model: Asus Pro WS TRX50-SAGE WIFI
Specifications
Socket | sTR5 |
CPU Compatibility | Threadripper 7000 |
Form Factor | CEB |
Chipset Manufacturer | AMD |
Chipset | TRX50 |
Network Connectivity | 10G + 2.5G Networking + WiFi 7 |
Network Controller | Marvell AQtion, Intel I226-LM, Intel AX211 |
Audio Controller | Onboard Realtek S1220P HD Audio |
Cooling System | Passive Heatsink |
Color | Black |
Memory Support | |
Type | DDR5 ECC Registered |
Maximum Speed | 5200 MHz |
Number of Slots | 4 |
Maximum Size per Slot | 256 GB |
Maximum Amount Supported | 1024 GB |
External Connections | |
USB 2.0 | 2 |
USB 3.2 Gen 2 (USB 3.1) | 6 |
USB 3.2 Gen 2x2 Type C | 1 |
Audio Out | Stereo |
Audio In | Line-In/Microphone |
S/PDIF | Optical |
LAN (RJ45) | 2 |
Wireless Antenna Port | Yes |
BIOS Flashback | Yes |
Internal Connections | |
USB 2.0 | 2 (providing 4 ports) |
USB 3.2 Gen 1 (USB 3.0) | 1 |
USB 3.2 Gen 2x2 Type C | 1 |
SATA III 6.0Gbps | 4 |
M.2 Connector | 3 |
M.2 Support | 2x 42-80mm PCIe 5.0, 1x 80mm PCIe 4.0 |
Serial (Com) | 1 |
TPM (module sold separately) | 1 |
Compatible TPM | Asus TPM-SPI |
Notes: | 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device |
SATA Controllers | |
SATA III 6.0Gbps Controller 1 | 4x Via TRX50 Chipset |
Expansion Slots | |
Slot 1 | PCI Express 5.0 x16 |
Slot 2 | Slot not available on this board |
Slot 3 | PCI Express 5.0 x16 |
Slot 4 | Slot not available on this board |
Slot 5 | PCI Express 5.0 x8 in a x16 size |
Slot 6 | PCI Express 4.0 x4 in a x16 size |
Slot 7 | PCI Express 4.0 x16 |
Additional Information | |
SLI Compatible | No |
Crossfire Compatible | No |
RAID Support | 0/1/5/10 |
Bluetooth | Yes (5.2) |
Dual GPU Slot Spacing | 4-Slot |
Integrated IO Shield | Yes |
BIOS Features | |
UEFI BIOS | Yes |
EZ Flash | Yes |
OC Profiles | Yes |
Dimensions | |
Height | 310 mm (12.2 in) |
Width | 330 mm (13.0 in) |
Depth | 50 mm (2.0 in) |
Net Weight | 2.259 kg (5.0 lbs) |
