Asus ProArt X570-Creator WiFi

Motherboard

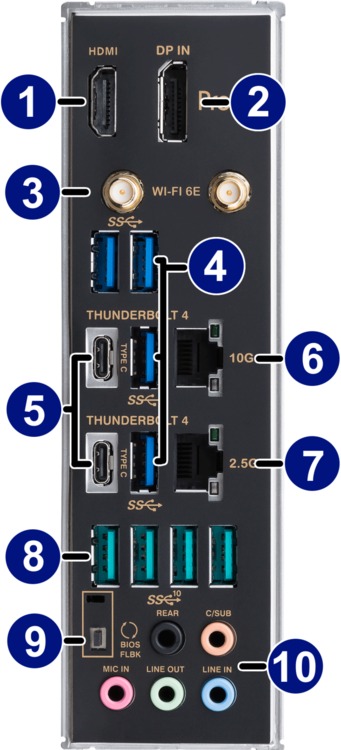

[ Rear Ports ][ Schematic ]

Asus ProArt X570-Creator WiFi Picture 70667Asus ProArt X570-Creator WiFi Picture 70668Asus ProArt X570-Creator WiFi Picture 70669Asus ProArt X570-Creator WiFi Picture 70666Asus ProArt X570-Creator WiFi Picture 70665
The Asus ProArt X570-Creator WiFi is an ATX motherboard for AMD's 3rd generation Ryzen processors. It offers a great combination of features, I/O ports, and build quality.

In terms of connectivity, this board is well equipped with eight USB 3.2 ports, two Thunderbolt 4 (which two are Type C and can be used as USB ports as well), 2.5 and 10Gbps LAN ports, WiFi 6e, Bluetooth 5.2, and surround sound audio outputs. Because this motherboard supports Thunderbolt, it includes a DisplayPort input on the I/O panel which allows pass-through from the video card to a TB connected monitor. It also has an HDMI connection, but that only functions when a CPU with integrated graphics is used - and we don't offer those in our systems here at Puget, as that feature is limited to the lowest-end processors in AMD's line.

Internally this motherboard has four DDR4 memory slots, supporting up to 128GB of RAM. For storage, there are six SATA III ports plus three M.2 slots - one of which shares lanes with the PCI-Express slots. Speaking of expansion slots, there are three PCIe 4.0 slots are available to handle a variety of expansion card configurations.
Model: Asus ProArt X570-Creator WiFi

Specifications:
spacer
Socket  AM4
CPU Compatibility  AMD Ryzen
Form Factor  ATX
Chipset Manufacturer  AMD
Chipset  X570
Network Connectivity  10G + 2.5G Networking + WiFi 6e
Network Controller  Intel I225-V + Marvell AQC113CS + Intel AX201
Audio Controller  Onboard Realtek S1220A HD Audio
Cooling System  Heatsink
Number of Fans  1
Color  Black
Memory Support
Type  DDR4 ECC
Maximum Speed  3200 MHz
Number of Slots  4
Maximum Size per Slot  32 GB
Maximum Amount Supported  128 GB
Onboard Video
Chipset Manufacturer  AMD
Maximum HDMI Resolution   4096x2160
HDMI  1
HDMI Version  2.0
Notes:  DisplayPort IN For Thunderbolt Video, HDMI Out Requires Supported CPU
External Connections
USB 3.2 Gen 1 (USB 3.0)  4
USB 3.2 Gen 2 (USB 3.1)  4
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
LAN (RJ45)  2
Wireless Antenna Port  Yes
Thunderbolt Ports  2
Thunderbolt Version  4
Internal Connections
USB 2.0  3 (providing 6 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Gen 2 Type C  1
SATA III 6.0Gbps  6
M.2 Connector  3
M.2 Support  2x 42-110mm NVMe (Gen4) + SATA, 1x 42-80mm NVMe (Gen4)
TPM (module sold separately)  1
Compatible TPM  Asus TPM-SPI
SATA Controllers
SATA III 6.0Gbps Controller 1  AMD X570
Expansion Slots
Slot 1  Slot not available on this board
Slot 2  PCI Express 4.0 x16
Slot 3  Slot not available on this board
Slot 4  Slot not available on this board
Slot 5  PCI Express 4.0 x8 in a x16 size
Slot 6  Slot not available on this board
Slot 7  PCI Express 4.0 x4 in a x16 size
Additional Information
SLI Compatible  No
RAID Support  0,1,10
Bluetooth  Yes (5.2)
Dual GPU Slot Spacing  3-Slot
Integrated IO Shield  Yes
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)
Net Weight  1.579 kg (3.5 lbs)
