The Asus ProArt X870E-Creator WiFi is an ATX motherboard for AMD's new AM5 socket and Ryzen 9000 Series processors. It offers a great combination of features, I/O ports, and build quality.
In terms of connectivity, this board is very well equipped with eleven total USB ports (including two USB 4.0), 2.5 and 10Gbps LAN ports, WiFi 7, Bluetooth 5.4, and surround sound audio outputs. Because the supported Ryzen CPUs have onboard graphics, there is also an HDMI connection and DisplayPort output via the pair of USB 4.0 ports.
Internally this motherboard has four DDR5 memory slots, supporting up to 192GB of RAM. For storage, there are four SATA III ports plus four M.2 slots - one of which shares lanes with the PCI-Express slots. Speaking of expansion slots, there are two PCIe 5.0 slots, operating in one x16 or two x8 lane modes, for GPUs or other high-speed expansion cards. There is also a single PCIe 4.0 slot, with just x4 lanes, for less bandwidth-hungry cards.
In terms of connectivity, this board is very well equipped with eleven total USB ports (including two USB 4.0), 2.5 and 10Gbps LAN ports, WiFi 7, Bluetooth 5.4, and surround sound audio outputs. Because the supported Ryzen CPUs have onboard graphics, there is also an HDMI connection and DisplayPort output via the pair of USB 4.0 ports.
Internally this motherboard has four DDR5 memory slots, supporting up to 192GB of RAM. For storage, there are four SATA III ports plus four M.2 slots - one of which shares lanes with the PCI-Express slots. Speaking of expansion slots, there are two PCIe 5.0 slots, operating in one x16 or two x8 lane modes, for GPUs or other high-speed expansion cards. There is also a single PCIe 4.0 slot, with just x4 lanes, for less bandwidth-hungry cards.
Model: Asus Asus ProArt X870E-Creator WiFi
Specifications
Socket | AM5 |
CPU Compatibility | AMD Ryzen |
Form Factor | ATX |
Chipset Manufacturer | AMD |
Chipset | X870 |
Network Connectivity | 10G + 2.5G Networking + WiFi 7 |
Network Controller | Marvell AQC113CS + Intel I225-V + Mediatek MT7925 |
Audio Controller | Onboard Realtek S1220A HD Audio |
Cooling System | Passive Heatsink |
Color | Black |
Memory Support | |
Type | DDR5 |
Maximum Speed | 5200 MHz |
Number of Slots | 4 |
Maximum Size per Slot | 48 GB |
Maximum Amount Supported | 192 GB |
Onboard Video | |
Chipset Manufacturer | AMD |
Maximum HDMI Resolution | 4096x2160 |
HDMI | 1 |
HDMI Version | 2.0 |
DisplayPort | 1 |
USB | 4.0 |
Notes: | Display Port In - usable with dedicated GPU and USB4 display |

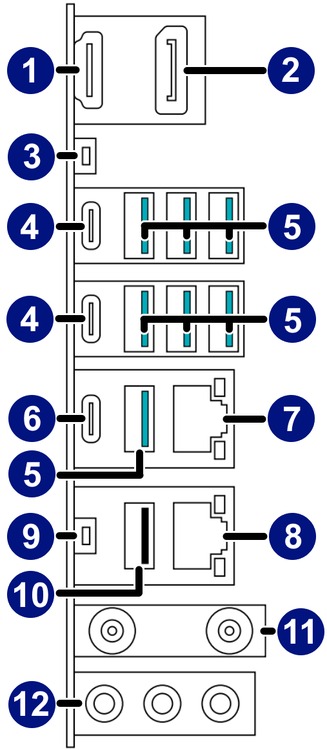

External Connections | |
USB 2.0 | 1 |
USB 3.2 Gen 2 (USB 3.1) | 7 |
USB 3.2 Gen 2x2 Type C | 1 |
USB 4 | 2 |
Audio Out | Stereo |
Audio In | Line-In/Microphone |
LAN (RJ45) | 2 |
Wireless Antenna Port | Yes |
BIOS Flashback | Yes |
Internal Connections | |
USB 2.0 | 3 (providing 6 ports) |
USB 3.2 Gen 1 (USB 3.0) | 1 |
USB 3.2 Gen 2x2 Type C | 1 |
SATA III 6.0Gbps | 4 |
M.2 Connector | 4 |
M.2 Support | 2x 42-80mm (PCIe 5.0), 2x 42-80mm (PCIe 4.0) |
SATA Controllers | |
SATA III 6.0Gbps Controller 1 | AMD X870 |
Expansion Slots | |
Slot 1 | Slot not available on this board |
Slot 2 | PCI Express 5.0 x16 |
Slot 3 | Slot not available on this board |
Slot 4 | Slot not available on this board |
Slot 5 | PCI Express 5.0 x8 in a x16 size |
Slot 6 | Slot not available on this board |
Slot 7 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
SLI Compatible | No |
RAID Support | 0,1,5,10 |
Bluetooth | Yes (5.4) |
Dual GPU Slot Spacing | 3-Slot |
Integrated IO Shield | Yes |
BIOS Features | |
UEFI BIOS | Yes |
EZ Flash | Yes |
OC Profiles | Yes |
Dimensions | |
Height | 305 mm (12.0 in) |
Width | 244 mm (9.6 in) |
Net Weight | 1.579 kg (3.5 lbs) |
