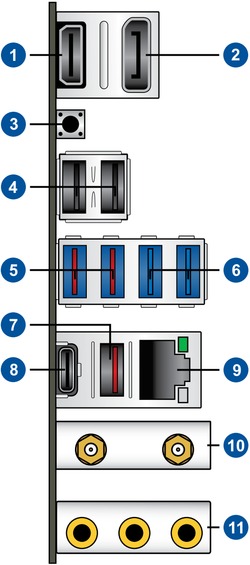

Asus ROG STRIX Z490-I Ports
HDMI 2.0a Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160) at 60hz.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

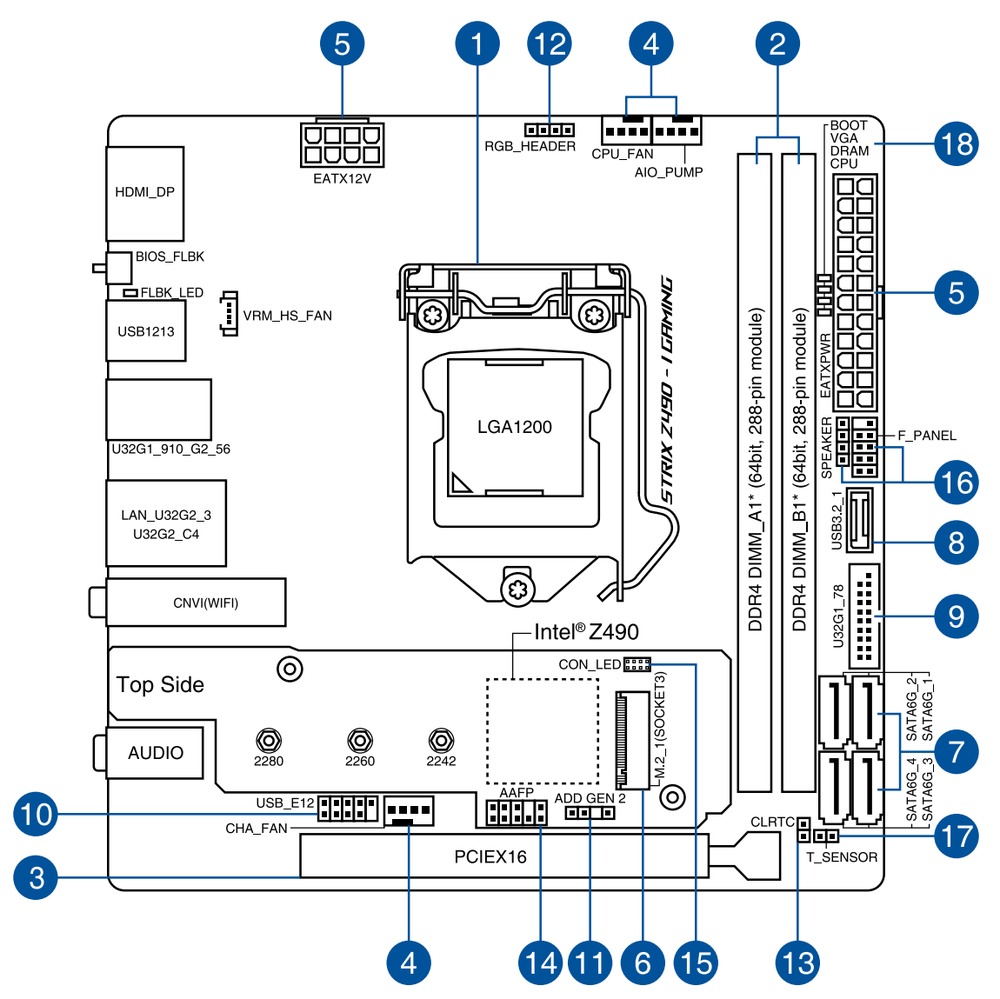

Asus ROG STRIX Z490-I Schematic

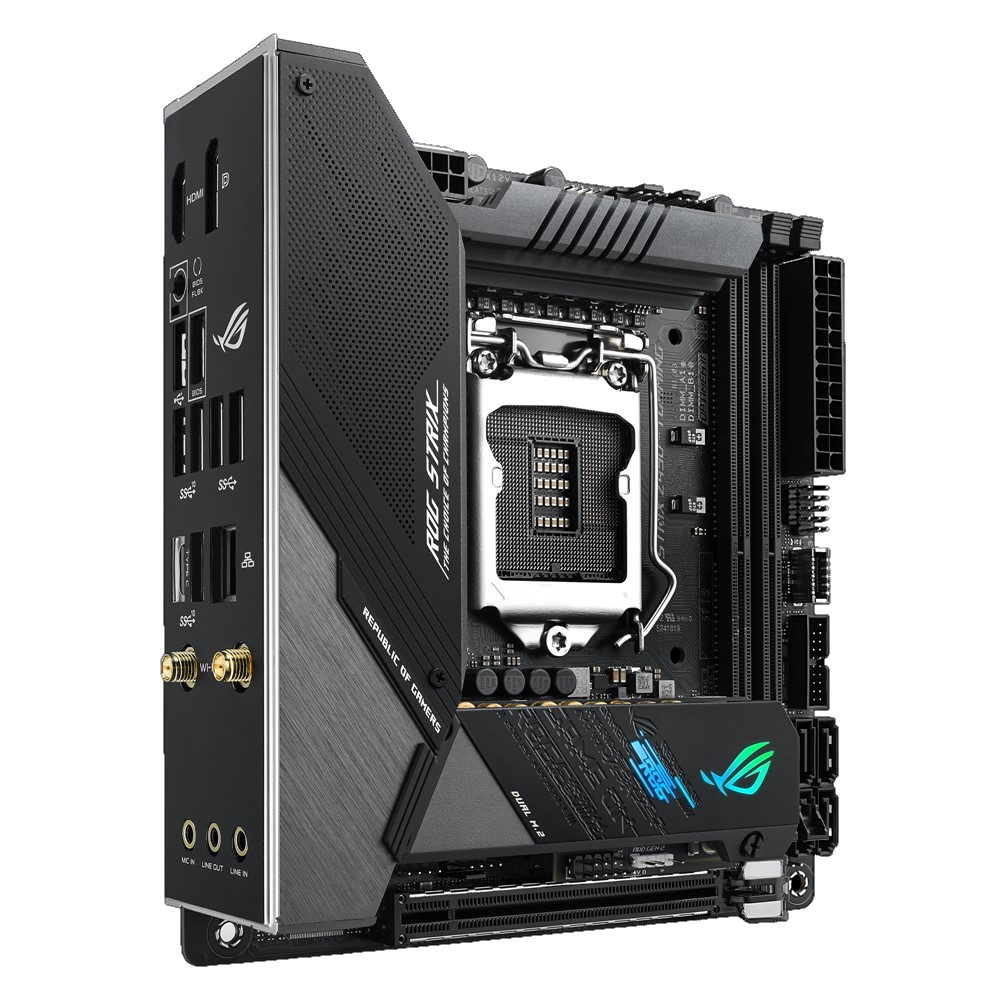

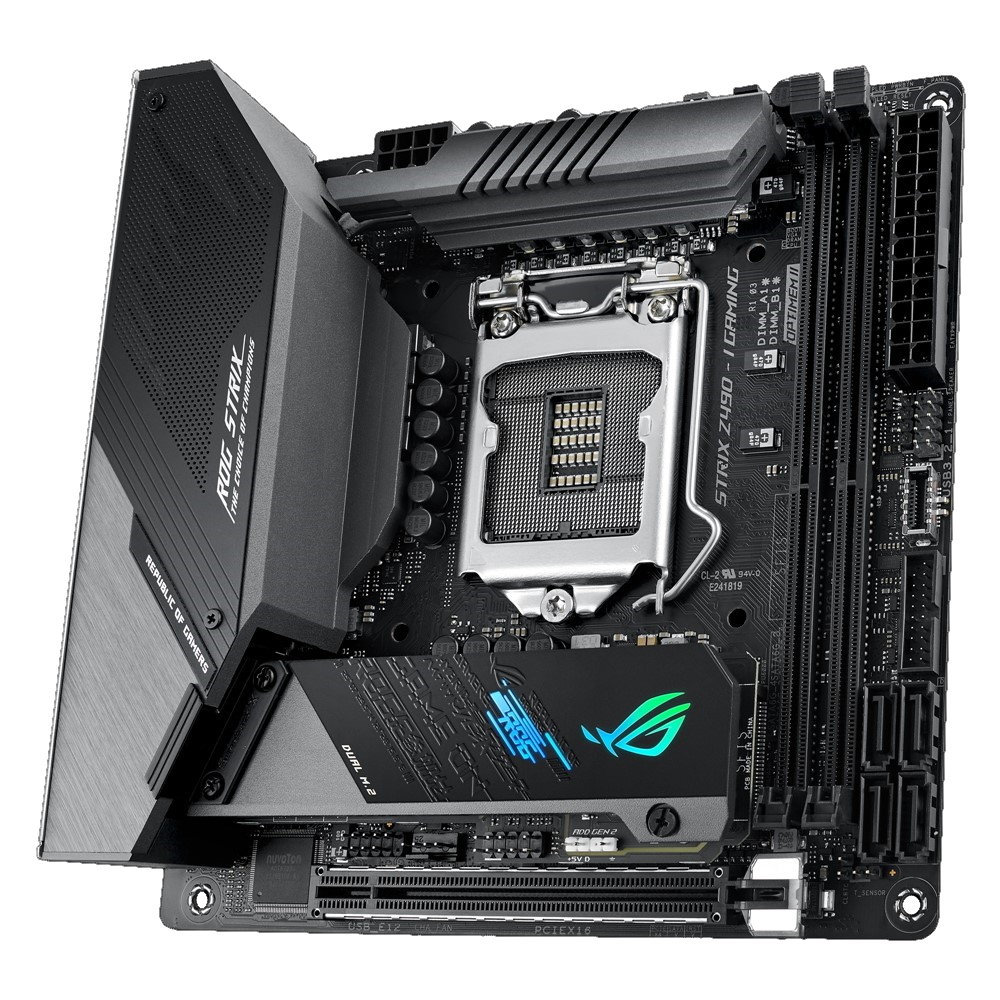

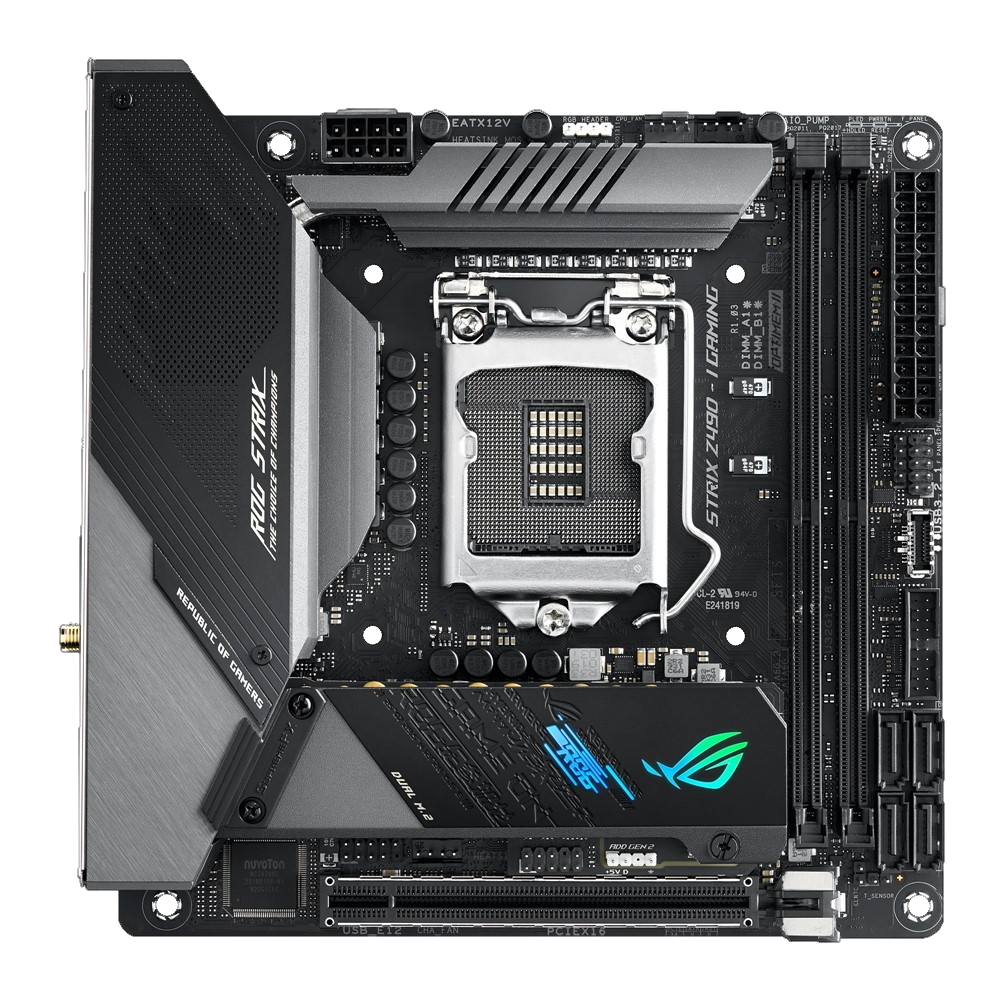

Model: Asus Asus ROG STRIX Z490-I GAMING
Specifications
| Socket | 1200 |
| CPU Compatibility | Comet Lake-S |
| Form Factor | Mini-ITX |
| Chipset Manufacturer | Intel |
| Chipset | Z490 |
| Front Side Bus | DMI 3.0 |
| Network Connectivity | 2.5G Networking + WiFi 6 |
| Network Controller | Intel I225-V + Intel AX201 |
| Audio Controller | Onboard Realtek S1220A HD Audio |
| Cooling System | Heatsink and Fan |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 2933 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 64 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Dependant |
| Maximum Resolution | 4096 x 2304 |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 4096x2304 |
| HDMI | 1 |
| HDMI Version | 2.0a |
| DisplayPort | 1 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 3 |
| USB 3.2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 2 |
| M.2 Support | 2x 42-80mm NVMe & SATA |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel Z490 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/10/5 |
| Bluetooth | Yes (5.0) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 170 mm (6.7 in) |
| Width | 170 mm (6.7 in) |
